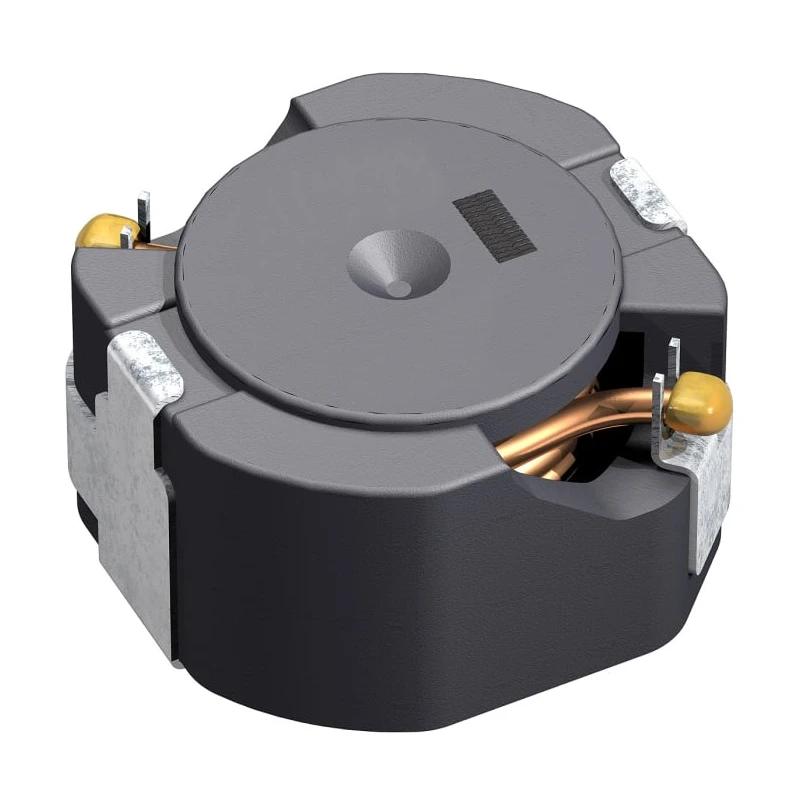

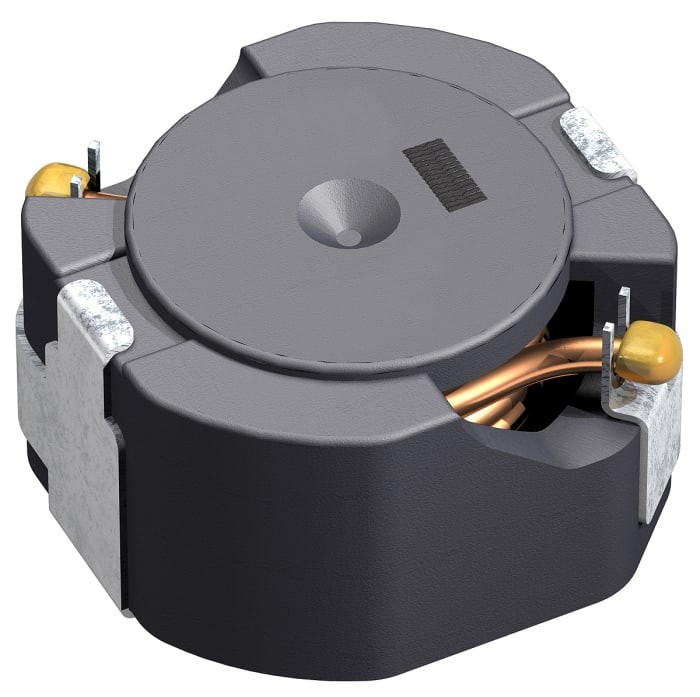

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±30% 4.1 A Idc 7045 Case CLF7045NIT-4R7N-D
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 4.5mm |
| Length | 7.4mm |
| Model | CLF7045NIT-4R7N-D |
| Depth | 7mm |
| Packaging | Tape & Reel |
| Series | CLF-NI-D |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 7045 |
| Maximum DC Current | 4.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 18mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a ferrite core for enhanced magnetic shielding.
- Operates reliably from -55°C to 150°C.
- Compliant with automotive standard AEC-Q200 for rugged applications.
- Compact 7045 case with dimensions 7.4 mm length, 7 mm depth, and 4.5 mm height.
- RoHS compliant and suitable for lead-free solder processes.
- Wirewound construction molded for durability and stability.
- Maximum DC resistance of 18 mΩ ensures efficient current conduction.
- Packaged in tape and reel format for automated assembly.
Product Description
TDK CLF7045NIT-4R7N-D is a shielded wirewound surface mount inductor featuring a ferrite core that provides superior magnetic shielding. This inductor has an inductance of 4.7 μH with a tolerance of ±30%, supporting a maximum DC current of 4.1 A, making it suitable for demanding power electronics applications.
The inductor is designed to operate efficiently within a wide temperature range from -55°C up to 150°C, supporting thermal stability in automotive and industrial environments. Its compact 7045 case measures 7.4 mm in length, 7 mm in depth, and 4.5 mm in height, optimized for space-saving mounting on PCBs.
With an automotive qualification of AEC-Q200, the CLF7045NIT-4R7N-D is ideal for use in critical automotive systems including ABS, engine control modules, electronic power steering, meters, and headlights. The wirewound construction is molded for enhanced mechanical strength and consistent inductance values. Additionally, the component is RoHS compliant and compatible with lead-free soldering processes, supporting environmentally friendly manufacturing practices.
The maximum DC resistance is 18 milliohms, ensuring minimal power loss and high efficiency in circuits. The device comes with a 2-pin solder termination style and is supplied in tape and reel packaging, facilitating automated assembly processes in volume manufacturing.
Manufactured in Japan, this high-quality inductor meets stringent standards for reliability and performance in electronic components. Ferrite core provides excellent shielding to reduce electromagnetic interference. Wide operating temperature range from -55°C to 150°C.
AEC-Q200 qualified for automotive application suitability. Compact 7045 package size for space-constrained designs. Wirewound and molded construction for mechanical durability. RoHS compliant and lead-free solder compatible.
Low DC resistance ensures efficient power delivery. Tape and reel packaging supports high-volume production. 2-pin solder termination for surface mount assembly. Made in Japan guaranteeing consistent quality.
This Surface Mount Inductor is well suited for industrial, automotive, electronic manufacturing, and power supply applications requiring reliable high-current inductance components. Explore more TDK electronics components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this surface mount inductor is 4.7 μH with a tolerance of ±30%.
This model can handle a maximum DC current of 4.1 A.
The dimensions of the CLF7045NIT-4R7N-D are 7.4 mm in length, 7 mm in depth, and 4.5 mm in height.
The operating temperature range for this inductor is from -55°C to 150°C.
This inductor uses a ferrite core, which provides enhanced magnetic shielding.
Yes, this inductor is compliant with the automotive standard AEC-Q200, making it suitable for automotive applications.
The maximum DC resistance of this inductor is 18 mΩ, ensuring efficient current conduction.
This model features a 2-pin solder termination style for surface mount assembly.
The inductor is packaged in tape and reel format, facilitating automated assembly processes.
The inductor is constructed using a wirewound design, which is molded for enhanced mechanical strength.
Yes, this component is RoHS compliant and suitable for lead-free solder processes.
This inductor is suitable for applications in industrial, automotive, electronic manufacturing, and power supply systems requiring reliable high-current inductance.
