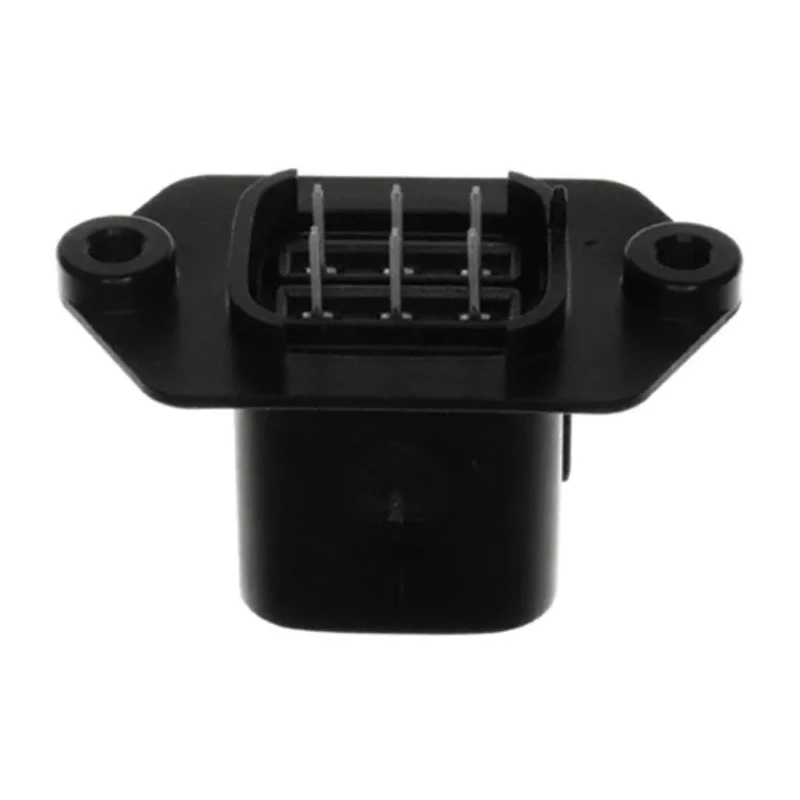

Molex MX150L Series Straight Through Hole PCB Header 6 Contacts 5.84 mm Pitch 2 Row Shrouded MX150L
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Straight |
| Current | 18A |
| Model | MX150L |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | MX150L |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 5.84mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
Key Features
- This PCB header supports up to 18 amps current capacity ensuring reliable power transmission.
- The connector uses a straight orientation through-hole mount with copper alloy contacts plated with tin.
- Operates within a temperature range of -40°C to 125°C suitable for harsh environments.
- The contact tail pin length is 3.3 mm providing secure solder termination on PCBs.
- It is IP67 rated as part of the sealed MX150L connector system for environmental protection.
- Designed for automotive, industrial control, video surveillance, outdoor lighting, and machine tool applications.
- The 2-row, 6-contact layout with 5.84 mm pitch enables compact PCB design integration.
- This connector system includes integral locking latch and supports 14-16 and 18-22 AWG wire sizes.
Product Description
Molex MX150L Series Straight Through Hole PCB Header, model MX150L, features a 6-contact configuration with 5.84 mm pitch arranged in 2 rows. This shrouded, wire-to-board connector is designed for reliable performance in industrial, automotive, and commercial electronic applications.
Constructed with copper alloy contacts plated with tin and a straight through-hole mount type, the connector supports up to 18 amps current and operates in extreme temperature conditions from -40°C to 125°C. It offers a contact tail pin length of 3.3 mm for stable solder termination on printed circuit boards.
The MX150L sealed connector system includes integral locking latches, ensuring secure connections in demanding environments with an IP67 rating according to IEC standards. The rugged design makes it suitable for automotive, industrial control, video surveillance, outdoor lighting, and machine tool applications where durability and environmental sealing are critical.
The product is part of Molex’s MX150L series known for robust wire-to-board connectors that facilitate compact and efficient PCB layouts with a 5.84 mm pitch and 2-row configuration.
This PCB Header supports up to 18 amps current capacity ensuring reliable power transmission. The connector uses a straight orientation through-hole mount with copper alloy contacts plated with tin. Operates within a temperature range of -40°C to 125°C suitable for harsh environments.
The contact tail pin length is 3.3 mm providing secure solder termination on PCBs. It is IP67 rated as part of the sealed MX150L connector system for environmental protection. Designed for automotive, industrial control, video surveillance, outdoor lighting, and machine tool applications.
The 2-row, 6-contact layout with 5.84 mm pitch enables compact PCB design integration. This connector system includes integral locking latch and supports 14-16 and 18-22 AWG wire sizes. Explore Molex MX150L connectors and other electronic components on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of up to 18 amps, ensuring reliable power transmission.
It operates within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
This connector features a 6-contact configuration arranged in 2 rows.
The pitch size for this model is 5.84 mm, allowing for compact PCB design integration.
It uses a straight through-hole mount type for installation on printed circuit boards.
The contact tail pin length is 3.3 mm, providing secure solder termination on PCBs.
The contacts are made of copper alloy and are plated with tin for enhanced conductivity.
Yes, it is IP67 rated, providing environmental protection against dust and water ingress.
This model supports wire sizes of 14-16 AWG and 18-22 AWG.
It is designed for automotive, industrial control, video surveillance, outdoor lighting, and machine tool applications.
This connector is part of a wire-to-board connector system, featuring integral locking latches for secure connections.
The maximum voltage rating for this connector is 600V.
