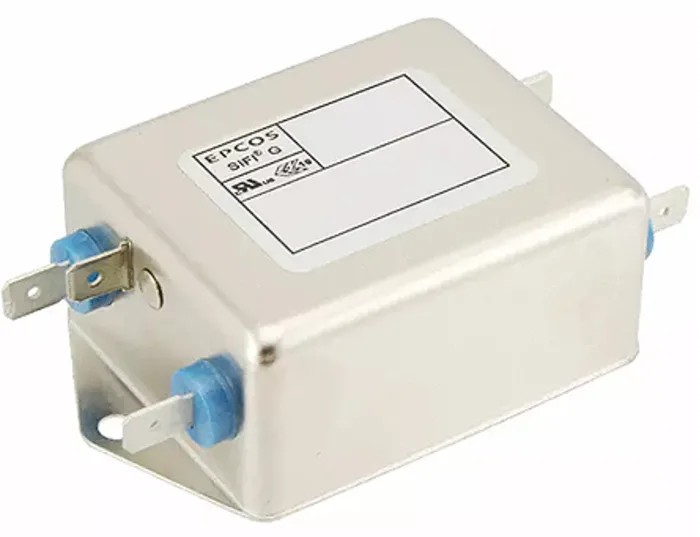

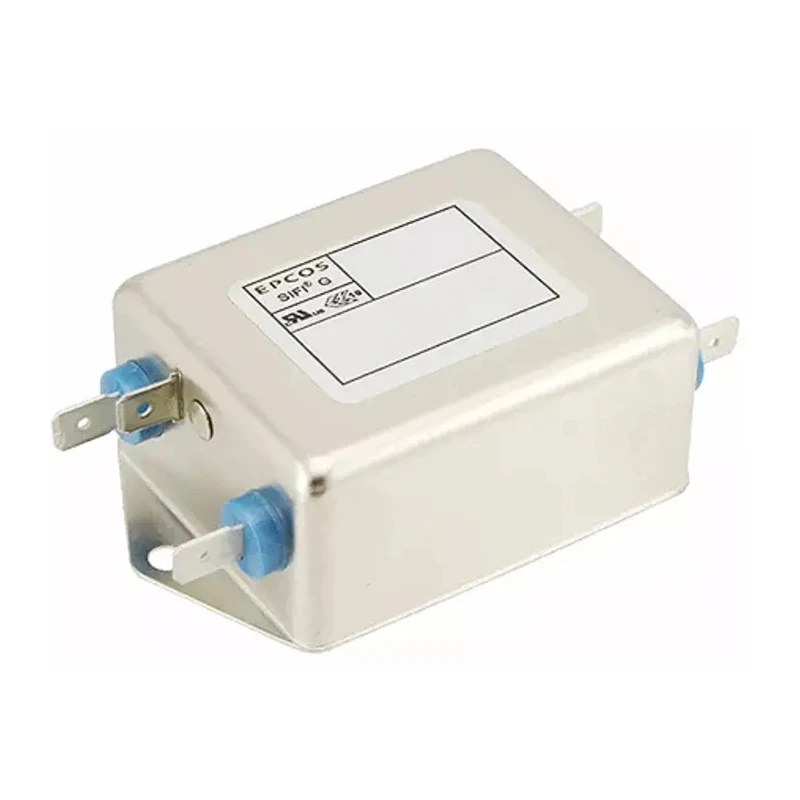

TDK Chassis Mount EMC Filter Lug 1 Phase 3 A 250V ac/dc 50Hz 60Hz B84112G0000M030

Free Delivery in India | Lowest Global Shipping Charges

TDK Chassis Mount EMC Filter Lug 1 Phase 3 A 250V ac/dc 50Hz 60Hz B84112G0000M030



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	29mm
Length	63mm
Model	B84112G0000M030
Depth	51mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84112G
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	2μF
Minimum Operating Temperature	-25°C
Maximum Current	3A
Number of Phases	1
Leakage Current	0mA
Maximum Voltage	250V ac/dc
Inductance	2mH
Standards/Approvals	UL1283
Termination Style	Lug

Key Features

Compact design for easy installation on chassis mounts.
Rated maximum current of 3 amperes for reliable performance.
Operates with 250V AC/DC voltage for versatile usage.
Operating frequency of 50 Hz and 60 Hz suitable for global standards.
Termination via lug style for secure electrical connections.
Single-phase operation with one stage filtering capability.
Includes 2 µF capacitance and 2 mH inductance for effective noise suppression.
Temperature range from -25°C to 100°C for robust industrial environments.

Product Description

TDK B84112G0000M030 is a compact and efficient chassis mount EMC Filter designed for single-phase electrical systems. Rated for 3 A maximum current and 250V AC/DC voltage, this power line filter operates reliably at both 50 Hz and 60 Hz frequencies. It features a lug termination style ensuring a secure and simple connection, making it suitable for various industrial electronics applications.

The B84112G series includes a metal case enclosure providing mechanical robustness and enhanced insertion loss performance owing to its SIFI-G design. Equipped with a 2 µF capacitance and 2 mH inductance, the filter effectively suppresses electromagnetic interference, which is essential in switch-mode power supplies, telecom systems, data systems, DC applications, and medical equipment models.

Operable in temperatures ranging from -25°C up to 100°C, the filter ensures stable performance in challenging industrial environments. The single-stage, single-phase configuration makes this filter versatile across many electronic components and power connector applications where EMC compliance is critical.

UL1283 certification further validates this product's adherence to electrical safety standards, making it a reliable choice for engineers and system designers seeking robust line filtering for sensitive electronics and industrial equipment.

Compact and easy to install chassis mount design. Designed for single-phase 3 A current handling at 250V AC/DC. Operates efficiently at 50 Hz and 60 Hz frequencies. Metal casing offers durability and enhanced insertion loss.

Ideal for industrial electronics, telecom, power supplies, and medical equipment. Wide operating temperature range of -25°C to 100°C supports harsh environments. Single-stage EMI filtering ensures effective noise reduction.

Compliance with UL1283 standards for safety and performance.
