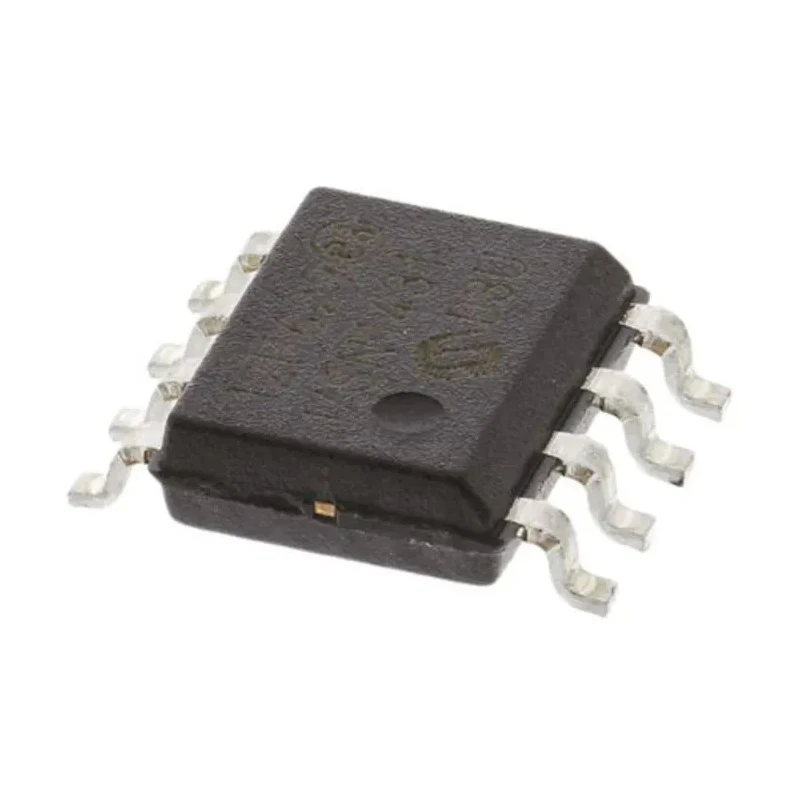

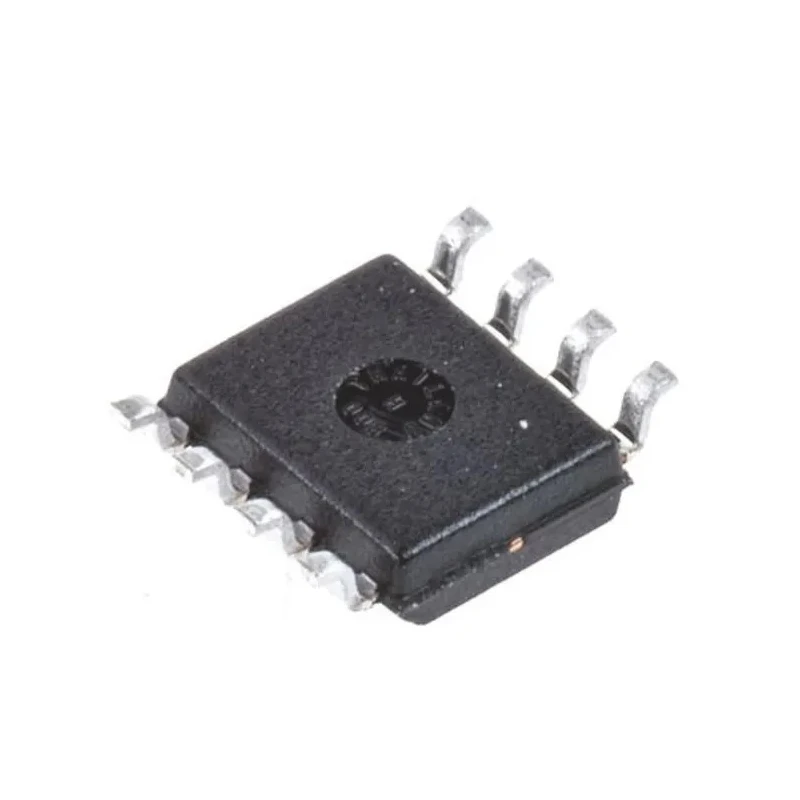

ams OSRAM Magnetic Hall Effect Sensor AS5601-ASOM 12-bit On-Axis Rotary Position, 5.5V, 2048 ppr Digital Signal

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM Magnetic Hall Effect Sensor AS5601-ASOM 12-bit On-Axis Rotary Position, 5.5V, 2048 ppr Digital Signal

Name: ams OSRAM Magnetic Hall Effect Sensor AS5601-ASOM 12-bit On-Axis Rotary Position, 5.5V, 2048 ppr Digital Signal
Brand: ams OSRAM
SKU: 138284
Price: 3.16 USD
Availability: InStock



Category Motion Control Sensors Brand ams OSRAM Condition New

Specifications

Country of Origin	India
Brand	ams OSRAM
Model	AS5601-ASOM
Mount Type	Surface Mount
Series	AS5601-ASOM
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Switching Frequency	15.6kHz
Pulses per Revolution	2048ppr
Maximum Supply Voltage	5.5V
Encoder Technology	Magnetic
Output Signal Type	Digital

Key Features

Contactless angle measurement ensures durability and reliability.
User-programmable zero position and configuration for custom applications.
Incremental quadrature output configurable from 8 to 2048 pulses per revolution.
Push button output detects sudden air gap changes for added functionality.
High switching frequency of 15.6 kHz supports fast response requirements.
Operating temperature range from -40°C to 125°C ensures wide industrial usability.
Surface mount design enables easy PCB integration.
Automatic magnet detection and low-power mode enhance efficiency.

Product Description

ams OSRAM AS5601-ASOM is a magnetic Hall Effect Sensor designed for precise rotary position measurement, featuring a 12-bit resolution and 2048 pulses per revolution digital output signal at a maximum supply voltage of 5.5V. This sensor employs contactless encoder technology, offering exceptional reliability by measuring the absolute angle of diametrically magnetised on-axis magnets.

The device supports user-programmable zero positions and device configuration, allowing flexible adaptation to various applications. Its incremental quadrature output is configurable between 8 and 2048 pulses per revolution, making it versatile for different control systems.

Equipped with a push button output, the sensor can detect sudden changes in the air gap, enhancing its monitoring capabilities. Designed to operate over a wide temperature range from -40°C to 125°C, it withstands harsh industrial environments effectively.

The AS5601-ASOM comes in a surface mount package for seamless integration into printed circuit boards. It features automatic magnet detection and powers down into a low-power mode when inactive, supporting energy-efficient designs.

This sensor is ideal for industrial automation, motion control, robotics, and instrumentation where precise rotary position feedback is critical. The high switching frequency of 15.6 kHz ensures timely signal processing for dynamic systems.

Contactless angle measurement insensitive to dust and dirt. Simple user-programmable zero position and device configuration. Incremental quadrature output configurable up to 2048 pulses per revolution. Push button output for sudden air gap change detection.

High-resolution 12-bit digital absolute angle output over I²C interface. Automatic entry into low-power mode for energy conservation. Operating temperature range from -40°C to 125°C for industrial suitability. Surface mount type for easy PCB assembly.

Switching frequency of 15.6 kHz supports high-speed applications. Explore the full range of sensors at EnvMart, designed to enhance your industrial and automation projects with precision and reliability.
