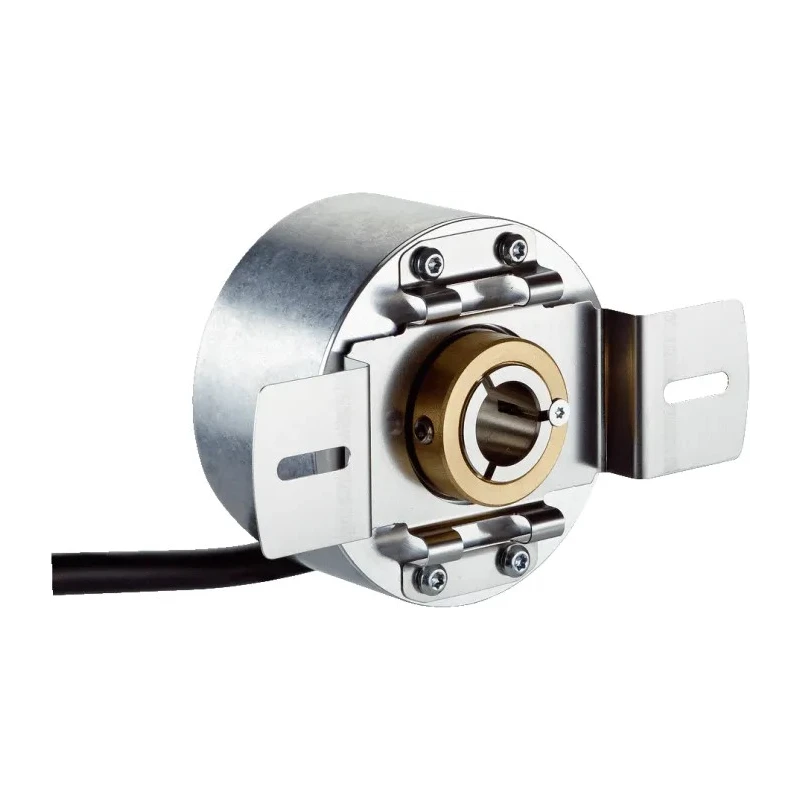

SICK DBS60E-TJFK04096 Core Series Incremental Encoder, 4096 PPR, 30V, TTL/HTL Output, Hollow Shaft 15.87mm DBS60

SICK DBS60E-TJFK04096 Core Series incremental encoder is engineered for high-performance motion control applications. Featuring a rugged design and IP65 protection, this encoder delivers accurate rotary position and speed feedback for factory and logistics automation systems.

The encoder uses incremental technology, providing 4096 pulses per revolution to ensure high-resolution measurement. Its hollow shaft design (diameter 15.87 mm) allows easy mounting onto drive shafts, supporting diverse installation scenarios including asynchronous motors, elevators, packaging machines, and conveyor systems.

The DBS60E-TJFK04096 model is compatible with both TTL and HTL signal outputs, making it suitable for interfacing with various control systems. Operates on supply voltages up to 30V and provides a stable output at switching frequencies up to 300 kHz. With compact 58 mm housing and 41.8 mm depth, the encoder saves space without compromising performance.

Reliable in harsh environments, it works from -30°C up to 85°C and is compliant with EN 61000-6-2 and EN 61000-6-3 standards. The insulated hollow shaft and rugged bearing arrangement extend operational life by preventing damage from shaft temperatures and currents.

Supports both TTL and HTL output signal types for flexible integration. Hollow shaft design with 15.87 mm diameter enables convenient mounting on drive shafts. IP65 enclosure rating ensures robust operation in demanding industrial environments.

Operates reliably in temperatures from -30°C to 85°C for wide application use. Maximum speed up to 9000 rpm and switching frequency of 300 kHz for fast response. Compact design with 58 mm diameter and 41.8 mm depth. Meets EN 61000-6-2 and EN 61000-6-3 standards for electronic compliance.

Pulses Per Revolution: 4096 PPR for high-resolution feedback. Ideal for measuring position, speed, and distance in factory automation and logistics.

This encoder is particularly suited for speed and position monitoring, measuring conveyor speed, PCB height detection, and position determination in transfer systems. Choose SICK DBS60E-TJFK04096 for industrial reliability and engineering performance in motion control sensors.
