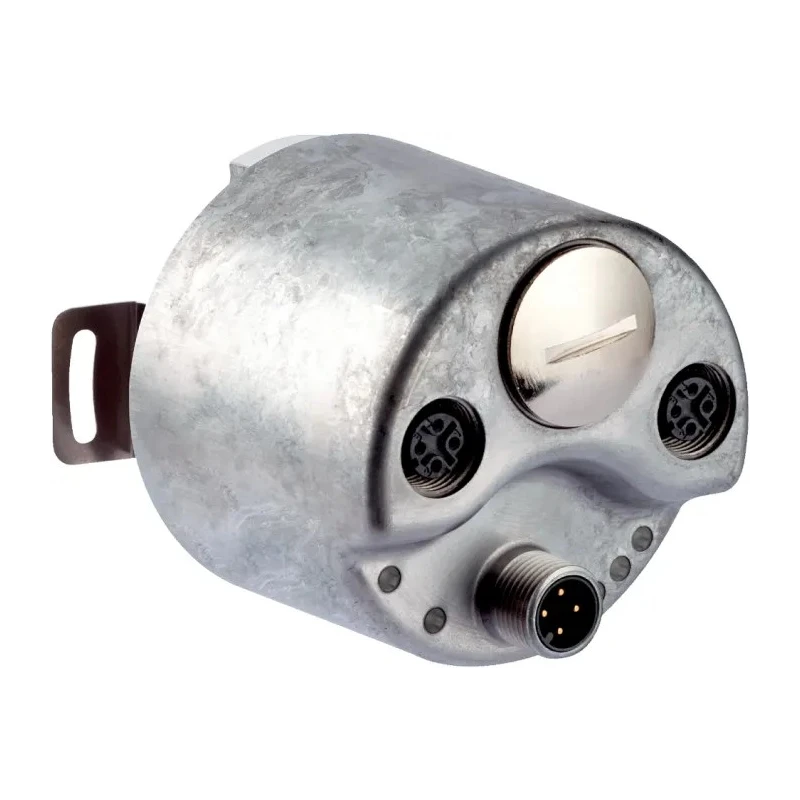

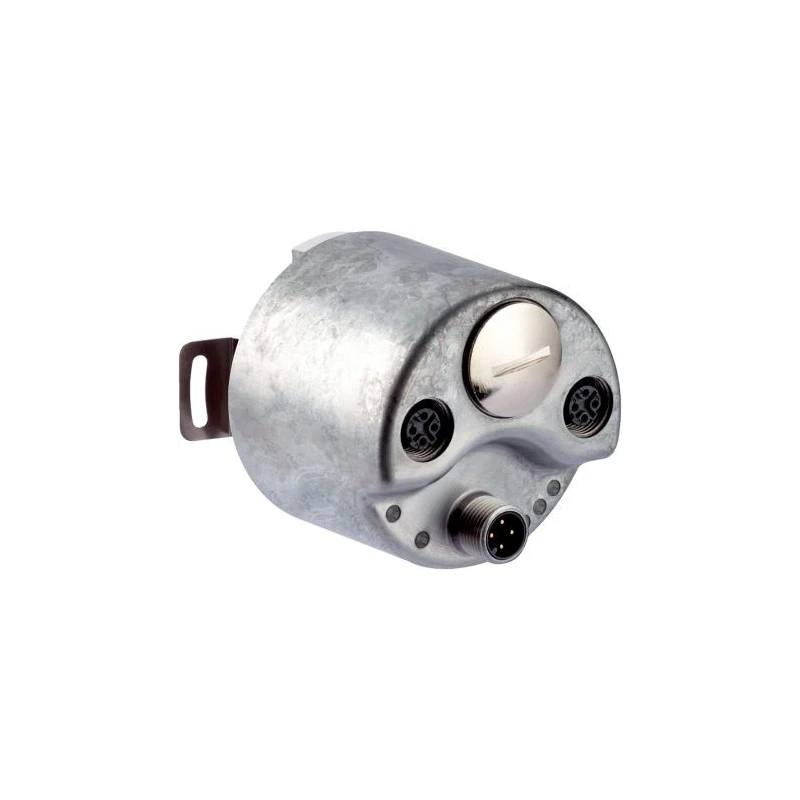

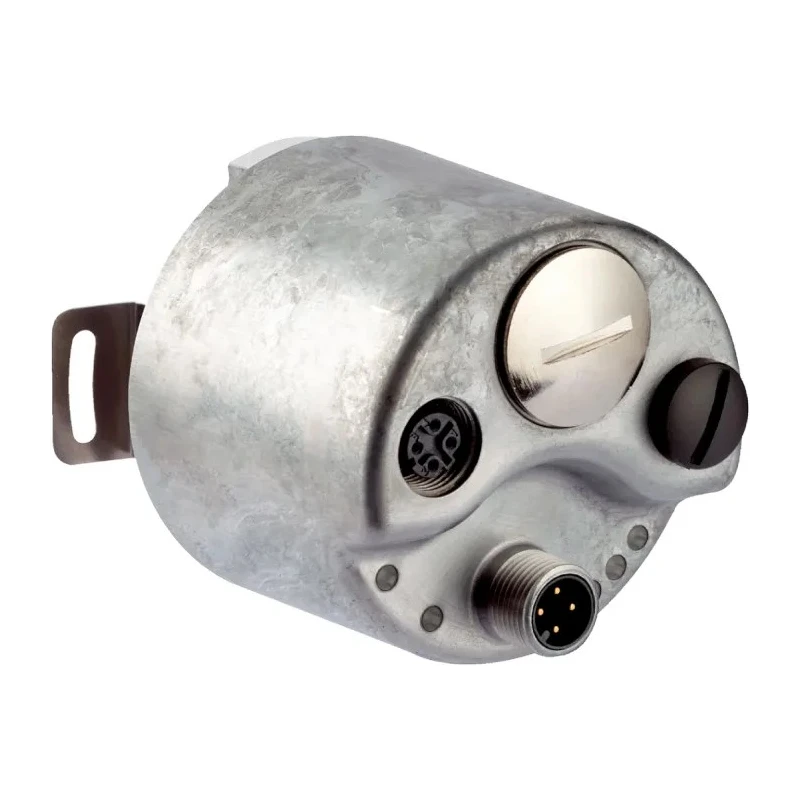

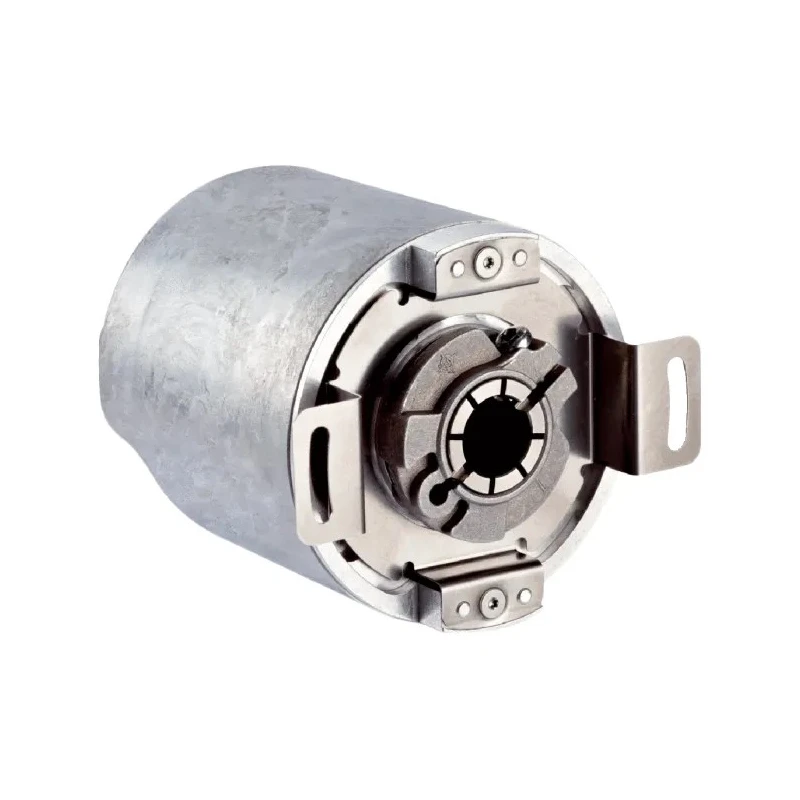

Sick AFM60A-BHNB018X12 Absolute Encoder, PROFINET, 30V DC, 262144 PPR, Hollow Shaft, 15mm Shaft AFM60A-BHNB018X12 / 1059031
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Sick |
| Model | AFM60A-BHNB018X12 / 1059031 |
| IP Rating | IP65, IP67 |
| Mount Type | Hollow Shaft Flange |
| Series | AFM60 |
| Overall Width | 60mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 15mm |
| Overall height | 72mm |
| Shaft Type | Hollow |
| Interface Type | PROFINET |
| Pulses per Revolution | 262144ppr |
| Standards/Approvals | cULus, CE |
| Maximum Supply Voltage | 30V dc |
| Overall Depth | 71.5mm |
| Encoder Technology | Absolute |
| Maximum Revolutions | 4096rpm |
| Output Signal Type | Profinet |
Key Features
- High-resolution 262,144 pulses per revolution for fine positional accuracy.
- Multi-turn capability up to 4,096 revolutions expands operational range.
- IP65 and IP67 rated housing withstands demanding environments.
- PROFINET communication enables fast and reliable data transfer.
- Blind hollow shaft design with 15mm diameter ensures easy integration.
- Wide supply voltage range from 10V to 30V DC for flexible use.
- Aluminium enclosure with stainless-steel shaft for long service life.
- Diagnostic and monitoring data available via PROFINET profile.
Product Description
Sick AFM60A-BHNB018X12 Absolute Encoder is a high-performance motion control sensor designed for demanding industrial automation applications. With a PROFINET interface and aluminium housing, it provides robust and precise position feedback in various environments.
This encoder supports a remarkable single-turn resolution of 262,144 pulses per revolution and multi-turn capability up to 4,096 revolutions, making it ideal for high-precision monitoring of rotary movements. Its blind hollow shaft design with 15mm diameter facilitates easy installation and integration with servo motors, robotic joints, conveyor systems, and packaging lines.
Housed in a combination of aluminium and stainless-steel components, the AFM60A-BHNB018X12 offers exceptional durability. The IP65 and IP67 protection ratings ensure reliable operation even in harsh industrial environments prone to dust and moisture, while its operational temperature range of -40°C to 85°C supports continuous use across diverse sectors.
262,144 steps per revolution for highest positional accuracy. Multi-turn capability (4,096 revolutions) for expanded application coverage. Fast 10/100Mbit/s PROFINET communication supporting rapid feedback and diagnostics.
Start-up time as low as 6 seconds to reduce commissioning delays. Diagnostic outputs include temperature, speed, power-on and operating hours counters, and direction-change statistics.
The encoder uses three axial M12 connectors - two D-coded for PROFINET ports and one A-coded 4-pin for power and signal distribution - providing reliable connections and flexible network integration.
Key industrial applications include machine tool servo feedback, conveyor speed/position monitoring, rotary axis measurement in packaging systems, robotics angular control, and gearbox feedback in manufacturing plants. The high bearing life and shaft tolerances (up to 0.5mm axial static movement) guarantee long-term robustness even in continuous-duty operations.
Explore EnvMart’s full range of Sick Motion Control Sensors for industrial automation and precision measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a high resolution of 262,144 pulses per revolution, ensuring fine positional accuracy.
The maximum operating temperature for the Sick AFM60A-BHNB018X12 is 85°C, making it suitable for various industrial environments.
It uses a PROFINET interface, allowing for fast and reliable data transfer in industrial applications.
The encoder supports a multi-turn capability of up to 4,096 revolutions, expanding its operational range for various applications.
The overall dimensions of this model are 60mm in width, 72mm in height, and 71.5mm in depth.
This encoder features a hollow shaft design with a diameter of 15mm, facilitating easy integration.
The Sick AFM60A-BHNB018X12 has an IP65 and IP67 rating, providing protection against dust and moisture in demanding environments.
The minimum operating temperature for the encoder is -40°C, allowing it to function in extreme conditions.
It provides a PROFINET output signal type, enabling efficient communication in automation systems.
The encoder features an aluminium enclosure with a stainless-steel shaft, enhancing its durability in industrial applications.
This model offers diagnostic outputs including temperature, speed, power-on and operating hours counters, and direction-change statistics via the PROFINET profile.
It complies with cULus and CE standards, ensuring it meets necessary safety and performance requirements.
