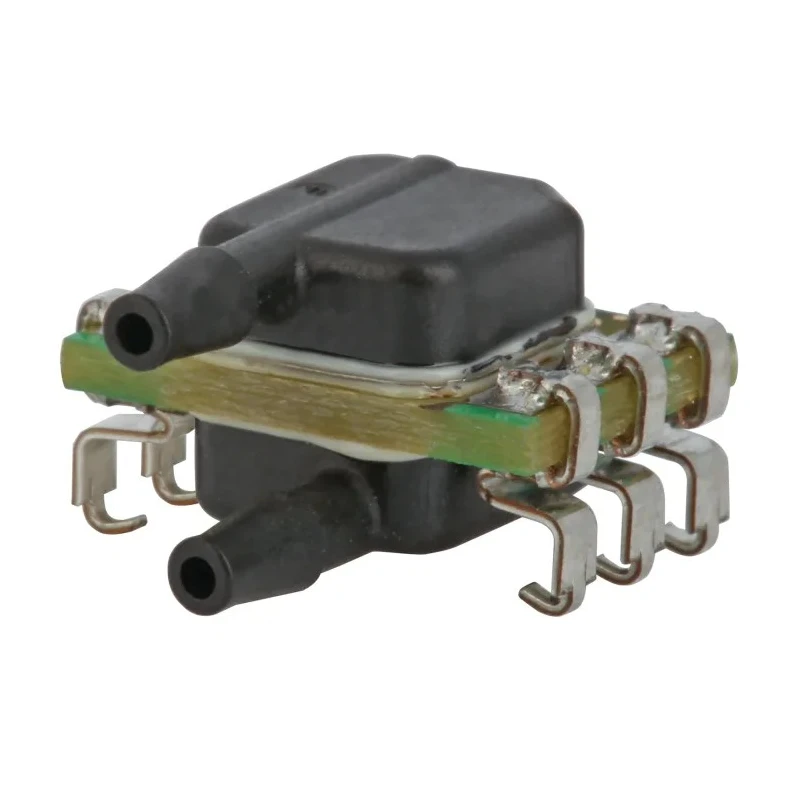

Honeywell Technologies Differential Piezoresistive Pressure Sensor Through Hole 6 DIP 1.8-3.6V 100 kPa ABP2DRRN002ND2B3XX
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell Technologies |
| Maximum Operating Pressure | 100 kPa |
| Height | 7mm |
| Length | 7.3mm |
| Model | ABP2DRRN002ND2B3XX |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Through Hole |
| Series | ABP2 |
| Maximum Operating Temperature | 110°C |
| Port Type | Dual Radial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Operating Pressure | 600Pa |
| Maximum Overload Pressure | 16bar |
Key Features
- Operates with a supply voltage range of 1.8 to 3.6 volts.
- Maximum operating pressure of 100 kPa with a maximum overload pressure of 16 bar.
- High accuracy with ±0.25% full scale span and BFSL.
- Supports differential pressure measurement within -2 to +2 inH2O range.
- Equipped with a dual radial barbed port type for liquid media compatibility.
- Wide operating temperature range from -40°C to 110°C.
- Compliant with RoHS standards and ISO 9001 manufacturing standards.
- Designed for long-term stability and high burst pressure resistance.
Product Description
Honeywell Technologies ABP2DRRN002ND2B3XX is a piezoresistive differential pressure sensor designed for precise pressure measurement applications in industrial, laboratory, HVAC, and automotive testing fields. This sensor is housed in a through hole 6 DIP package and offers robust integration options for circuit board mounting.
The sensor operates within a supply voltage range of 1.8 to 3.6 volts and can withstand a maximum operating pressure of 100 kPa with an overload pressure rating of up to 16 bar, ensuring reliability in demanding environments. It provides highly accurate readings with an accuracy of ±0.25% full scale span (BFSL).
With a pressure range of -2 to +2 inches of water column (inH2O), it is suitable for low pressure differential sensing applications. Its dual radial barbed ports allow compatibility with various liquid media, making it multipurpose in fluid dynamics monitoring and control systems.
The compact sensor dimensions of 7.3 mm length, 6.3 mm width, and 7 mm height make it ideal for space-constrained electronic assemblies. It can operate effectively in temperature environments ranging from -40°C to 110°C, supporting a wide variety of industrial applications.
The ABP2 series sensors are manufactured to ISO 9001 standards with RoHS compliance, guaranteeing environmental responsibility and product quality. The sensor also features long-term stability and high burst pressure resistance for continuous, reliable operation.
Operates with a supply voltage range of 1.8 to 3.6 volts. Maximum operating pressure of 100 kPa and overload pressure of 16 bar. Accuracy of ±0.25% full scale span (BFSL). Pressure range of -2 to +2 inH2O differential measurement.
Compact dimensions of 7.3 × 6.3 × 7 mm. Dual radial barbed ports support liquid media applications. Wide operating temperature range from -40°C to 110°C. Manufactured according to ISO 9001 and RoHS compliant. Long-term stable with high burst pressure tolerance.
This differential pressure sensor is ideal for applications in industrial machinery, HVAC systems, fluid control, automotive testing, and laboratory instrumentation. Its precise output facilitates efficient monitoring and measurement in these environments.
Explore more advanced sensor components and pressure measurement solutions in the Electronics & Electricals category on EnvMart.
Explore more products in our Pressure Sensor IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 100 kPa, with a maximum overload pressure of 16 bar.
It operates with a supply voltage range of 1.8 to 3.6 volts.
The sensor provides an accuracy of ±0.25% full scale span (BFSL).
This model supports differential pressure measurement within a range of -2 to +2 inches of water column (inH2O).
The sensor has compact dimensions of 7.3 mm in length, 6.3 mm in width, and 7 mm in height.
It is equipped with dual radial barbed ports, allowing compatibility with various liquid media.
It can operate effectively in a temperature range from -40°C to 110°C.
This model uses a through hole mounting type in a 6 DIP package.
Yes, it is compliant with RoHS standards and manufactured according to ISO 9001 standards.
The minimum operating pressure is 600 Pa.
It is suitable for applications in industrial machinery, HVAC systems, fluid control, automotive testing, and laboratory instrumentation.
This model features a pin count of 6.
