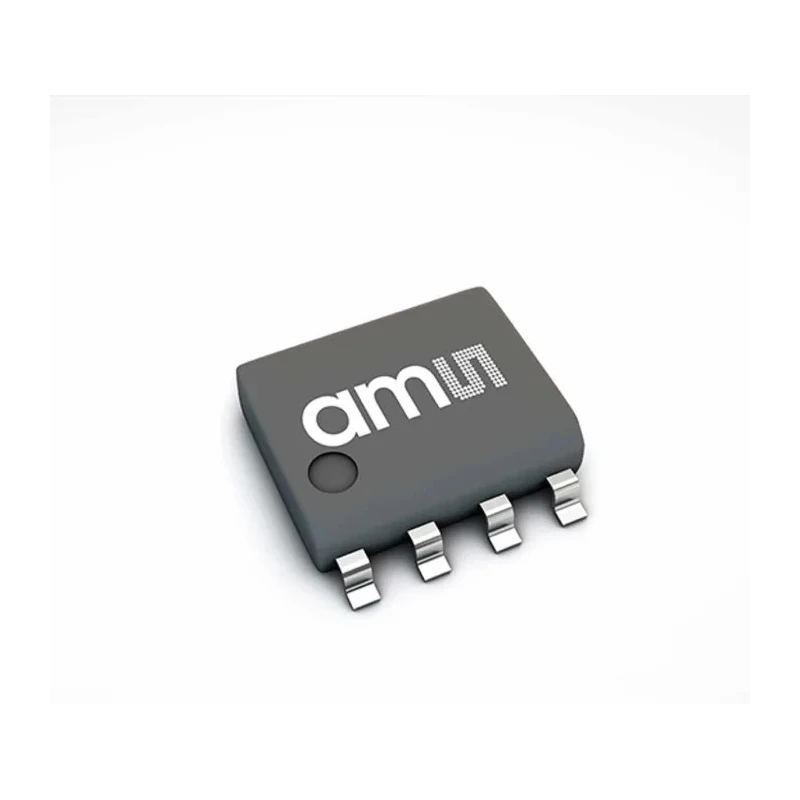

ams OSRAM Magnetic Position Sensor 5.5V, 4096 Pulses Per Revolution, Analogue Output, I2C Interface AS5600L-ASOM

ams OSRAM AS5600L-ASOM is a high-precision magnetic rotary position sensor engineered for demanding industrial and automation applications. Designed to deliver accurate measurements, this sensor utilizes magnetic encoder technology to provide absolute position feedback, ensuring reliable operation in motion control environments.

The AS5600L-ASOM operates at a maximum supply voltage of 5.5V and features a remarkable resolution of 4096 pulses per revolution, enabling fine angle detection and smooth real-time monitoring. With its analogue signal output and industry-standard I2C interface, it is versatile for connection and programming, allowing simple user customization of non-volatile parameters without external programmers.

This sensor's robust, contactless system is especially suited to applications requiring minimized wear and maximum durability, as it measures the absolute angle of a diametric magnetized on-axis magnet. It is ideal for contactless potentiometer scenarios and eliminates the impact of homogenous external stray magnetic fields.

The smart power management modes are designed to optimize energy consumption, and the compact form factor (overall depth 2.07mm, height 2.63mm, width 0.6mm) makes it easy to integrate into space-constrained assemblies. The wide operating temperature range of -40°C to 125°C and switching frequency up to 920Hz broaden its use across various industrial, laboratory, and automation systems.

Compliance with IPC/JEDEC J-STD-033, JESD78, IPC/JEDEC J-STD-020, and AEC-Q100-002E means the sensor meets stringent industry standards for quality and reliability. Its performance and resilience make it suitable for applications in robotics, factory automation, position feedback systems, and advanced laboratory instrumentation.

Industrial use cases include motion control, rotary encoders, robotic arms, feedback systems, precision automation, laboratory angle measurement, and commercial equipment where accurate position sensing is required.

High-resolution magnetic position sensing for rotary measurement. 4096 pulses per revolution ensure precise feedback. Analogue and I2C output interfaces facilitate easy integration and programming. Compact and rugged for embedded electronics, including industrial and laboratory equipment.

Engineered for reliable, contactless operation with superior immunity to stray magnetic fields. Explore more position sensors, magnetic encoders, and industrial automation solutions in the Motion Control Sensors category and from ams OSRAM at EnvMart.
