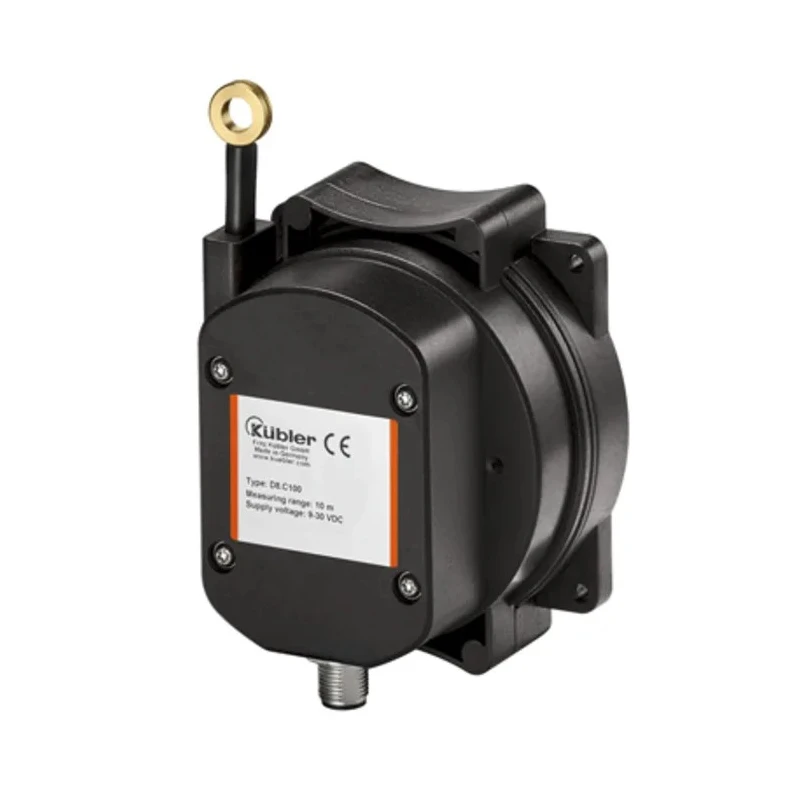

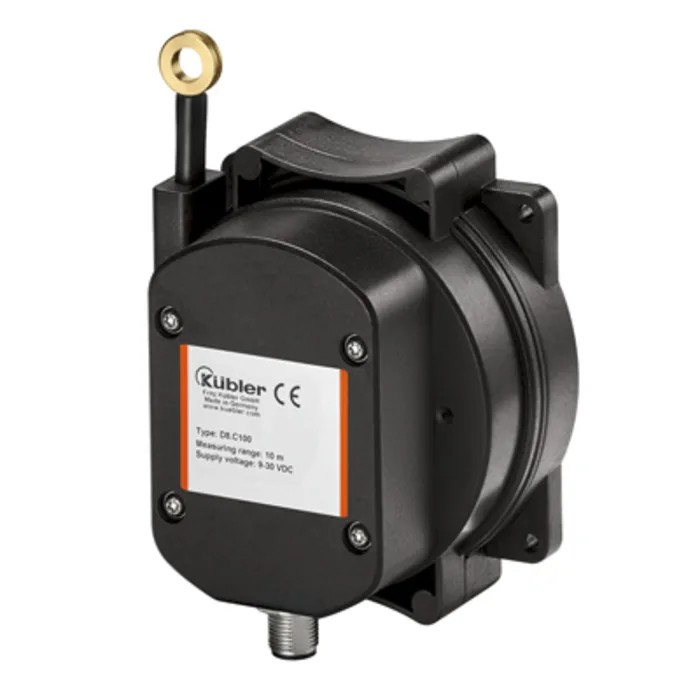

Kubler C100 Series Draw Wire Encoder CAN Open IP67 30V D8.C100.0500.SW34.1000

Kubler D8.C100.0500.SW34.1000 Draw Wire Encoder, part of the C100 Series, is a robust motion control sensor designed to deliver precise and reliable length and position measurements in a wide range of industrial and automation environments. Its CAN Open digital interface enables seamless integration into advanced automated control systems, ensuring compatibility and efficient data transmission for process monitoring and positioning tasks.

With a maximum supply voltage of 30VDC and an operating voltage range from 9VDC to 30VDC, the encoder adapts to various power sources. Its compact, durable enclosure provides IP67-rated protection, making it suitable for deployment in challenging manufacturing, automation, laboratory, and outdoor settings that require resistance to dust and water. The dimensions (height: 108 mm, width: 98 mm, depth: 68.4 mm) allow for easy mounting, even in space-constrained installations.

Device accuracy is enhanced with linearity up to ±0.1% of measuring range, and measuring lengths of up to 5 m are supported. Its advanced design allows the integration of additional sensor types such as analogue, incremental, relay output, and switch output, further expanding application flexibility. The encoder also supports redundant sensor systems for increased plant availability, providing critical reliability in mission-critical and safety-sensitive processes.

Operational versatility is expanded with an industry-wide temperature range of -40°C to 85°C, facilitating use in environments with extreme heat or cold. The 12-pin M12 connector ensures fast installation and secure electrical connections. Reliable position feedback is achieved, making this encoder ideal for industrial machine building, robotics, automated material handling, process monitoring, and laboratory measurement systems.

Certifications such as CE and RoHS speak to compliance with international standards, and country-of-origin information specifies that this unit is manufactured in Italy. Overall, the Kubler C100 Series Draw Wire Encoder addresses demanding requirements in sectors such as industrial automation, manufacturing, laboratory instrumentation, material handling, and commercial machinery integrators.

Features CAN Open digital interface for seamless integration with automated control systems. Provides reliable position and length measurement with high accuracy up to ±0.1% linearity. Rugged IP67-rated enclosure ensures dust and water resistance in harsh industrial environments.

Supports wide operating voltage from 9VDC to 30VDC for flexible power options. Compact form factor with overall measurements of 108 mm height, 98 mm width, and 68.4 mm depth. Operating temperature range from -40°C to 85°C allows use in extreme environments.

Redundant sensor options enhance plant reliability and system availability. Easy installation with a 12-pin M12 connector for streamlined setup and wiring. To explore more advanced motion control sensors and industrial automation solutions from Kubler, browse the Motion Control Sensors category on EnvMart.
