| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B16-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 16V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 200Ω |
| Typical Voltage Temperature Coefficient | 10.4mV/K |

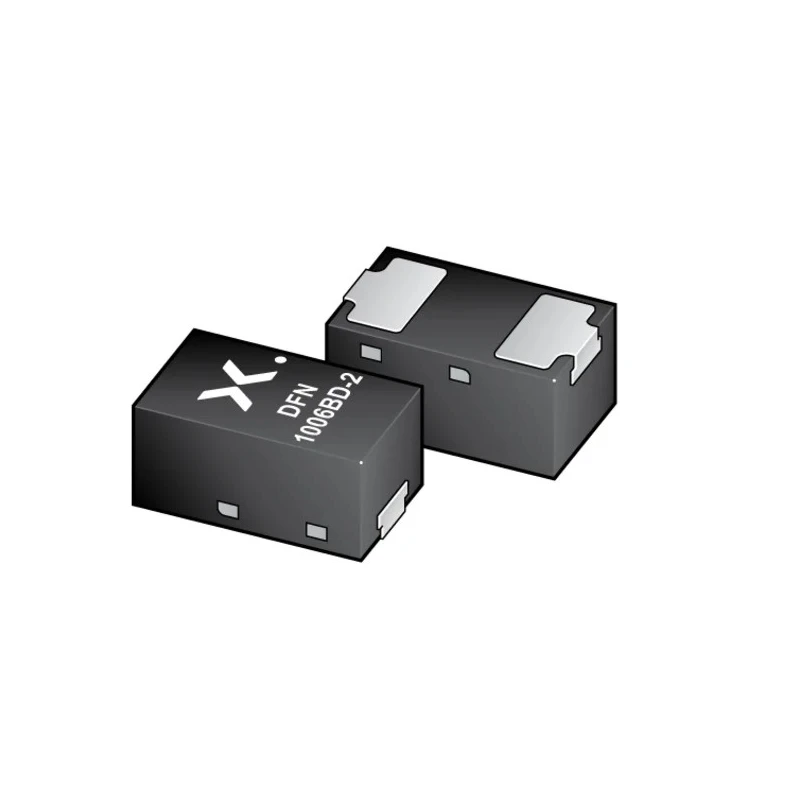

Nexperia BZX884S-B16-QYL is a high-quality general purpose Zener diode designed for precision voltage regulation in electronic circuits. This diode offers a nominal Zener voltage of 16V and features a ±2% voltage tolerance for accurate performance. With a single element configuration and a compact DFN1006BD-2 surface mount package, the component is ideal for space-constrained applications.
With a maximum power dissipation rating of 365mW, this Zener diode is engineered to provide stable operation and robust protection against voltage surges. The device exhibits a low maximum reverse leakage current of 50nA and is specified with a maximum Zener impedance of 200Ω, ensuring dependable voltage clamping and regulation.
Its compact footprint (1mm length × 0.47mm height) and 2-pin mounting enable easy integration onto modern PCBs, suitable for automated assembly lines. The wide working voltage range and ±2% tolerance series make it particularly useful for applications requiring tight voltage control.
Features a nominal Zener voltage of 16V with ±2% voltage tolerance. Maximum power dissipation of 365mW for reliable operation. Ultra-small DFN1006BD-2 package with 2-pin configuration for compact surface mounting. Qualified to AEC-Q101 automotive standard and RoHS compliant.
Low maximum reverse leakage current of 50nA and maximum Zener impedance of 200Ω. Wide operating temperature range from -55°C to 150°C.
Qualified according to AEC-Q101 automotive standards and compliant with RoHS directives, this Zener diode is suitable for demanding industrial, automotive, and commercial electronics projects. Use cases include voltage regulation in consumer devices, protection circuits, and sensitive electronic instrumentation.
Explore more Zener Diodes and semiconductor products from Nexperia at EnvMart for industrial, automotive, and laboratory needs.
