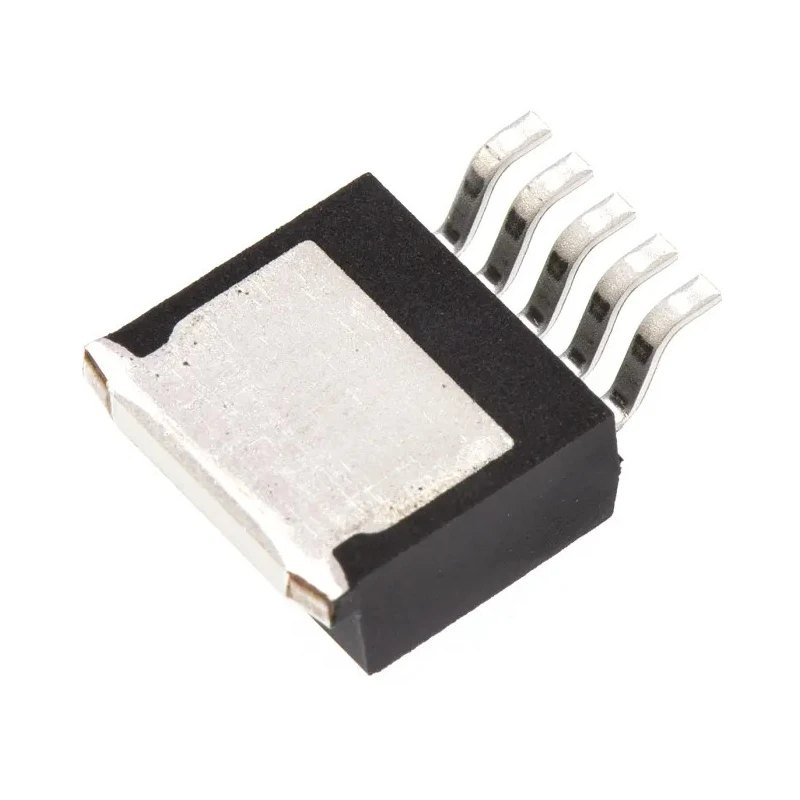

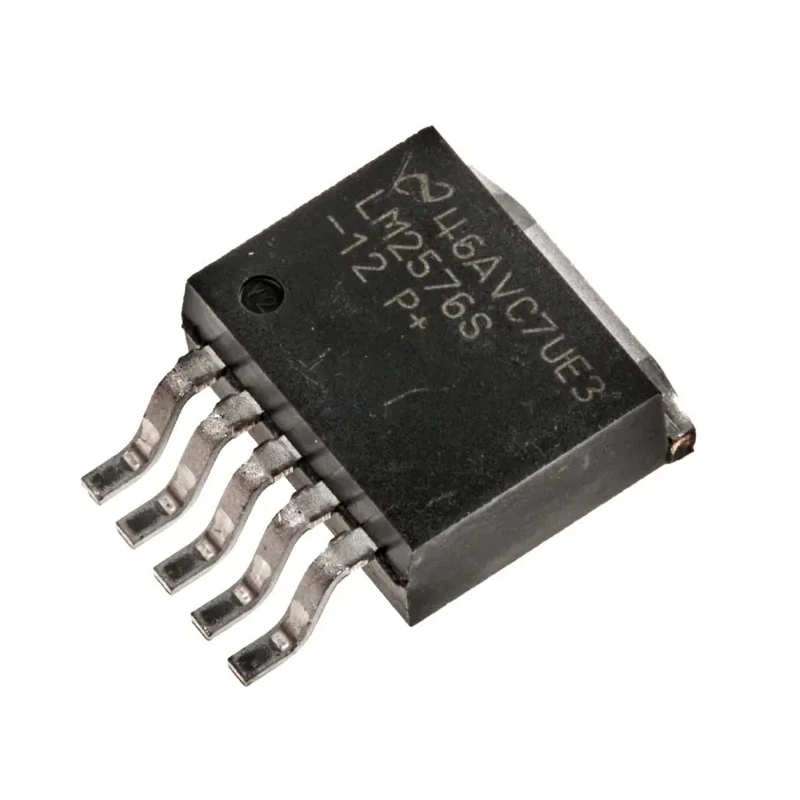

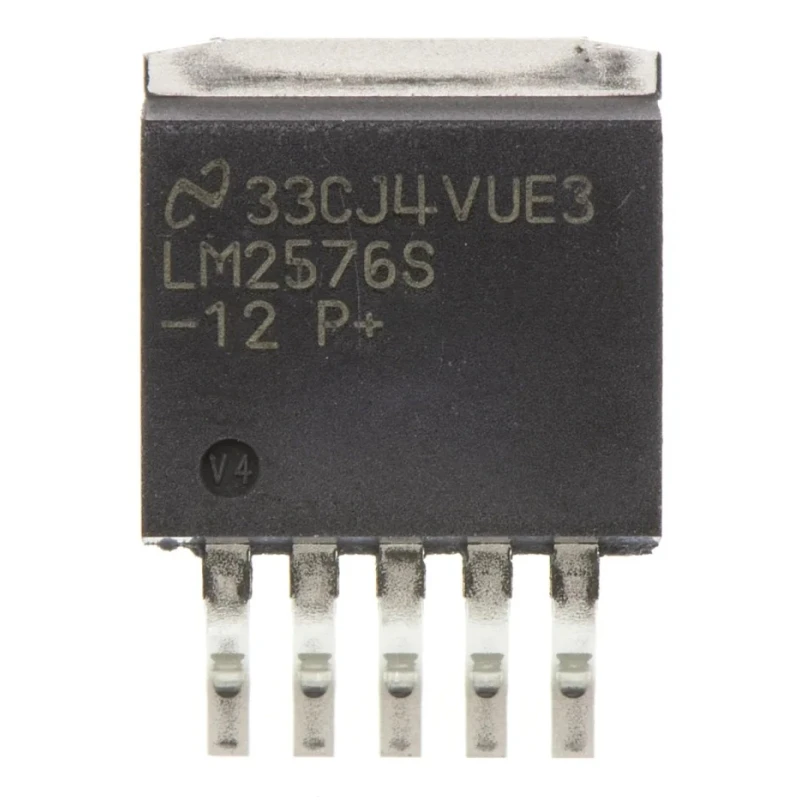

Texas Instruments Surface Mount Buck Converter, 3.36V Output Voltage, 3 A Output Current, TO-263 Package LM2576S-12/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Efficiency | 88% |
| Length | 10.16mm |
| Model | LM2576S-12/NOPB |
| Depth | 4.57mm |
| Width | 8.64mm |
| Mount Type | Surface |
| Series | LM2576 |
| Output Current | 3A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 150mV |
| Maximum Input Voltage | 40V |
| Standards/Approvals | JEDEC, RoHS |
| Minimum Input Voltage | 4V |
| Number of Pins | 5 |
| Output Voltage 1 | 3.36V |
| Output Voltage 2 | 5.1V |
Key Features
- High efficiency of 88% reduces energy loss during voltage conversion.
- Single output design simplifies integration into electronic circuits.
- Supports input voltage range from 4V to 40V for versatile applications.
- Compact TO-263 package measures 10.16mm length, 8.64mm width, and 4.57mm depth.
- Operating temperature range from -40°C to 125°C ensures reliable performance.
- Low ripple and noise voltage of 150mV maintains signal integrity.
- Complies with JEDEC and RoHS standards for quality and environmental safety.
- Five-pin configuration for straightforward PCB mounting and connection.
Product Description
Texas Instruments LM2576S-12/NOPB is a surface mount buck converter designed for efficient step-down power supply applications. It provides a stable 3.36V output voltage with a maximum output current of 3 A, ideal for a variety of electronic devices and circuits requiring regulated power.
The device features a high efficiency of 88%, which minimizes power losses and heat dissipation, improving overall system reliability. The converter operates with input voltages ranging from 4V up to a maximum of 40V, allowing flexible use in different power source environments.
The LM2576S-12/NOPB is housed in a TO-263 package with precise dimensions of 10.16 mm length, 8.64 mm width, and 4.57 mm depth, enabling compact PCB layouts. It maintains operational integrity across a wide temperature range from -40°C to 125°C, suitable for industrial and commercial electronic applications.
The device exhibits low ripple and noise voltage of 150 mV, ensuring stable output power and protecting sensitive components. Its five-pin configuration allows easy mounting on surface mount PCBs, enhancing manufacturability and repairability.
High efficiency of 88% reduces energy loss and heat. Single output with 3.36V and 3 A current rating. Wide input voltage compatibility from 4V to 40V. Compact TO-263 surface mount package. Operating temperature range of -40°C to 125°C.
Low output ripple and noise at 150 mV. Compliance with JEDEC and RoHS standards. Five-pin surface mount design for easy integration.
This buck converter is widely used in industrial, commercial, and laboratory electronic power supply systems where robust and efficient DC voltage regulation is required. Its compact size and high efficiency also suit applications in manufacturing and automation equipment.
Browse the Electronics & Electricals section at EnvMart for more Texas Instruments DC/DC converters and switching regulators optimized for various specifications and power ranges.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 3.36V.
It can provide a maximum output current of 3 A.
This buck converter has an efficiency rating of 88%.
It supports an input voltage range from 4V to 40V.
The dimensions of the TO-263 package are 10.16 mm in length, 8.64 mm in width, and 4.57 mm in depth.
The operating temperature range is from -40°C to 125°C.
It maintains a low ripple and noise voltage of 150 mV.
This model features a five-pin configuration.
It complies with JEDEC and RoHS standards.
It is designed for surface mounting.
It is widely used in industrial, commercial, and laboratory electronic power supply systems.
The series name is LM2576.
