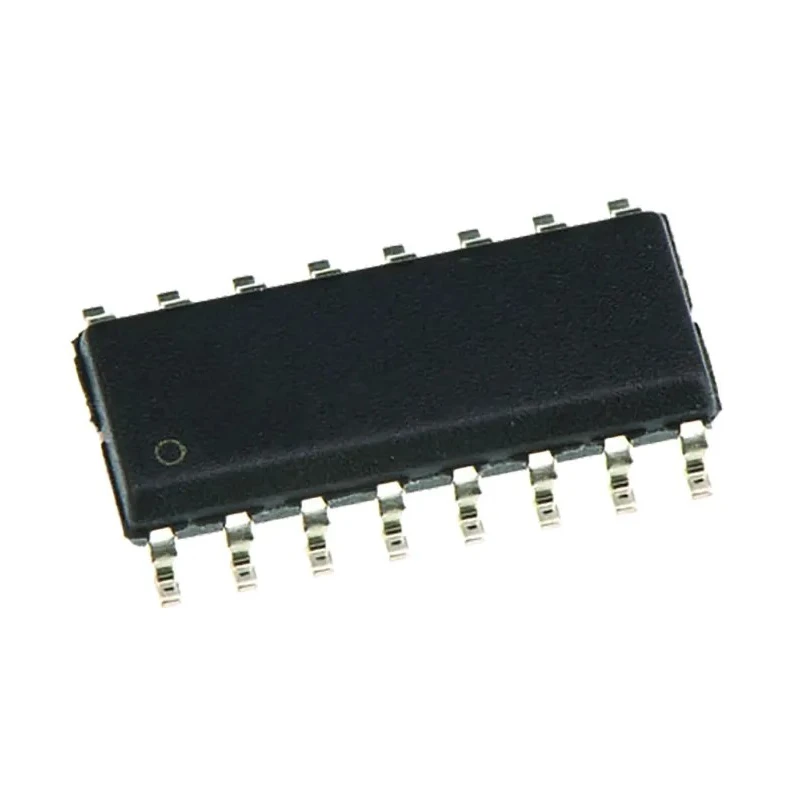

STMicroelectronics AC/DC Converter 800V 16-Pin SOIC Surface Mount 18W VIPER26HDTR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics AC/DC Converter 800V 16-Pin SOIC Surface Mount 18W VIPER26HDTR

Name: STMicroelectronics AC/DC Converter 800V 16-Pin SOIC Surface Mount 18W VIPER26HDTR
Brand: STMicroelectronics
SKU: 194368
Price: 1.25 USD
Availability: InStock



Category AC/DC Converter Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.5mm
Length	10mm
Model	VIPER26HDTR
Width	4mm
Output Power	18W
Mount Type	Surface
Maximum Duty Cycle	80%
Series	VIPER26
Topology	Flyback
Maximum Operating Temperature	150°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Switching Frequency	60kHz
Maximum Input Voltage	23.5V
Maximum Output Voltage	800V
Minimum Input Voltage	11.5V
Pin Count	16
Supply Current	3mA
STMicroelectronics, AC-DC Converter 16-Pin, SOIC VIPER26HDBrand	STMicroelectronics

Key Features

Supports maximum input voltage of 23.5 volts for robust operation.
Delivers a maximum output voltage of 800 volts suitable for high voltage applications.
Operates at a switching frequency of 60 kHz ensuring efficient power conversion.
Designed with flyback topology and an 80% maximum duty cycle for stable performance.
Wide operating temperature range from -40 to 150 degrees Celsius for reliability in harsh environments.
Compact dimensions measuring 10 mm length, 4 mm width, and 1.5 mm height.
Supply current of 3 milliamps ensures low power consumption during operation.
Complies with no specific automotive standards, ideal for general industrial use.

Product Description

STMicroelectronics VIPER26HDTR AC/DC Converter is a high-voltage, 18-watt power management integrated circuit in a 16-pin SOIC surface mount package. It features an 800V avalanche-rugged MOSFET combined with a precision PWM controller designed for off-line switch mode power supply (SMPS) applications. This makes it suitable for power-efficient, scalable, and reliable industrial power conversion systems.

The device operates with a maximum input voltage of 23.5V and a minimum input voltage of 11.5V, delivering a high output voltage of up to 800V. Its switching frequency is 60 kHz, with a flyback topology implemented to achieve efficient energy transfer. The maximum duty cycle is 80%, which optimizes the power output and thermal performance.

Operating temperature ranges between -40°C and 150°C ensure the converter's robustness in demanding industrial environments. With compact dimensions of 10 mm length, 4 mm width, and 1.5 mm height, the SOIC surface mount package facilitates convenient mounting on printed circuit boards and space-saving designs.

The supply current is minimal at 3 mA during operation, reducing overall power consumption. Although it is not designed for specific automotive standards, the VIPER26HDTR suits a variety of industrial, consumer electronics, and power management applications requiring precise AC/DC conversion.

Maximum input voltage of 23.5V ensures wide operational voltage range. Flyback topology optimizes energy efficiency and reliability. Robust avalanche-rugged MOSFET for high-voltage applications. Compact SOIC 16-pin surface mount package suitable for PCB integration.

Wide temperature tolerance from -40 to 150°C for harsh conditions. Low supply current of 3 mA minimizes power loss. Optimized switching frequency at 60 kHz for efficient conversion. Part of the VIPER26 series offering scalable performance options.

This STMicroelectronics AC/DC converter is ideal for industrial power management systems, electronic devices, and consumer equipment requiring reliable high voltage conversion. Explore more power management ICs and AC/DC Converters from trusted brands on EnvMart for your projects and manufacturing needs.
