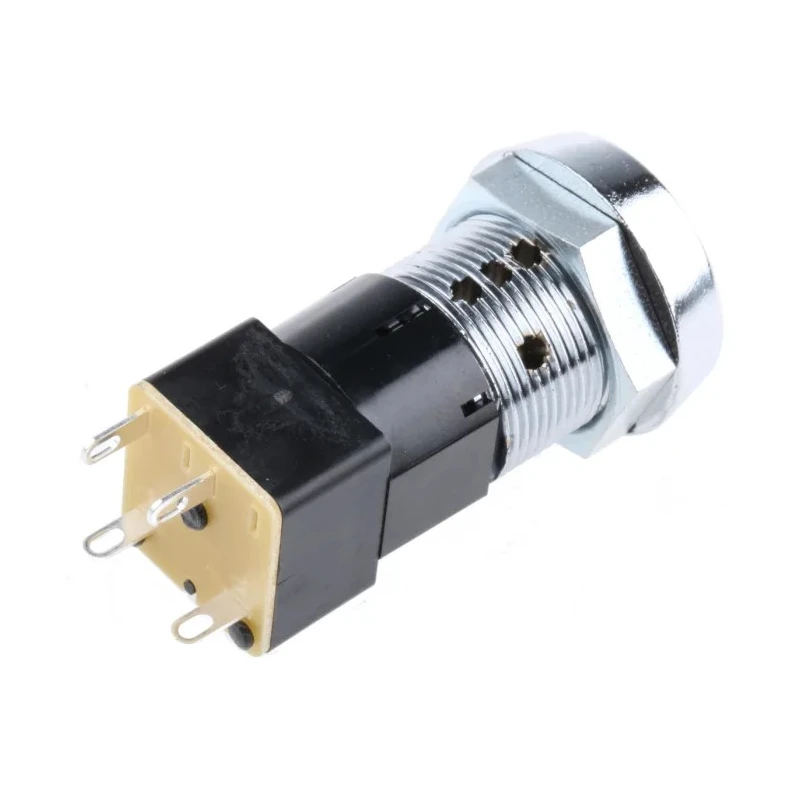

Lorlin High Security Key Switch DPST 50mA 2-Way Flat-Key Round Bezel DSL-6-D-S

Free Delivery in India | Lowest Global Shipping Charges

Lorlin High Security Key Switch DPST 50mA 2-Way Flat-Key Round Bezel DSL-6-D-S

Name: Lorlin High Security Key Switch DPST 50mA 2-Way Flat-Key Round Bezel DSL-6-D-S
Brand: Lorlin
SKU: 169571
Price: 61.19 USD
Availability: InStock



Category Key Switches Brand Lorlin Condition New

Specifications

Country of Origin	United Kingdom
Brand	Lorlin
Model	DSL-6-D-S
Contact Material	Silver Plated Brass
Series	DSL
Maximum Operating Temperature	85°C
Contact Configuration	DPST
Number of Positions	2
Minimum Operating Temperature	-25°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Off-On
Contact DC Voltage	30V dc
Switch Contact Current	50mA
Mechanical Life	15000Cycles
Contact AC Voltage	250V ac
Key Type	Flat
Bezel Shape	Round
Key Index Angle	90°
Lorlin Mains Key Switch, DPST, 50mA 2-Way Flat-KeyBrand	Lorlin

Key Features

High security 19mm key switch with dimpled 6-pin lock.
DPST contact configuration with off-on switch operation.

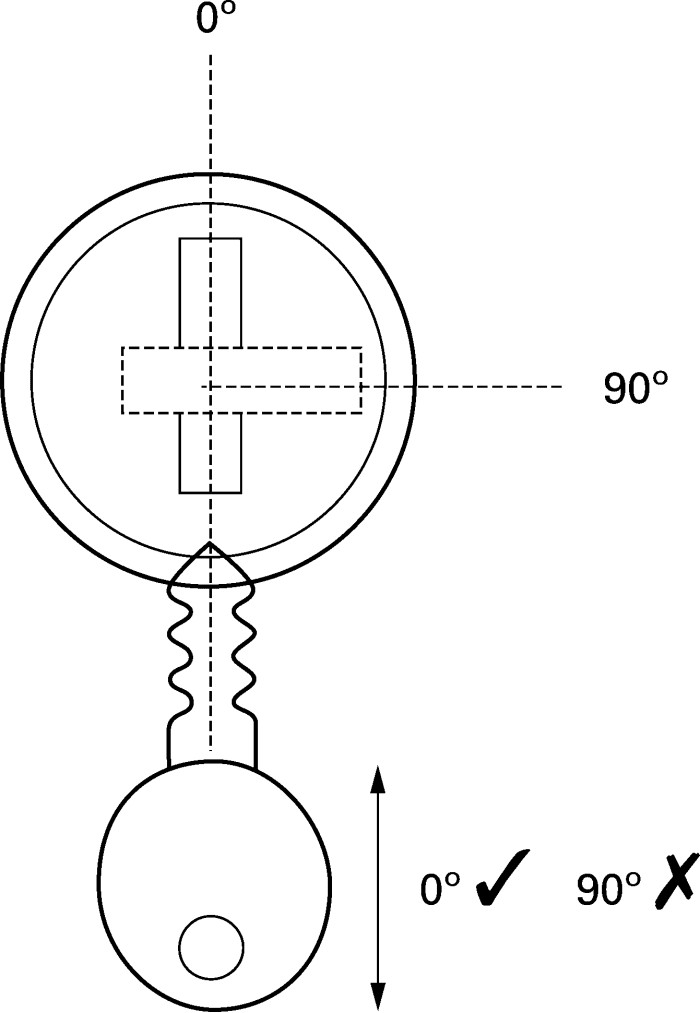

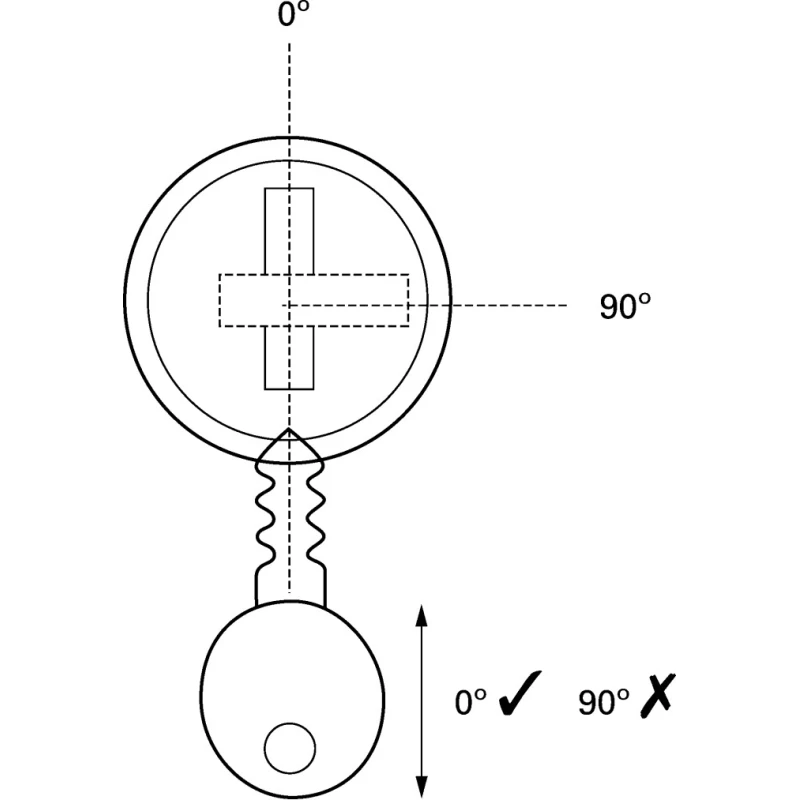

Flat-key type with a 90° key index angle for intuitive operation.
Contact current rated at 50mA suitable for control circuits.
Silver plated brass contacts ensure durability and conductivity.
Temperature range from -25°C to 85°C for varied environments.
Mechanical life rated for 15,000 cycles for long-term use.
Solder terminal type allows easy and secure wiring connections.

Product Description

Lorlin DSL-6-D-S High Security Key Switch DPST 50mA 2-Way Flat-Key features a 19mm diameter round bezel design with a dimpled 6-pin lock for enhanced security. This key switch is designed for industrial, electrical automation, and control applications requiring high reliability and safety standards.

The switch offers a double-pole single-throw (DPST) contact configuration with off-on switch operation, capable of handling up to 50mA contact current. The flat key type with 90° rotation provides precise and secure switching. Silver plated brass contacts ensure excellent electrical conductivity and resistance to corrosion.

It is ideal for use in environments with operating temperatures between -25°C and 85°C, making it suitable for various industrial and manufacturing settings. The mechanical life of 15,000 cycles indicates robust performance over extended periods.

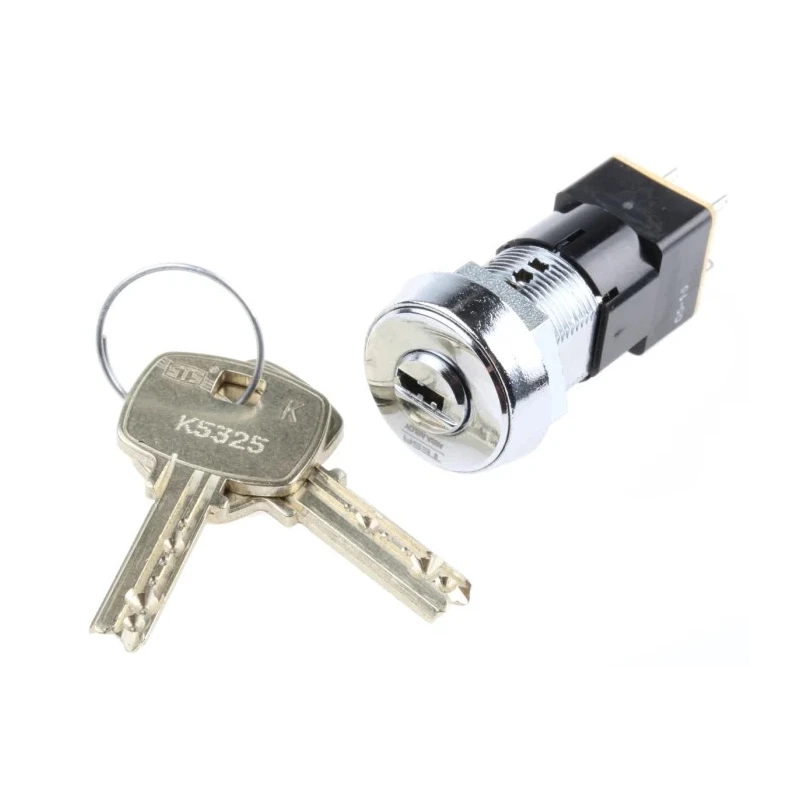

The two-part construction allows for front panel insertion with a snap-on module from the rear, facilitating panel mounting and maintenance. Each switch comes with two keys per lock and offers options for common or random key profiles with trapping or non-trapping key removal.

The switch is RoHS compliant and manufactured in the United Kingdom under the DSL series, ensuring quality and regulatory adherence. Typical applications include electrical control panels, machinery safety systems, and automation controls in industrial, commercial, and manufacturing facilities.

High security key switch with dimpled 6 pin lock enhances system safety. DPST contact configuration suitable for reliable dual circuit control. Flat key with 90° rotation allows intuitive user operation. Silver plated brass contact material improves longevity and conductivity.

Solder-type terminals allow secure and flexible wiring. Wide operating temperature range supports harsh industrial environments. Mechanical life of 15,000 cycles ensures extended service. Front panel mount with snap on rear module eases installation.

Complies with RoHS standards for environmentally responsible manufacturing. Explore more high-quality switches and electrical components in the EnvMart catalog for comprehensive industrial and commercial electrical solutions.
