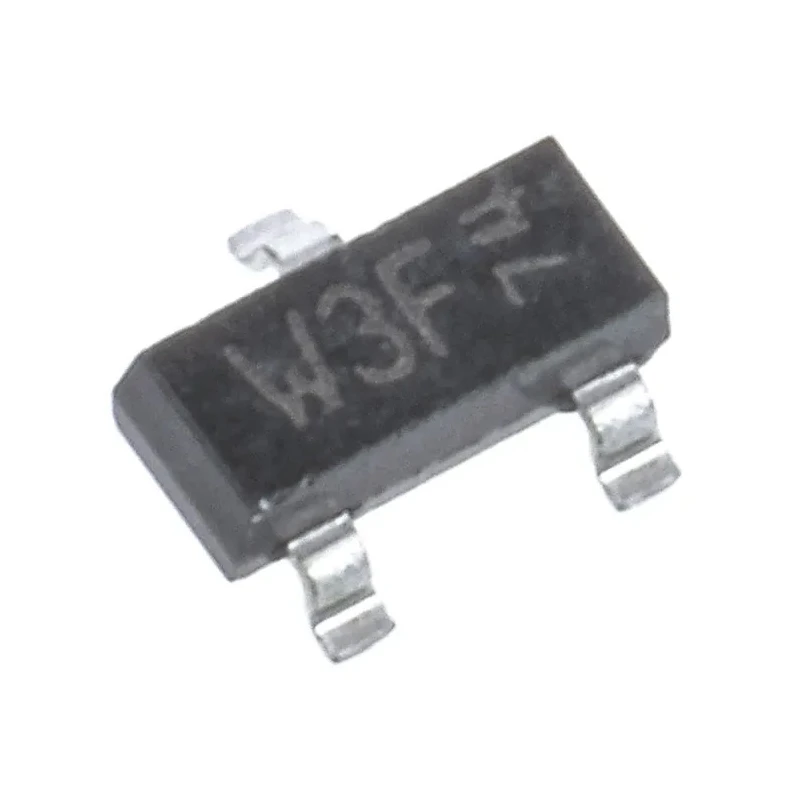

Nexperia PNP Transistor, Low Saturation Voltage, 2 A Maximum DC Collector Current, -20 V Collector Emitter PBSS5220T,215

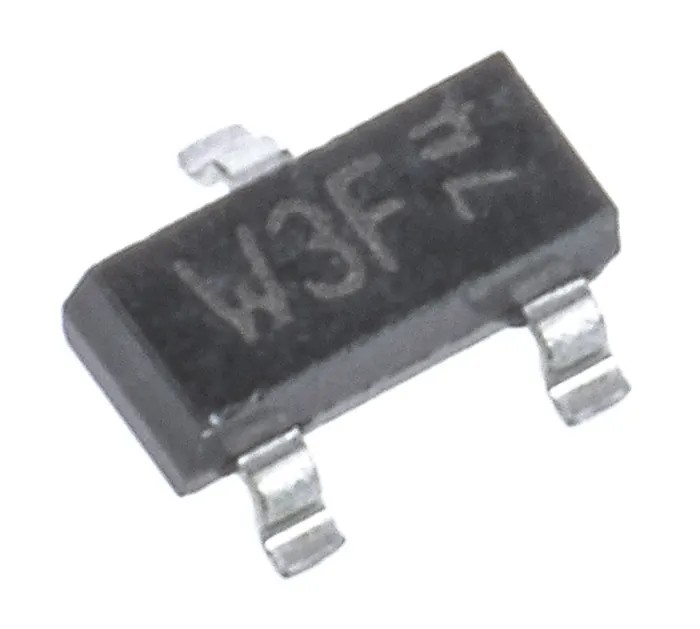

Nexperia PBSS5220T,215 is a high-performance PNP bipolar transistor designed for use in industrial, automotive, and electronic applications. Featuring a maximum DC collector current of 2 A and collector emitter voltage rating of -20 V, this device is housed in a compact 3-pin SOT-23 package that supports surface mount technology, optimizing PCB space while maintaining robust electrical performance.

The transistor's low saturation voltage ensures reduced power losses and lower heat generation, enhancing overall efficiency in switching and amplification circuits. It supports a wide range of operating temperatures from -65°C to 150°C, making it suitable for harsh environments including automotive electronics compliant with AEC-Q101 standards.

With a high minimum DC current gain (hFE) of 150, the PBSS5220T,215 enables reliable signal amplification in discrete semiconductor applications. Its maximum power dissipation of 480 mW supports stable operation under demanding electrical loads. The device also features a maximum transition frequency of 100 MHz, facilitating fast switching capabilities for digital and switching power circuits.

Compact package dimensions (length 3 mm, width 2.5 mm, height 1.1 mm) and adherence to RoHS directives guarantee minimal environmental impact and ease of integration into high-density designs. This transistor is ideally suited for use in discrete semiconductor solutions for power management, industrial controls, and automotive electronic systems.

Low saturation voltage reduces losses and heat generation. High current rating supports demanding load requirements. Compact SOT-23 package for space-saving PCB layouts. Wide temperature tolerance suits harsh operating conditions.

Compliant with automotive quality standard AEC-Q101. RoHS certified ensuring environmentally safe manufacturing. High frequency transition rate enables fast switching. Surface mount device for automated assembly processes.

Optimal for power management and digital switching applications.

This Nexperia PNP transistor is a reliable choice for electrical engineers seeking efficient and compact discrete semiconductor components for diverse industrial uses. Explore EnvMart's extensive catalog of Bipolar Transistors for complementary products and components.
