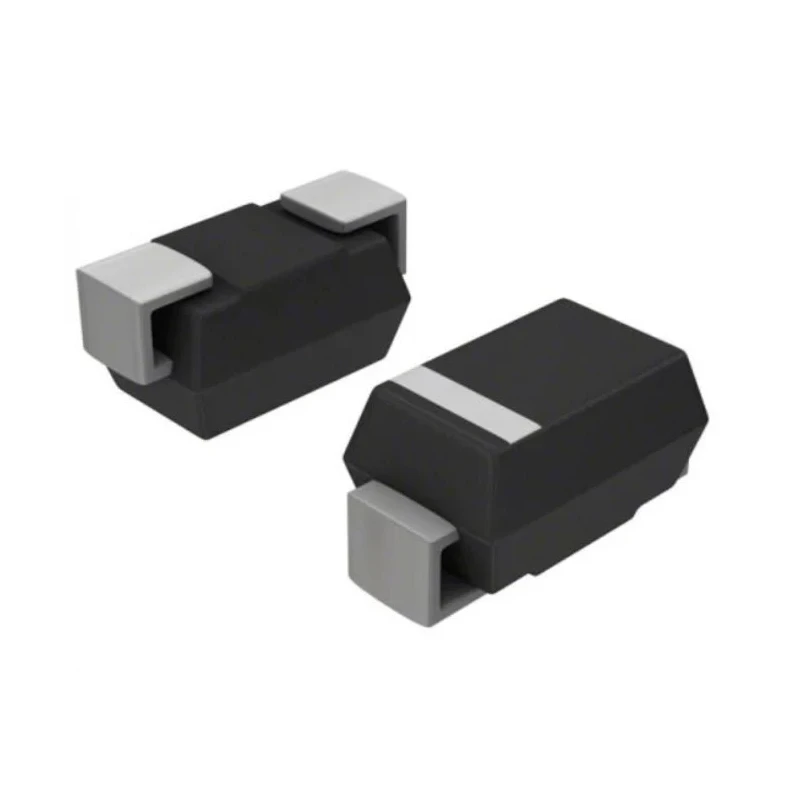

Vishay 1-Element Bi-Directional TVS Diode 1.5 kW, Surface Mount 2-Pin SMC SMCJ33CA-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ33CA-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 53.3V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 36.7V |
| Maximum Reverse Stand-off Voltage Vwm | 33V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 28.1A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single-element device with bi-directional transient voltage suppression.
- Minimum breakdown voltage of 36.7 V and maximum reverse stand-off voltage of 33 V.
- Peak pulse power dissipation rating of 1.5 kW for high surge protection.
- Clamping voltage of 53.3 V limits voltage spikes effectively.
- Wide operating temperature range from -55°C to 150°C.
- Maximum peak pulse current rating of 28.1 A handles high-energy transients.
- Complies with automotive AEC-Q101 standards for reliability.

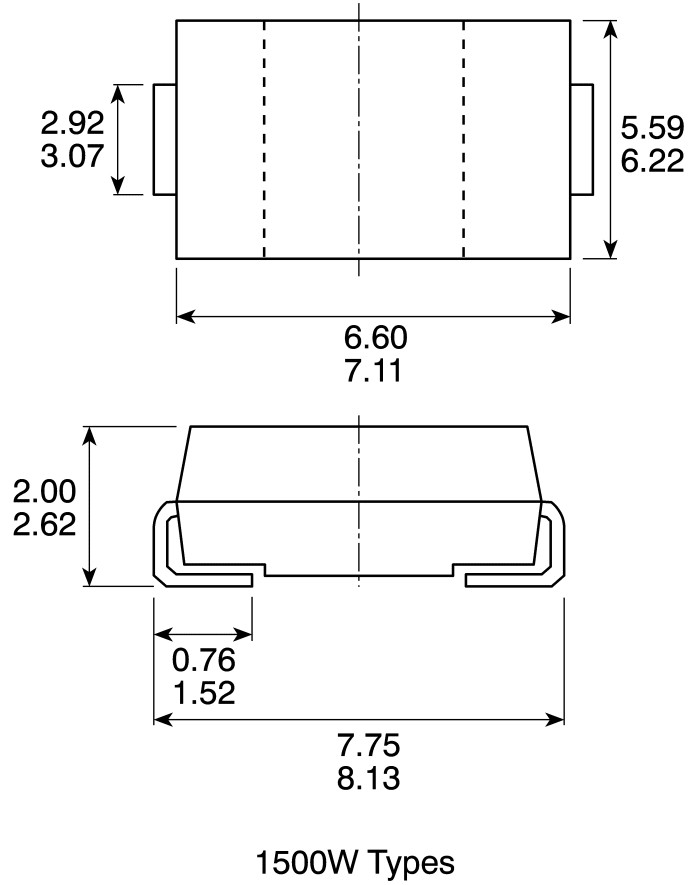

- Compact 2-pin surface mount SMC package, 7.11 mm x 6.22 mm x 2.42 mm.
Product Description
Vishay SMCJ33CA-E3/57T is a single-element bi-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic circuits from voltage spikes and transient surges. With a peak pulse power dissipation rating of 1.5 kW, this surface mount device in a compact 2-pin SMC package is ideal for safeguarding components in automotive, industrial, and consumer electronics applications.
Its minimum breakdown voltage of 36.7 V and maximum reverse stand-off voltage of 33 V ensure reliable suppression of transient voltage peaks. The device clamps voltage at 53.3 V during surge events, effectively limiting voltage spikes to safe levels.
Operating over a wide temperature range from -55°C up to 150°C, the diode provides robust performance under harsh environmental conditions. The maximum peak pulse current rating of 28.1 A facilitates protection against high-energy electrical transients.
Designed according to the TRANSZORB TVS series, this diode complies with the stringent automotive AEC-Q101 standard, making it suitable for in-vehicle electronics and other demanding environments. Its small package size with dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height supports compact PCB layouts.
The device’s maximum reverse leakage current of 1 μA contributes to low standby power consumption, enhancing overall system efficiency. This diode is surface mountable, simplifying automated PCB assembly for mass production.
This product is widely used in electronic circuit protection, industrial equipment, automotive electronics, and telecommunications. Its compact form factor, high power rating, and bi-directional protection make it a versatile choice for transient voltage suppression.
Package contents include one Vishay 1-element bi-directional TVS diode in a 2-pin SMC package. Explore the comprehensive range of semiconductor components in the TVS Diode category on EnvMart for reliable circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of the Vishay SMCJ33CA-E3/57T is 1.5 kW, providing effective high surge protection.
The clamping voltage for this diode is 53.3 V, which limits voltage spikes effectively during surge events.
This model operates over a wide temperature range from -55°C to 150°C, making it suitable for various environmental conditions.
The dimensions of this diode are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
The maximum reverse stand-off voltage for the Vishay SMCJ33CA-E3/57T is 33 V, ensuring reliable operation under specified conditions.
The maximum peak pulse current rating of this diode is 28.1 A, allowing it to handle high-energy transients effectively.
Yes, this diode complies with the automotive AEC-Q101 standards, ensuring reliability in automotive applications.
The Vishay SMCJ33CA-E3/57T comes in a compact 2-pin surface mount SMC package, facilitating easy PCB assembly.
This diode is a single-element device, designed for bi-directional transient voltage suppression.
The minimum breakdown voltage for the SMCJ33CA-E3/57T is 36.7 V, which helps in reliable voltage suppression.
The maximum reverse leakage current for this model is 1 μA, contributing to low standby power consumption.
This diode is suitable for protecting electronic circuits in automotive, industrial, and consumer electronics applications.
