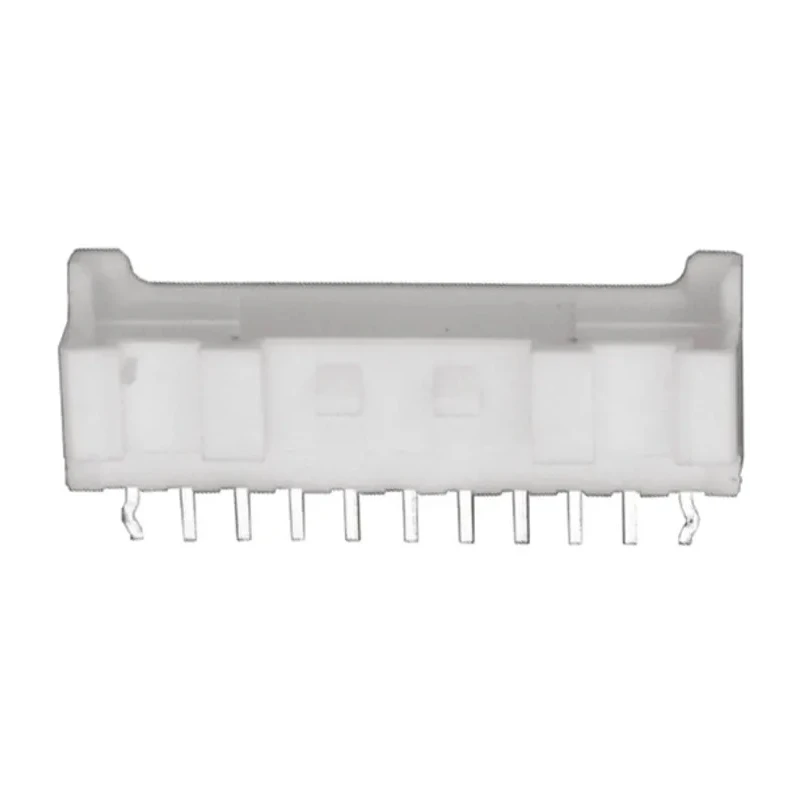

JST PA Series Straight Through Hole PCB Header, 11 Contacts, 2 mm Pitch, 1 Row, Shrouded B11B-PASK-1 (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Straight Through Hole PCB Header, 11 Contacts, 2 mm Pitch, 1 Row, Shrouded B11B-PASK-1 (LF) (SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B11B-PASK-1 (LF) (SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	11
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

The header features a single row configuration with 11 male contacts.
Contact material is copper alloy with tin plating for reliable conductivity and corrosion resistance.
Designed for a current rating of 3 Amperes and voltage up to 250 Volts.
Operating temperature ranges from -25°C to 85°C for versatile use.
The connector system is wire-to-board with a solder termination type.
Includes mating pin length of 3 mm and low insertion force pins for easy assembly.
The header features polarising guides and a locking mechanism to prevent accidental disconnection.

Product Description

The JST B11B-PASK-1 (LF) (SN) is a high-quality PA Series Straight Through Hole PCB Header designed for electronic applications requiring secure wire-to-board connections. This product features an 11-contact, single row design on a 2 mm pitch that ensures precise alignment and reliable electrical contact in various industrial and commercial environments.

Manufactured with copper alloy contacts plated in tin, this header offers excellent conductivity and corrosion resistance, supporting currents up to 3 Amperes and voltages up to 250 Volts. It is rated to operate in temperatures ranging from -25°C up to 85°C, suitable for applications in harsh conditions.

The connector is shrouded to provide protection and includes a thumb depress locking mechanism to prevent accidental disconnections caused by vibration or handling during assembly. The low insertion force pins and polarising guides facilitate easy, secure mating with compatible housings.

Featuring a solder termination type and through-hole mount style, this PCB Header is compatible with various PCB designs and helps improve production efficiency. The mating pin length is 3 mm, supporting reliable and consistent connections.

This product is ideal for use in electronics manufacturing, industrial controls, telecommunications equipment, and other fields demanding reliable PCB connector solutions. Its robust design ensures durability and long service life.

The header provides a secure wire-to-board connection with anti-vibration locking features. Copper alloy contacts plated with tin offer strong electrical conductivity and corrosion resistance. Supports up to 3A current and 250V voltage for demanding electronic circuits.

Operating temperature range is from -25°C to 85°C, suitable for diverse environments. Shrouded design and polarising guides ensure correct mating and protection. Low insertion force pins and solder termination ease assembly and enhance reliability.

Single row, 11 contact configuration on 2 mm pitch for precise PCB interfacing. Discover further JST electronic components and PCB connectors at EnvMart to enhance your production and design capabilities.
