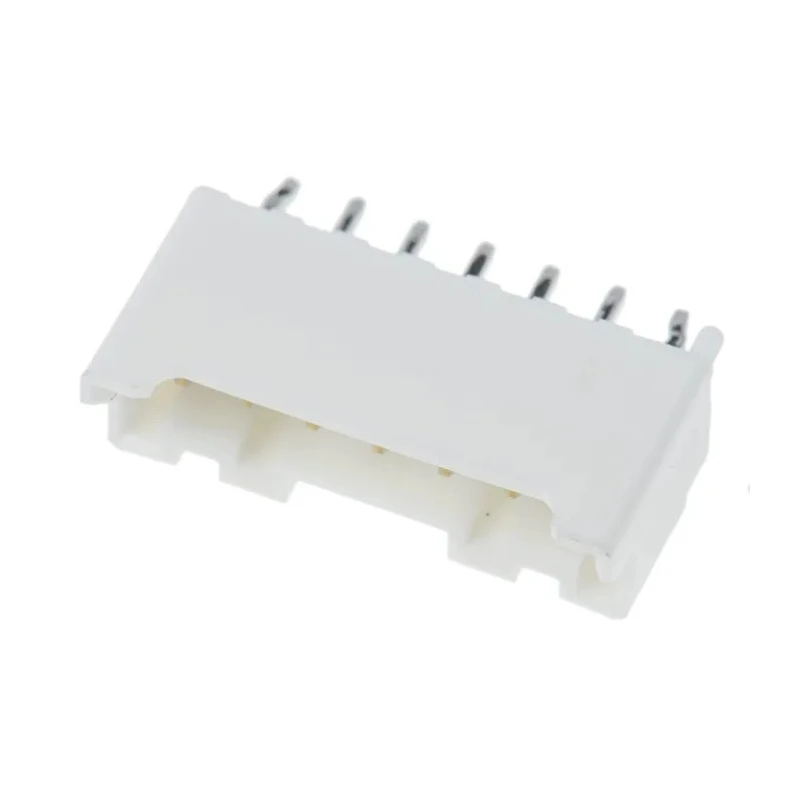

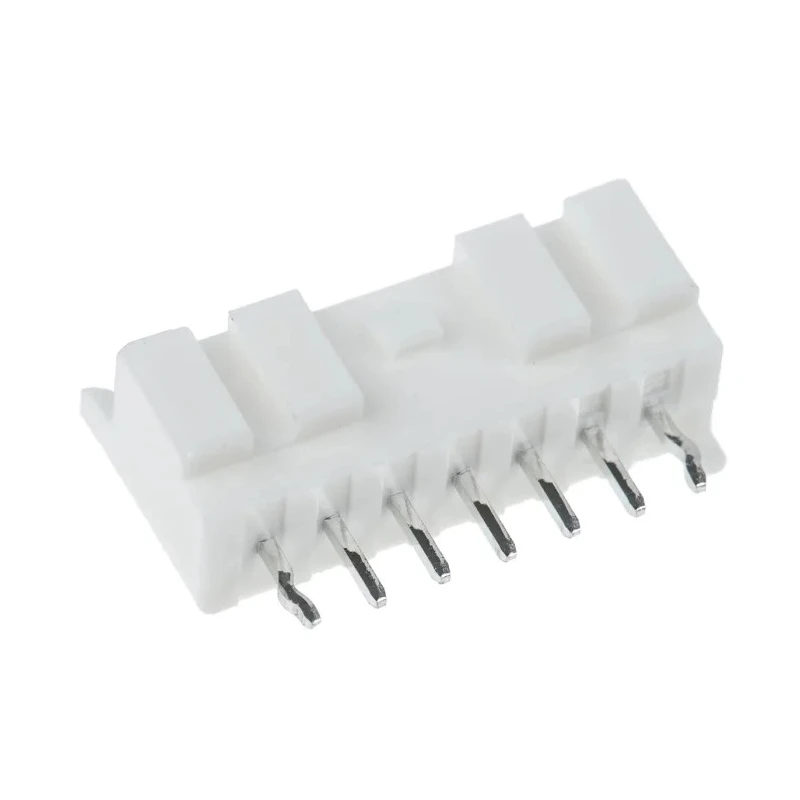

JST PA Series Straight Through Hole PCB Header, 7 Contacts, 2 mm Pitch, 1 Row, Shrouded B07B-PASK-1 (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Straight Through Hole PCB Header, 7 Contacts, 2 mm Pitch, 1 Row, Shrouded B07B-PASK-1 (LF) (SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B07B-PASK-1 (LF) (SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	7
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

Designed with copper alloy contacts plated with tin for excellent conductivity and corrosion resistance.
The header operates safely at voltages up to 250V and current rating of 3A.
It features a locking device mechanism to prevent accidental disconnection due to vibration or assembly errors.
Suitable for through hole mounting with solder termination, compatible with wire-to-board connector systems.
Operates reliably within a temperature range of -25°C to 85°C.
Includes polarising guides and low insertion force header pins for easy and secure PCB assembly.
Top entry orientation designed for professional, industrial PCB applications requiring reliable anti-vibration connections.

Product Description

JST B07B-PASK-1 (LF) (SN) PCB Header is part of the PA Series designed for secure wire-to-board connections with 7 male contacts on a 2 mm pitch arranged in a single row. The straight through hole mounting style with shrouded housing ensures robust and reliable connections ideal for industrial and commercial electronic applications.

The contacts are made of copper alloy and plated with tin for enhanced conductivity and corrosion protection. Rated to operate at a maximum voltage of 250V and a current of 3A, this header ensures safe and efficient electrical performance.

Operable between -25°C and 85°C, the PCB header is suited for use in varying environmental conditions. It features a thumb depress locking mechanism to prevent accidental disconnections caused by vibration or handling during assembly.

Top entry configuration and polarising guides facilitate correct and easy insertion, while low insertion force pins reduce PCB assembly effort. The product is optimized for use in industrial electronics, manufacturing assemblies, and commercial electronic device production that demand reliable and secure board interconnections.

Copper alloy contacts with tin plating for excellent reliability. 7 contacts on 2 mm pitch, 1 row, male gender. Shrouded housing protects against misalignment and damage. Thumb depress locking device prevents accidental disconnection.

Suitable for through hole solder termination on PCBs. Wide operating temperature range from -25°C to 85°C. Designed for wire-to-board connector applications requiring anti-vibration secure connection.

This PCB header is a standard component widely used in electronic component manufacturing, power distribution boards, and industrial control systems. Its robust construction supports long-term performance in demanding environments.

Explore the full JST PA Series Connector range and other PCB Headers at EnvMart for quality and reliability in your electronic assembly needs.
