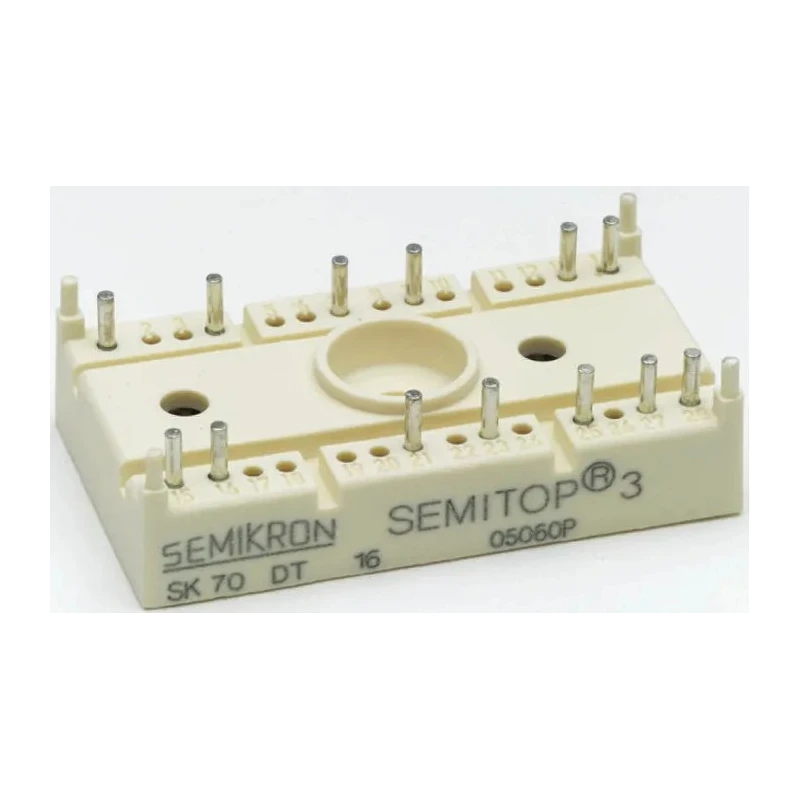

Semikron Danfoss Thyristor Module 13-Pin PCB Mount Type Max Operating Temperature 125°C SK 70 DT 16

Semikron Danfoss SK 70 DT 16 is a 13-pin Thyristor Module designed for use in industrial and electronic applications requiring controlled rectification. This PCB-mounted module supports single-phase and 3-phase fully controlled bridge rectifiers with isolated base plates, making it suitable for robust power control circuits.

The module features glass passivated thyristor chips capable of withstanding up to 1600 V reverse voltage, ensuring reliable switching performance in demanding environments. Its compact design includes single-screw mounting to simplify installation and maintenance. The isolated base plate design provides electrical safety and thermal management.

Physical dimensions of the unit are 55 mm in length, 31 mm in width, and 15.43 mm in height, providing a compact footprint suitable for space-constrained assemblies. The maximum operating temperature of 125°C allows the module to perform reliably under high thermal conditions prevalent in industrial machinery, manufacturing equipment, power supplies, and HVAC systems.

This module is manufactured in Italy, known for its high manufacturing quality and conformity. It does not carry specific certifications but is engineered to meet industrial power electronics requirements.

3-phase controlled bridge rectifier suitable for power conversion. Glass passivated thyristor chips for enhanced durability. Compact with single-screw PCB mounting system. Isolated base plate provides safety and improved heat dissipation.

Maximum operating temperature of 125°C. Physical dimensions of 55 mm x 31 mm x 15.43 mm. Designed for use in industrial, manufacturing, electronic, and HVAC applications. Browse the Electronics & Electricals category on EnvMart for additional power modules and semiconductors compatible with your projects.
