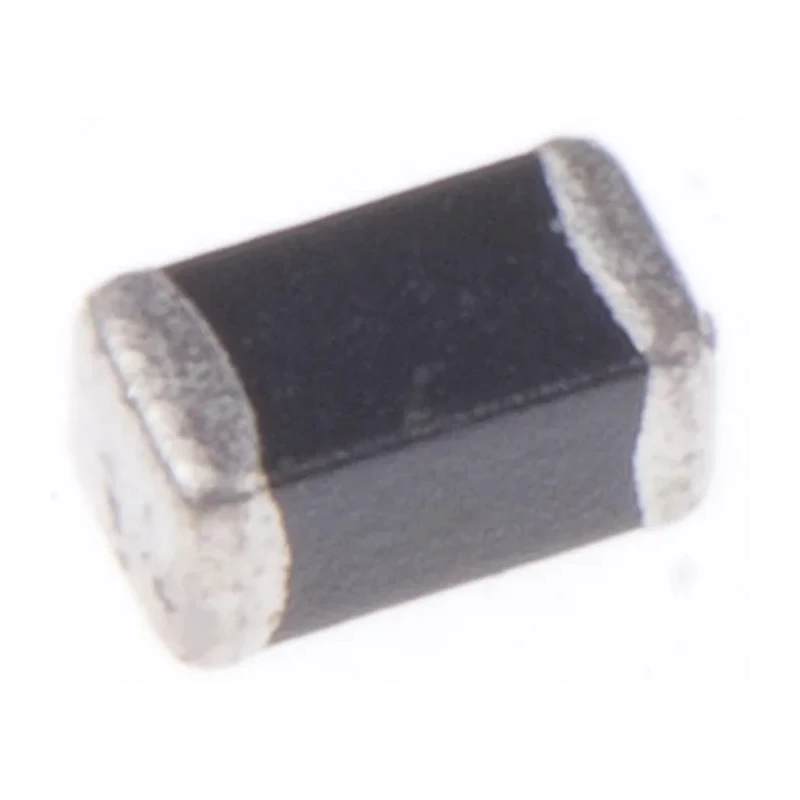

TDK 1-Element Bi-Directional TVS Diode 1.6 kW Peak Pulse Power, 2-Pin SOD-523 Package B72500D0090A060

TDK B72500D0090A060 is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode engineered for effective protection against voltage transients and ESD events in sensitive electronic circuits. With a peak pulse power dissipation rating of 1.6 kW and a compact 2-pin SOD-523 surface mount package, it integrates seamlessly into modern PCB designs requiring robust surge protection.

This diode operates over a wide temperature range of -40°C to 85°C, making it suitable for industrial and commercial electronics exposed to varying environmental conditions. Its minimum breakdown voltage of 10V and maximum reverse stand-off voltage of 9V enable it to absorb harmful voltage spikes effectively, clamping at 30V to safeguard downstream components.

The device features low maximum reverse leakage current of only 1μA, preserving power efficiency. Its bi-directional design routes both positive and negative ESD currents safely to ground, thereby protecting circuits from polarity-independent transient events.

Manufactured with lead-free nickel barrier terminations, this device meets prevalent environmental and safety standards. It complies with the IEC 61000-4-2 Level 4 ESD protection standard, ensuring high reliability and durability in demanding applications.

Typical applications include industrial power supplies, telecommunications equipment, control systems, and consumer electronics requiring transient voltage protection to enhance operational safety and longevity.

Bi-directional diode configuration suitable for protecting circuits from both polarity transients. Peak pulse power dissipation of 1.6 kW ensures reliable surge protection. Compact SOD-523 surface mount package with 2 pins for easy PCB integration.

Operating temperature range from -40°C to 85°C supports harsh environments. Minimum breakdown voltage of 10V and clamping voltage of 30V for effective voltage transient management. Low maximum reverse leakage current of 1μA maintains energy efficiency.

High ESD robustness compliant with IEC 61000-4-2 Level 4 standards. Lead-free nickel barrier terminations comply with environmental standards. Suitable for electronic, industrial, and power protection applications. Explore the wide range of semiconductor protection devices within EnvMart to enhance the resilience and durability of your electronic and industrial applications.
