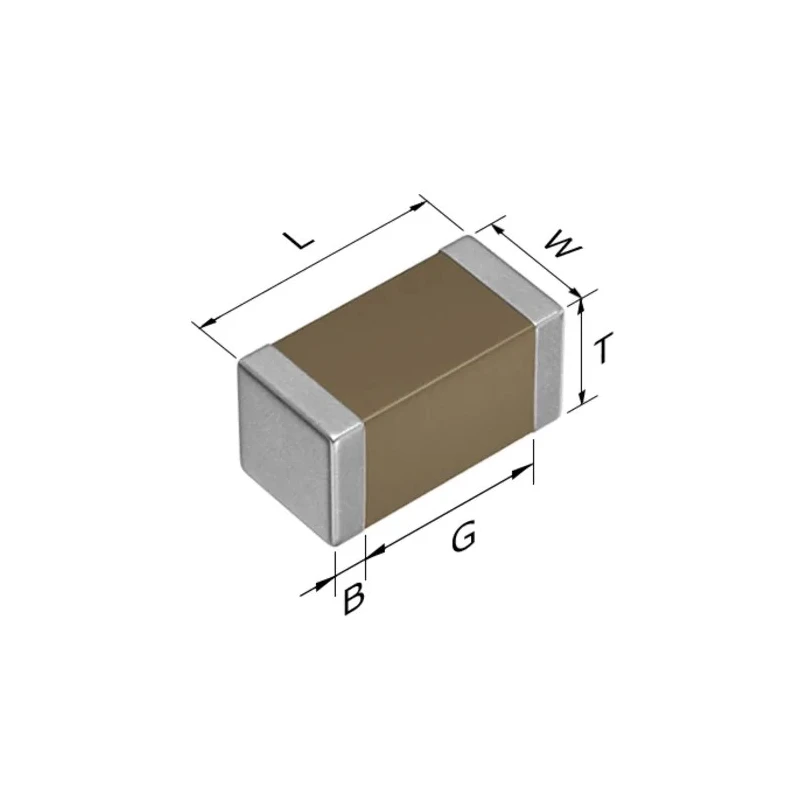

TDK 1 nF Multilayer Ceramic Capacitor 50V DC ±10% X7R Dielectric Surface Mount CGA3E2X7R1H102K080AE

Free Delivery in India | Lowest Global Shipping Charges

TDK 1 nF Multilayer Ceramic Capacitor 50V DC ±10% X7R Dielectric Surface Mount CGA3E2X7R1H102K080AE



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2X7R1H102K080AE
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	1nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X7R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

This multilayer ceramic capacitor provides reliable performance with an automotive standard of AEC-Q200 compliance.
The capacitor features a 0603 package size with dimensions of 1.6mm length, 0.8mm width, and 0.8mm height.
It operates efficiently in a temperature range from -55°C to 125°C, suitable for demanding automotive and industrial environments.
The flexible resin soft termination enhances mechanical endurance and absorbs thermal and mechanical stress.
Packaging is tape and reel for easy automated PCB mounting and assembly.
Designed to prevent ceramic body cracks and solder fatigue due to board bending and thermal shock.
Applicable in fail-safe battery line designs, keyless entry systems, and smart key devices requiring high reliability.

Product Description

TDK CGA3E2X7R1H102K080AE is a precision 1 nF multilayer ceramic capacitor with a voltage rating of 50V DC and ±10% tolerance, designed for surface mount technology in high-reliability applications.

This capacitor utilizes the X7R dielectric material, which offers stable electrical performance over a wide temperature range from -55°C to 125°C, conforming to automotive grade standard AEC-Q200.

The compact 0603 package size measuring 1.6mm in length, 0.8mm in width, and 0.8mm in height allows for efficient space utilization on printed circuit boards. Its soft termination series incorporates conductive resin layers that provide enhanced mechanical endurance by absorbing thermal and mechanical stresses, which significantly reduces the risks of ceramic cracking and solder fatigue.

Ideal for automotive, industrial, and consumer electronics including fail-safe battery circuits, keyless entry systems, and smart key devices, this capacitor ensures reliability even under demanding mechanical and temperature variations.

The product comes supplied in a tape and reel packaging format, facilitating automated pick-and-place assembly processes. This multilayer ceramic capacitor provides reliable performance with an automotive standard of AEC-Q200 compliance.

Compact 0603 package with 1.6mm length, 0.8mm width, and 0.8mm height. Operating temperature range from -55°C to 125°C for harsh environments. Soft termination technology enhances durability against thermal and mechanical stress.

Tape and reel packaging supports automated PCB assembly. Prevents ceramic body cracks and solder failures from board flexing and thermal shock. Suitable for fail-safe design in battery lines and automotive keyless entry applications.
