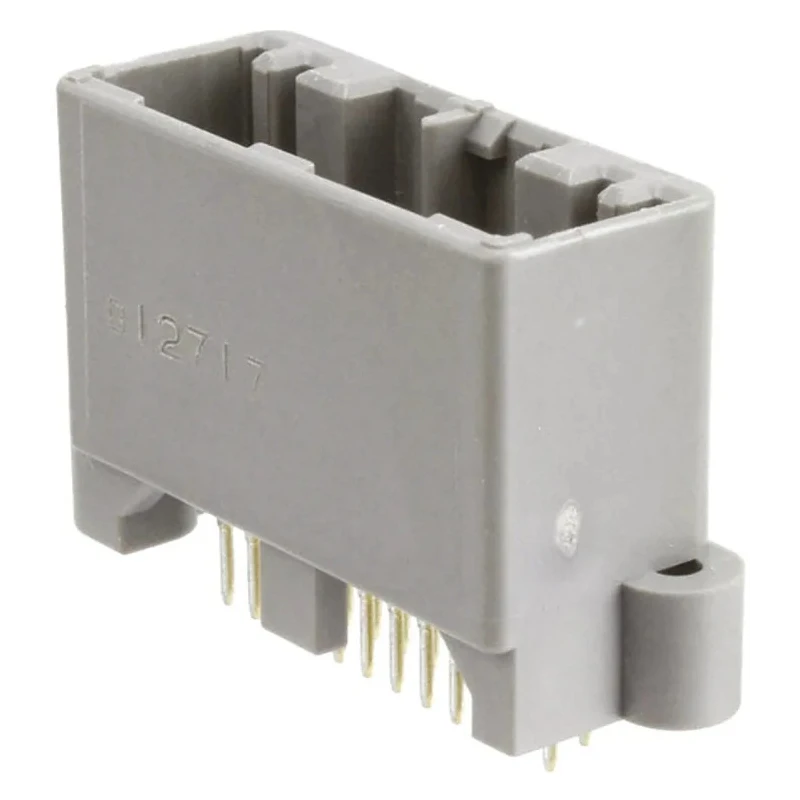

JAE MX34 Series Straight Through Hole PCB Header, 32 Contacts, 2.2 mm Pitch, 2 Row, Shrouded MX34

Free Delivery in India | Lowest Global Shipping Charges

JAE MX34 Series Straight Through Hole PCB Header, 32 Contacts, 2.2 mm Pitch, 2 Row, Shrouded MX34



Category PCB Connectors Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Straight
Current	3A
Model	MX34
Mount Type	Through Hole
Housing Material	Glass Filled Syndiotactic Polystyrene
Contact Material	Brass
Series	MX34
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.2mm
Contact Plating	Tin
Number of Contacts	32
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
For MX34 socket housings see typical stock numbers	690-9852

Key Features

The header features a 2.2 mm pitch with 2 rows of contacts for compact PCB mounting.
Constructed with glass-filled syndiotactic polystyrene housing that is shrouded for durability.
Contacts are brass with tin plating to ensure reliable electrical conductivity and corrosion resistance.
Designed for through-hole mounting with solder termination for secure assembly.
Operates reliably within -40°C to 85°C temperature range.
Rated for a maximum current of 3A suitable for automotive use cases.
Features a male contact gender with a preset-type double locking mechanism for secure mating.
This automotive connector supports reduced mating force and enhanced durability under external forces.

Product Description

JAE MX34 Series MX34 Model Straight Through Hole PCB Header with 32 contacts, 2.2 mm pitch, and 2 rows is engineered for reliable wire-to-board connections primarily in automotive and industrial electronics.

This shrouded header uses a glass-filled syndiotactic polystyrene housing delivering mechanical strength and environmental resistance. The male brass contacts plated with tin provide excellent conductivity and corrosion protection.

The through-hole mount and solder termination type design offer robust mechanical fastening suited to PCB assembly lines. The connector is rated for 3A current with operation from -40°C to 85°C, meeting typical automotive environmental requirements.

The MX34 series includes a preset-type double locking mechanism and durable box-type pin header construction to minimize mating force and ensure secure fastening even under vibrations and external forces.

This product is compatible with MX34 socket housings (stock number 690-9852) facilitating modular assembly and system integration. It is suitable for various industrial, automotive electronics, manufacturing, and electrical equipment applications requiring solid PCB wire connections.

The header features a 2.2 mm pitch with 2 rows of contacts for compact PCB mounting. Constructed with glass-filled syndiotactic polystyrene housing that is shrouded for durability. Contacts are brass with tin plating to ensure reliable electrical conductivity and corrosion resistance.

Designed for through-hole mounting with solder termination for secure assembly. Operates reliably within -40°C to 85°C temperature range. Rated for a maximum current of 3A suitable for automotive use cases. Features a male contact gender with a preset-type double locking mechanism for secure mating.

This automotive connector supports reduced mating force and enhanced durability under external forces. Ideal for industrial, automotive, and electronics manufacturing applications requiring reliable PCB connectivity. Compatible with MX34 socket housings (typical stock no. 690-9852) to complete connector systems.
