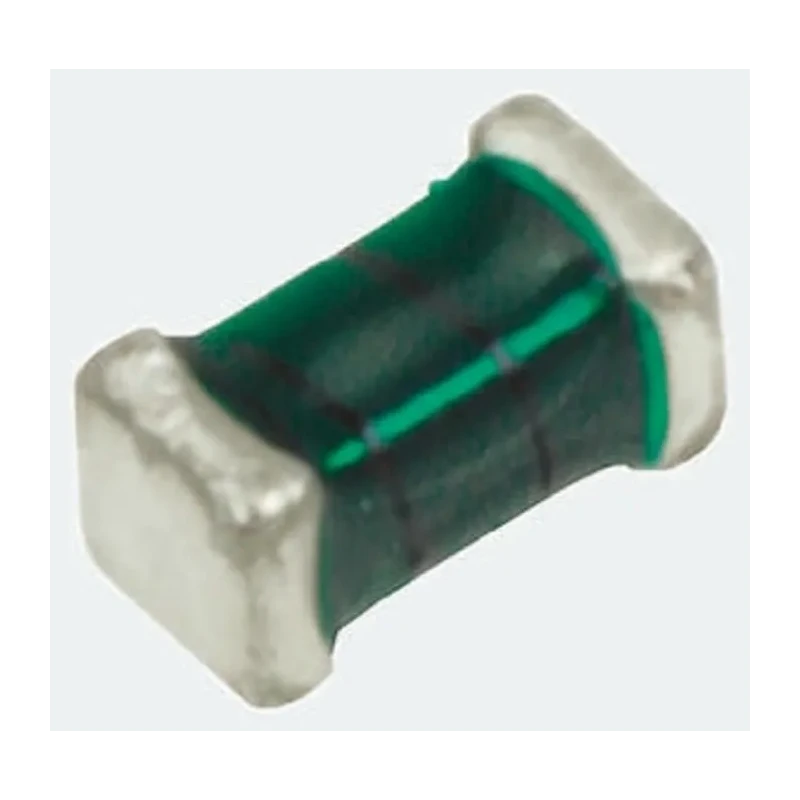

TDK Wirewound Surface Mount Inductor SIMID Series 0603 Package 47 nH ±5% 270 mA Idc Copper Plated Ceramic B82496C3470J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 1.6 x 0.8 x 0.8mm |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | B82496C3470J000 |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Copper Plated Ceramic |
| Inductance | 47nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 270mA |
| Maximum DC Resistance | 950mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.5GHz |
| Minimum Quality Factor | 14 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a copper plated ceramic core for enhanced performance.
- Compact 0603 package with dimensions 1.6 x 0.8 x 0.8 mm.
- Wirewound inductor construction ensures high mechanical stability.
- Maximum DC resistance of 950 mΩ and minimum quality factor of 14 for reliable operation.
- Operates over temperature range from -55°C to 150°C with AEC-Q200 automotive standard compliance.
- Maximum self-resonant frequency is 2.5 GHz, suitable for high-frequency applications.
- Surface mount termination style compatible with automated PCB assembly.
Product Description
TDK B82496C3470J000 is a Wirewound Surface Mount Inductor from the SIMID series, designed for high-frequency and compact electronic applications. It utilizes a copper plated ceramic core to provide high resonance frequency and excellent mechanical stability, making it ideal for use in automotive and industrial electronic circuits.
This inductor comes in a small 0603 package with precise dimensions of 1.6 mm length, 0.8 mm height, and 0.8 mm depth, enabling space-efficient PCB layouts. It offers an inductance value of 47 nH with a tolerance of ±5% and supports a maximum DC current of 270 mA.
The device features a maximum DC resistance of 950 mΩ and a minimum quality factor of 14, ensuring efficient energy storage and minimal losses. Its operating temperature range spans from -55°C to 150°C, fulfilling robust usage scenarios including automotive systems through compliance with AEC-Q200 standards.
The maximum self-resonant frequency of 2.5 GHz enables application in high-frequency power supplies, RF circuits, and signal processing equipment. The surface mount termination style facilitates optimized automated assembly processes, improving manufacturing efficiency.
Constructed with a copper plated ceramic core for enhanced electromagnetic performance. Compact 0603 package allows for miniature PCB designs and reliable placement. Wirewound construction delivers superior mechanical strength and stability.
Compliant with RoHS standards ensuring environmental safety. Ideal for electronic, automotive, industrial, and telecommunications applications.
This TDK SIMID Series inductor is a premium component suited for designers and engineers seeking reliable, low-loss inductors for surface mount technology in demanding electronics.
Explore more Surface Mount Inductors and electronic components at EnvMart for a comprehensive selection and trusted quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers an inductance value of 47 nH with a tolerance of ±5%.
It comes in a compact 0603 package with dimensions of 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth.
The maximum DC current rating for this unit is 270 mA.
The maximum self-resonant frequency is 2.5 GHz, making it suitable for high-frequency applications.
It operates over a temperature range from -55°C to 150°C.
This inductor is constructed with a copper plated ceramic core, enhancing its performance.
The maximum DC resistance is 950 mΩ, ensuring efficient energy storage.
It features a minimum quality factor of 14, which contributes to its reliability in operation.
The termination style is surface mount, which is compatible with automated PCB assembly processes.
Yes, it complies with RoHS standards and AEC-Q200 automotive standard, making it suitable for automotive applications.
It features a wirewound construction, which ensures high mechanical stability.
The inductor is packaged in tape and reel format for efficient handling and assembly.
