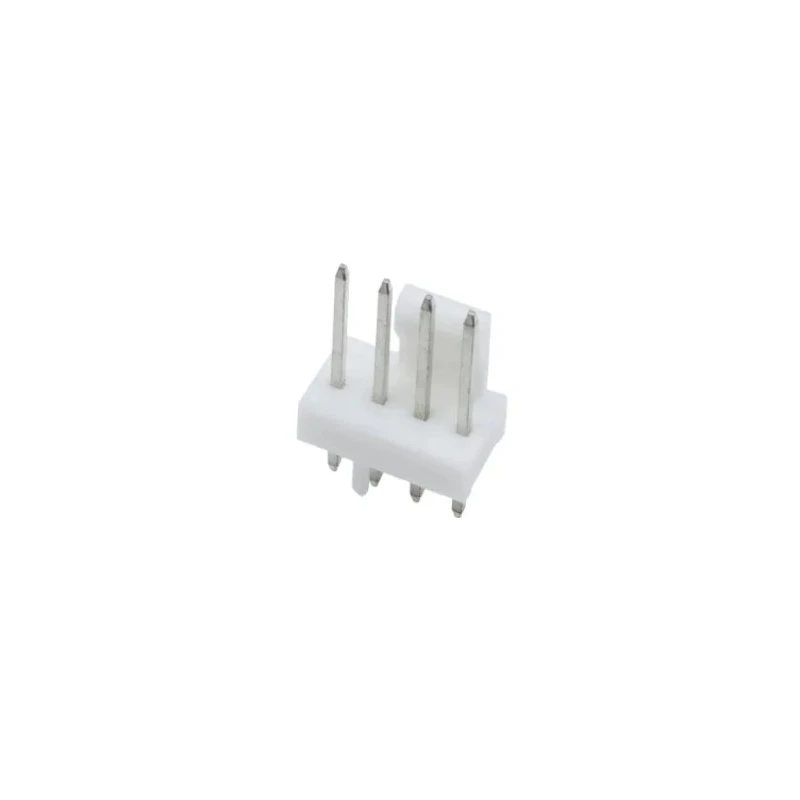

Molex KK 254 Series Straight Through Hole Pin Header 4 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 470531000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Molex |
| Orientation | Straight |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Copper Alloy |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| RS Stock No. | 144-8109Brand: MolexManufacturers Part No.: 470531000 |
| Contact Plating | Matte Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Supports a current rating of 4A for effective electrical connectivity.
- Constructed with durable nylon housing for reliability and insulation.
- Unshrouded and straight orientation facilitates easy alignment and soldering.
- Made with copper alloy contacts plated with matte tin for corrosion resistance.
- Designed for through-hole mounting on PCBs with a recommended thickness of 1.60 mm.
- Tail pin length is 3.5 mm, ensuring secure solder termination.
- Operates within temperature range of -40°C to 80°C for versatile environmental use.
- Rated for maximum voltage of 500 V suitable for robust electronic circuits.
Product Description
Molex 470531000 KK 254 Series Straight Through Hole Pin Header is a reliable component designed for wire-to-board connections in electronic assemblies. Featuring a 2.54 mm pitch and 4 contacts arranged in a single row, this unshrouded male pin header offers secure and stable connectivity within circuit boards.
The pin header utilizes copper alloy contacts with a matte tin plating to ensure corrosion resistance and excellent electrical conductivity. The housing is made from durable nylon material, providing insulation and longevity. It is engineered for through-hole mounting, delivering robust mechanical strength and stable electrical performance on a PCB of recommended 1.60 mm thickness.
Designed with a straight orientation, it simplifies board layout and assembly tasks. The termination type is solder, with tail pin lengths of 3.5 mm ensuring reliable electrical and mechanical connection. This component supports electrical ratings of 4 A current and 500 V voltage, suitable for various electronic equipment and industrial applications.
Operating reliably in temperatures ranging from -40°C to 80°C, the header is capable of withstanding demanding environmental conditions. Its unshrouded design enables easy visual alignment and maintenance access. The connector is compatible with other Molex KK series crimp housings, adding flexibility to PCB wire-to-board interface design.
Common applications include signal transmission in electronic circuits, automation systems, mechanical and electrical device assemblies, and automotive electronics. Its durability is enhanced by the rated 25 mating cycles, assuring repeated connection and disconnection without degradation.
Supports current of 4A and voltage of 500V for robust operation. Constructed from nylon housing and copper alloy contact with matte tin plating. Through-hole mount with 3.5 mm tail pin length for secure soldering. Unshrouded straight orientation for easy assembly and alignment.
Recommended PCB thickness is 1.60 mm for optimal fit.
Choose Molex KK 254 Series Pin Headers for dependable and versatile PCB connector solutions in industrial, automotive, and electronic manufacturing sectors. Explore more options from EnvMart's extensive PCB connector catalog for high-quality electronic components.
Explore more products in our PCB Pin Header category.
