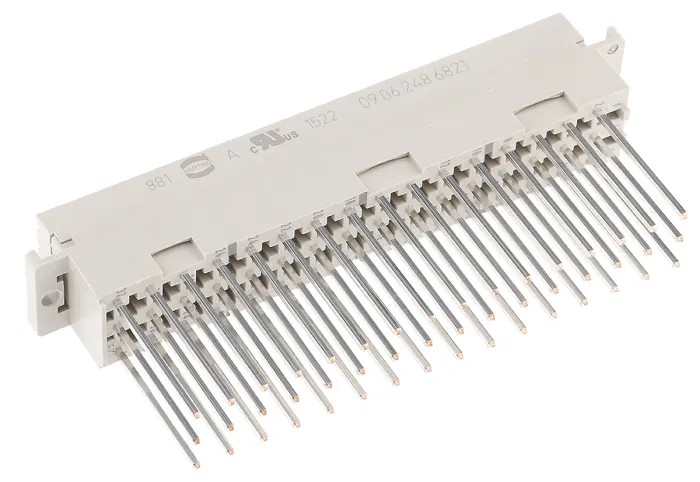

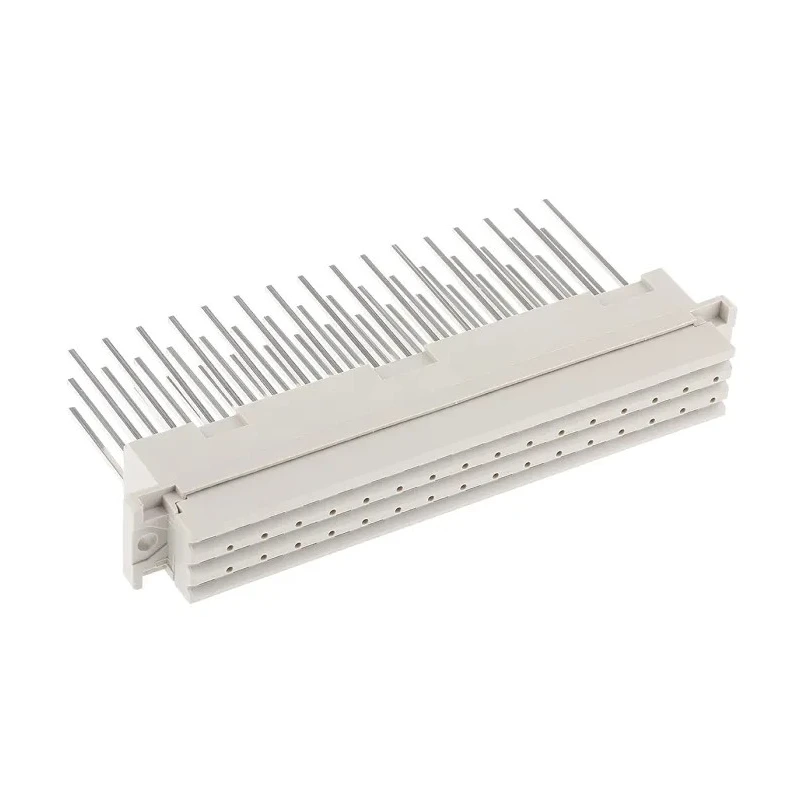

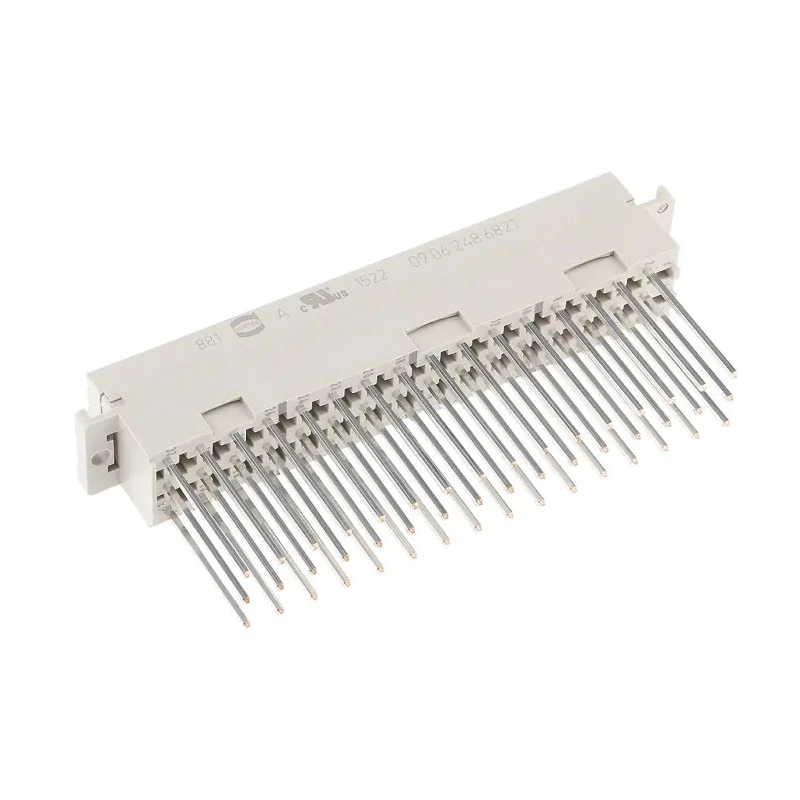

HARTING DIN 41612 48 Way 5.08 mm Pitch Type C/2 Wire Wrap Class C2 3 Row Female Straight Connector 09062486821
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Wire Wrap |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | Z, D, B |
Key Features
- Offers 48 gold-plated contacts arranged in 3 rows for high reliability.
- Features 5.08 mm pitch suitable for industrial backplane applications.
- Constructed with copper alloy contacts and polybutylene terephthalate housing.
- Capable of handling up to 6A per contact with maximum contact resistance of 15mΩ.
- Operates reliably in temperatures ranging from -55°C to +125°C.
- Termination type is wire wrap for secure and durable connections.
- Designed as a female, straight orientation connector for ease of installation.
- Class C2 ensures high contact performance in demanding environments.
Product Description
HARTING 09062486821 DIN 41612 Connector is a 48 way, 5.08 mm pitch, Type C/2 connector designed for wire wrap termination. This female, straight orientation connector is built to industrial standards featuring Class C2 contact performance, suitable for robust electronic and industrial applications.
The connector incorporates copper alloy contacts plated with gold over nickel to ensure low contact resistance up to 15mΩ and excellent conductivity. Its polybutylene terephthalate housing provides durability and resistance to harsh environments, supporting operating temperatures from -55°C to +125°C.
The 3-row configuration with Z, D, B row loading design ensures high density and reliable connections in backplane and rack systems. It supports a maximum current of 6A per contact, making it ideal for power and signal transmission in railway transportation, power supplies, control cards, and industrial machinery.
The wire wrap termination method facilitates secure and stable connections, widely used in electronic and manufacturing industries for high-reliability assemblies. The connector is manufactured in Germany, reflecting stringent quality control and compliance with industrial standards, offering long service life and dependable performance.
Offers 48 gold-plated contacts arranged in 3 rows for high reliability. Features 5.08 mm pitch suitable for industrial backplane applications. Constructed with copper alloy contacts and polybutylene terephthalate housing.
Capable of handling up to 6A per contact with maximum contact resistance of 15mΩ. Operates reliably in temperatures ranging from -55°C to +125°C. Termination type is wire wrap for secure and durable connections. Designed as a female, straight orientation connector for ease of installation.
Class C2 ensures high contact performance in demanding environments. Manufactured in Germany ensuring high-quality standards.
This HARTING DIN 41612 connector is well suited for industrial, railway transportation, manufacturing, and power supply applications requiring high-density, high-current, and durable connections. It offers reliable performance in demanding environments and supports efficient assembly with wire wrap termination.
Explore a wide range of DIN 41612 Connectors and accessories on EnvMart to find the right fit for your electronic and power interconnection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is capable of handling up to 6A per contact.
The pitch is 5.08 mm, suitable for industrial backplane applications.
It operates reliably in temperatures ranging from -55°C to +125°C.
The termination type is wire wrap, facilitating secure and durable connections.
This model features 48 contacts arranged in a 3-row configuration.
It is constructed with copper alloy contacts and a polybutylene terephthalate housing.
The maximum contact resistance is 15 mΩ.
This connector is a female type, designed for straight orientation.
It is suitable for applications in railway transportation, power supplies, control cards, and industrial machinery.
It is manufactured in Germany, ensuring adherence to high-quality standards.
The connector features a Z, D, B row loading design for high density and reliable connections.
It is designed with Class C2 contact performance, suitable for demanding environments.
