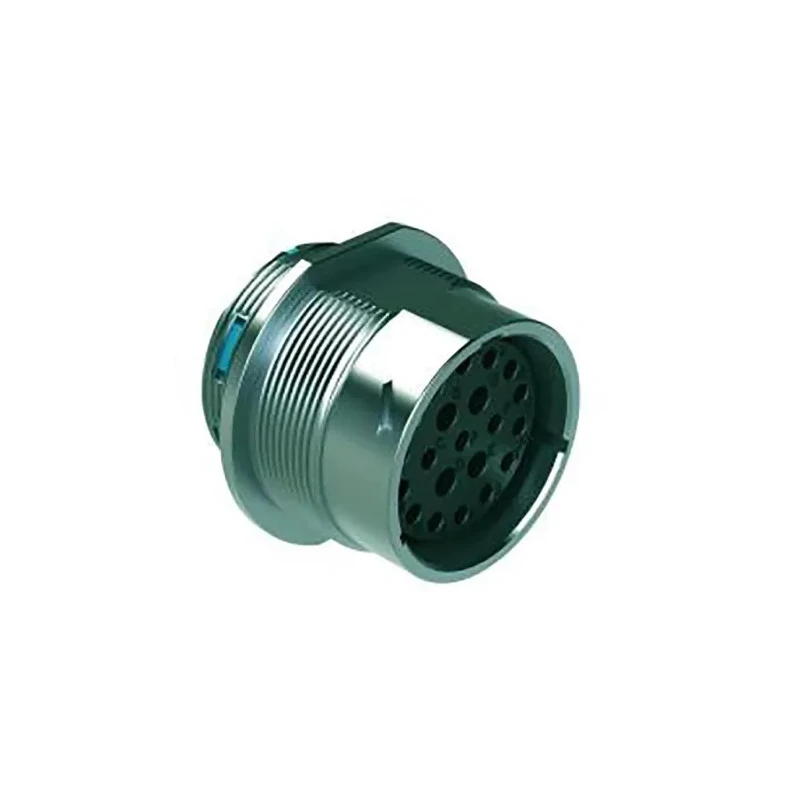

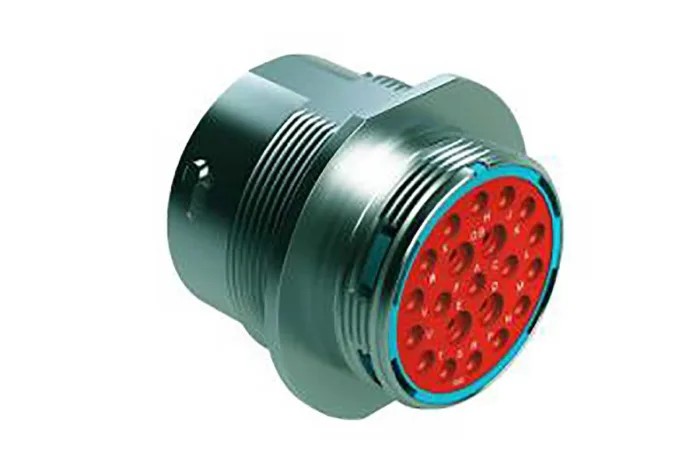

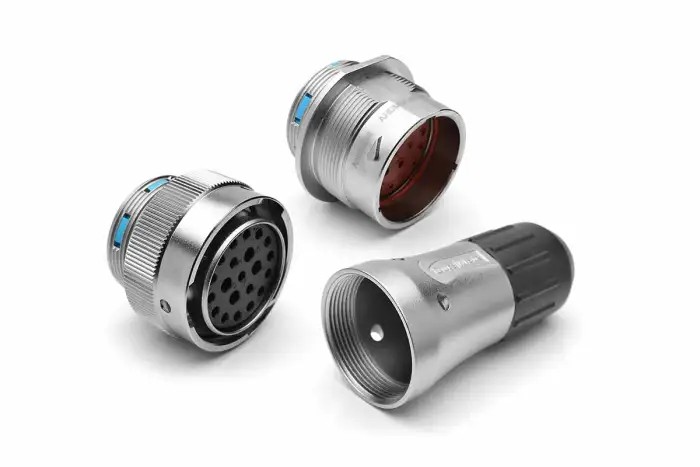

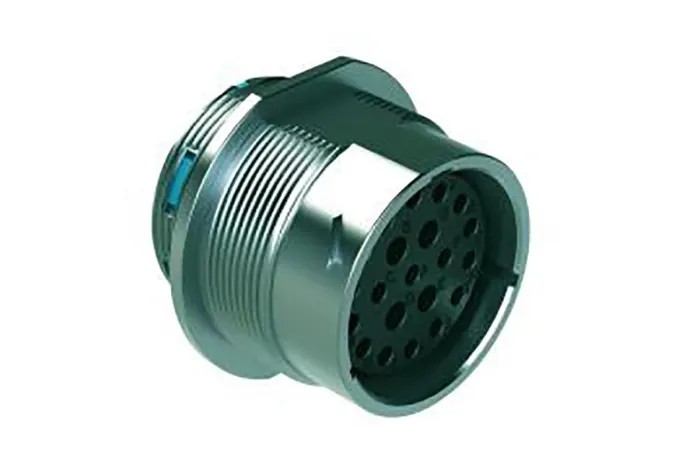

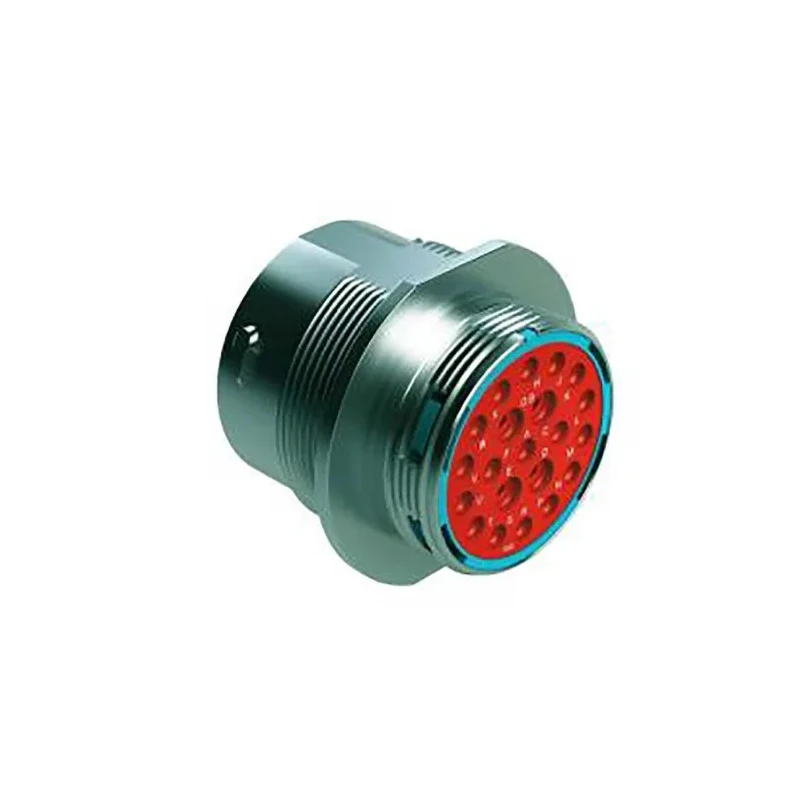

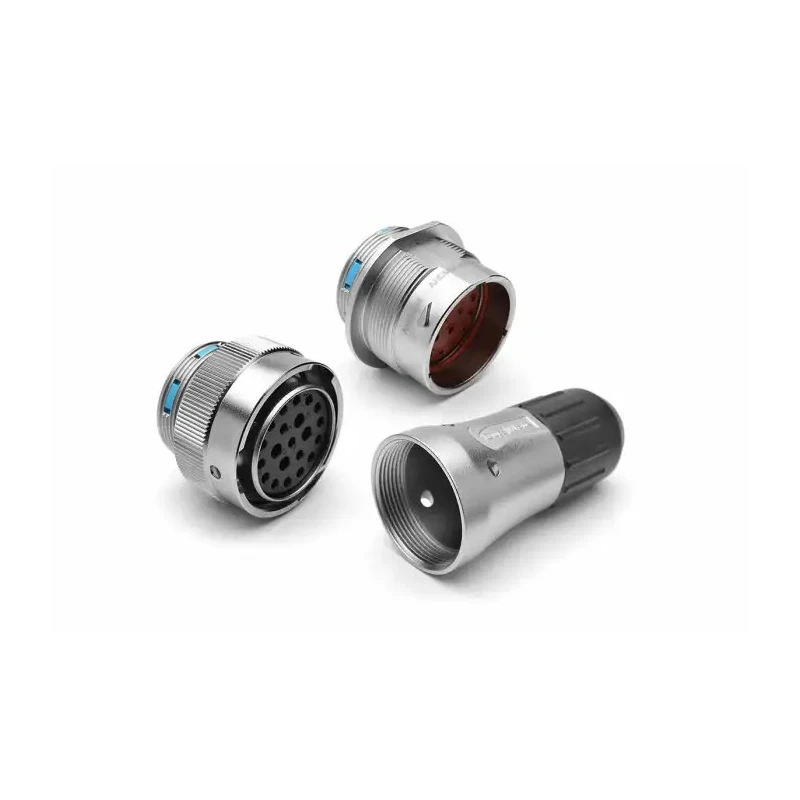

Amphenol Industrial Circular Connector, 21 Contacts, Cable Mount, Standard Size, Socket Female, 250V, 13/25A, Bayonet AHDM04

Amphenol Industrial AHDM04 Circular Connector is a robust multi-pin, environmentally sealed circular connector with 21 contacts, designed for cable mounting applications in heavy duty industrial environments. It offers a reliable quick-connect bayonet locking system suitable for harsh off-road and industrial power and signal transmission tasks.

The connector socket features a female contact gender and is housed in a rugged zinc alloy shell with a standard size 24 shell diameter. It supports a straight orientation with a crimp termination type, ensuring durable and secure cable connections.

The device operates at a rated voltage of 250 volts and supports current ratings of 13 and 25 amperes, providing flexibility for different load requirements. Its contact system uses nickel plating over zinc contacts to promote corrosion resistance and reliable conductivity in demanding usage conditions.

Designed for durability, the connector boasts IP67 and IP69K ingress protection ratings, making it resistant to dust, water, and high pressure wash downs, suitable for outdoor and industrial applications. It has an operating temperature range from minus 55 degrees Celsius up to 125 degrees Celsius, further enabling use in extreme environments.

This connector is part of the AHDM04 series, built for industrial circular connector usage in electronics and power connector applications. It is ideal for use in industrial, manufacturing, automotive, and heavy machinery environments where dependable connector performance is critical.

The connector features a zinc alloy housing for durable environmental resistance. It supports a straight orientation and is designed for crimp termination. Contact plating is nickel with zinc contact material ensuring reliable conductivity.

Suitable for harsh environments with an operating temperature range from -55°C to 125°C. Offers a quick-connect bayonet locking system for secure mating. Meets stringent industrial standards though no specific approvals are listed.

Ideal for off-road and industrial heavy duty applications requiring reliable multi-pin connections. Connector size is standard with shell size 24 and pole format 21 contacts. Rated current is dual 13 and 25 amperes for flexible usage scenarios.

Designed as a cable mount type making it compatible with various cabling solutions. Explore more Industrial Circular Connectors and related Electro-Mechanical components at EnvMart for your application needs.
