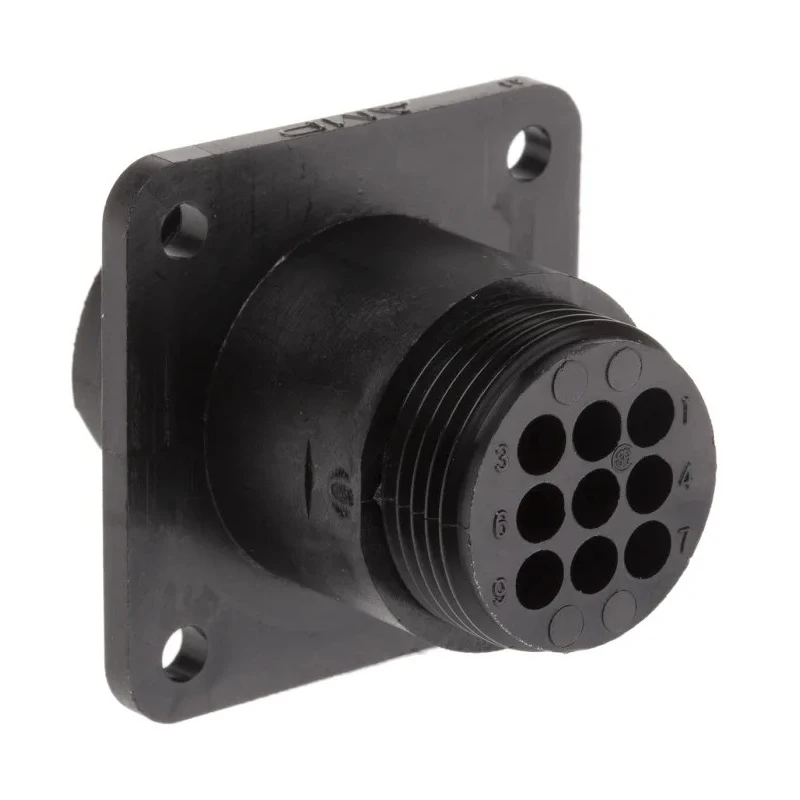

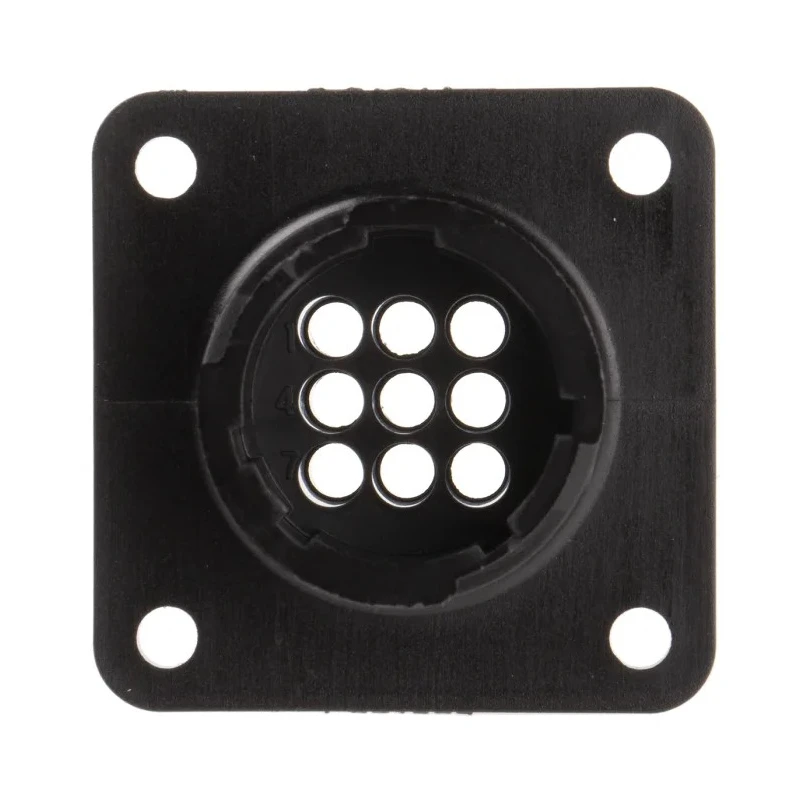

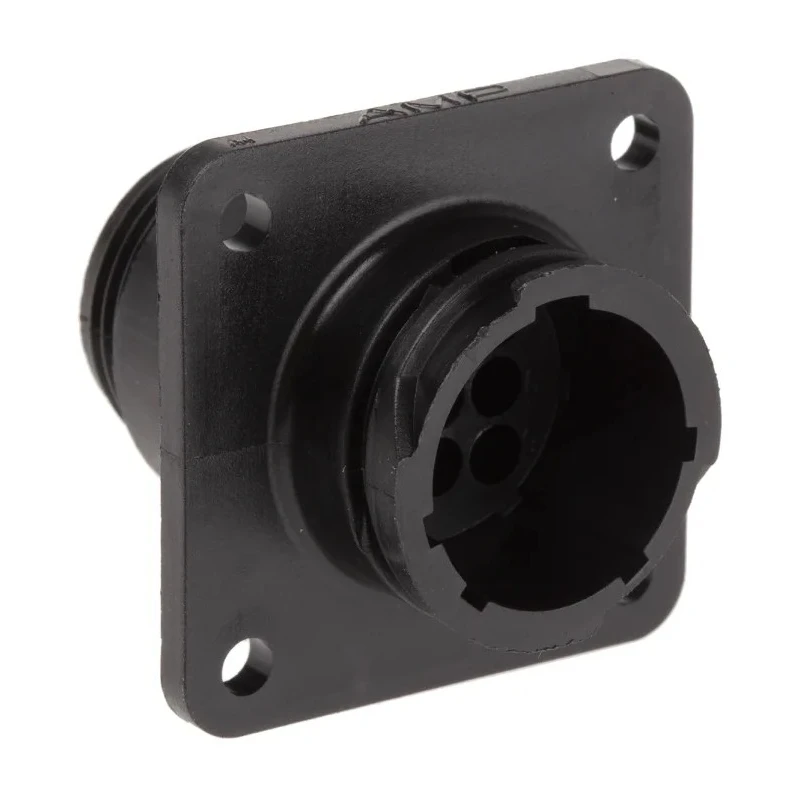

TE Connectivity Circular Connector, 9 Contacts, Panel Mount, Male, CPC Series, Socket, 13A, 250V, Thermoplastic 206705-1

The TE Connectivity 206705-1 Circular Connector is a robust panel mount industrial connector designed for reliable performance in demanding environments. Featuring 9 contacts, this CPC Series male socket is ideally suited for signal and low-power electrical applications in machinery, process control, instrumentation, HVAC, automation, lighting, and automotive sectors.

This connector supports up to 13A current and 250V voltage, making it suitable for moderate-power circuits. Its standardized housing is constructed from UL94V-0 rated thermoplastic material, offering enhanced mechanical strength while remaining lightweight and cost-effective compared to metal alternatives.

Quick connect/disconnect functionality is enabled by threaded mating, delivering secure locking and easy handling during installation or maintenance. Polarization ensures proper alignment and mating of halves, preventing incorrect connections.

The male socket configuration is advantageous for panel mounting and in-line receptacles, and crimp terminals simplify connection and support rapid repair. The connector is resistant to shock and vibration, maintaining stable operation across a wide operating temperature range from -55°C to 105°C, suitable for both indoor and outdoor environments, including harsh industrial sites.

Rugged thermoplastic housing designed for industrial and commercial use. Threaded mating and positive lock mechanisms for secure installation. Removable crimp contacts allow for field repair and reduced downtime. Standard density CPC Series, compatible with size 16 MultiMate pin and socket contacts.

Resistant to environmental stress, vibrations, and shocks. Used extensively in industrial machinery, instrumentation, HVAC, lighting, automotive, agricultural, and process control applications. Polarized to prevent mismating and ensure operational safety.

Operates reliably in extreme temperatures, from -55°C to 105°C.

Applications include industrial automation systems, agricultural equipment, process control consoles, panel wiring solutions, transportation vehicles, HVAC units, lighting installations, and any environment requiring robust and reliable circular connectors.
