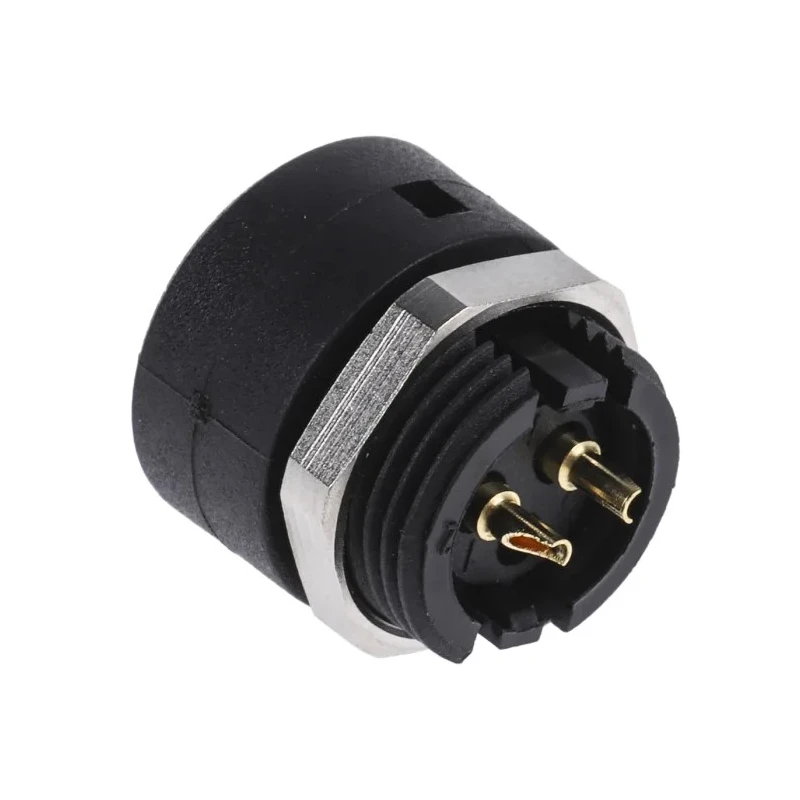

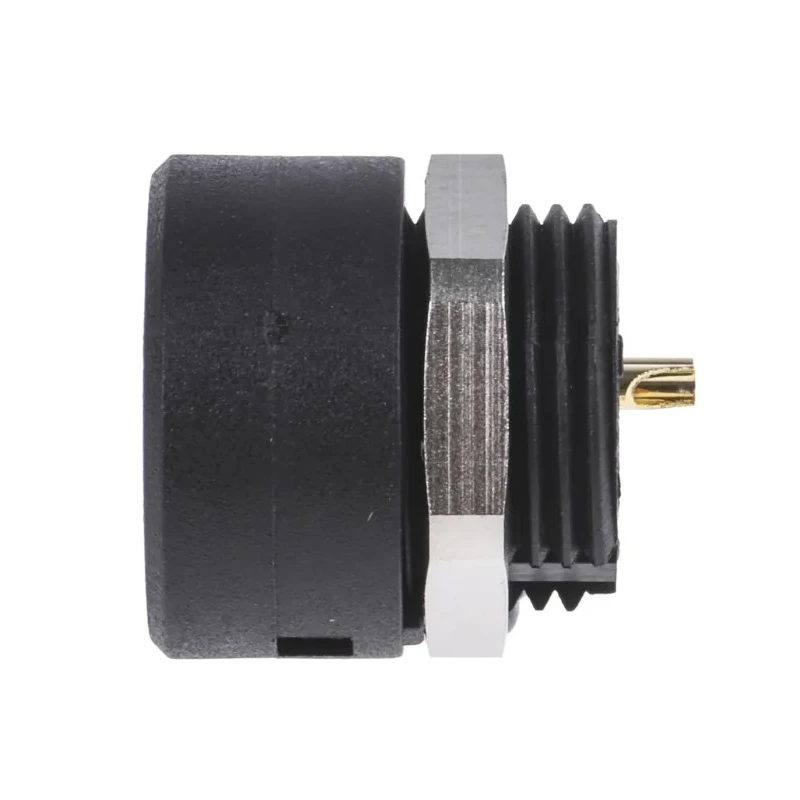

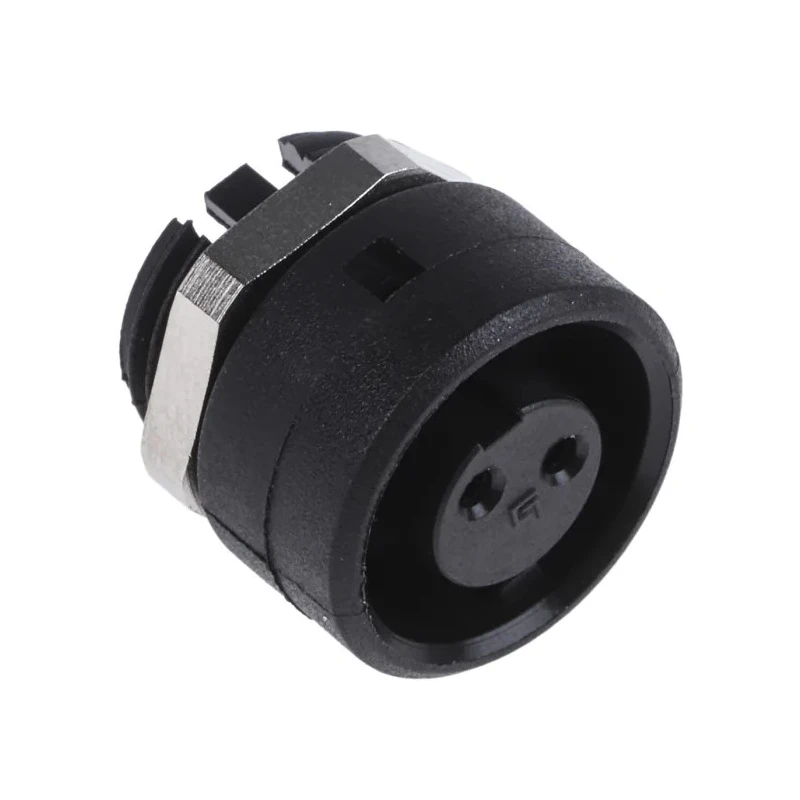

Binder Subminiature Circular Connector, 2 Contacts, Panel Mount, Female Socket, IP40, 125V, 4A, Bayonet 09-0974-00-02
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125.0V |
| Brand | Binder |
| Orientation | Straight |
| Current | 4A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Bronze |
| Series | 710 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Shell Size | 10 mm |
| Mating Type | Bayonet |
| Connector Size | Subminiature |
| Plug/Socket | Socket |
| Connector Diameter | 12 mm |
Key Features
- Features a compact bayonet-coupling metal body for robust and vibration-resistant connections.
- Suitable for panel mounting, providing reliable power and signal transmission in industrial systems.
- Offers IP40 ingress protection for dust resistance in internal electrical assemblies.
- Durable contacts are gold-plated bronze for optimal conductivity and long life over 500 mating cycles.
- Supports solder termination and accepts 24AWG wire sizes for flexible panel integration.
- Operating temperature range from -40°C to 85°C for reliable use across environments.
- Socket configuration with female contacts and straight orientation for standard control or power interfaces.
- Ideal for use in control systems, power distribution, and electrical panel applications where compact connectors are essential.
Product Description
The Binder 09-0974-00-02 is a subminiature, panel-mount female circular connector designed to deliver secure and reliable connectivity in demanding electronic and industrial applications. Part of the 710 Series, this connector is engineered with a compact metal shell and a bayonet-coupling mechanism, ensuring not just durability but also resistance to accidental disconnection caused by vibration or repeated mating cycles.
This connector features two gold-plated bronze female contacts, rated for up to 4A per contact at 125V AC, making it suitable for both power and signal applications. The IP40 rating provides basic dust protection for installations in controlled environments, such as enclosures, panels, control cabinets, and other protected areas in electrical or automation systems.

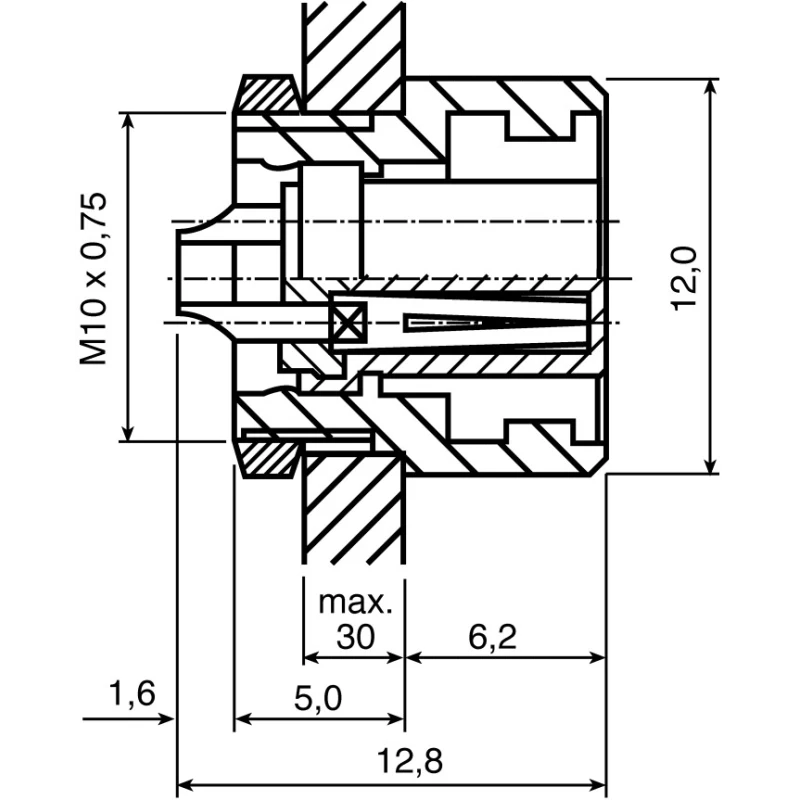

Installation is straightforward with a panel mounting format and solder termination, offering compatibility with 24AWG wire sizes. Its straight orientation and subminiature shell size (10 mm diameter, 12 mm connector diameter) enable integration where space is limited without compromising connection security or performance.
The robust metal housing, combined with gold-plated bronze contacts, ensures optimal conductive performance and resistance to corrosion, supporting more than 500 mating cycles for extended service life. The connector operates in a wide ambient temperature range from -40°C to 85°C, ensuring reliability for indoor or industrial enclosures that may experience significant thermal variation.
Key application areas include control systems, electrical and automation equipment, power distribution panels, interface modules, and compact electronic assemblies where panel-mounting, dust resistance, and consistent connection quality are essential.
To discover more products from Binder or to browse a wide range of industrial electronic connectors, explore the Industrial Circular Connectors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 125V and 4A per contact, making it suitable for both power and signal applications.
It features a panel mount design, allowing for secure installation in various applications.
The connector has an IP40 rating, providing basic dust protection for internal electrical assemblies.
The housing is made of metal, while the contacts are gold-plated bronze for optimal conductivity.
It operates within a temperature range of -40°C to 85°C, ensuring reliability across various environments.
This connector features two female contacts, suitable for various applications requiring compact connections.
The shell size is 10 mm in diameter, with a total connector diameter of 12 mm, making it a subminiature design.
It supports solder termination, which allows for flexible panel integration with 24AWG wire sizes.
It is ideal for use in control systems, power distribution, and electrical panel applications where compact connectors are essential.
This model uses a bayonet mating type, providing secure and vibration-resistant connections.
It supports over 500 mating cycles, ensuring a long service life in demanding applications.
The connector is manufactured in Germany, reflecting its quality and engineering standards.
