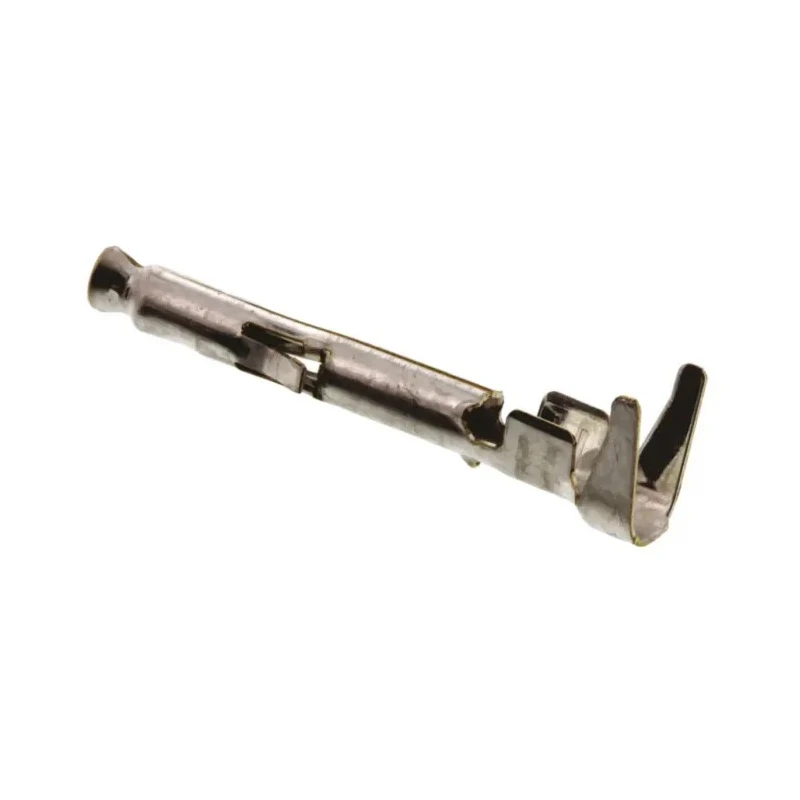

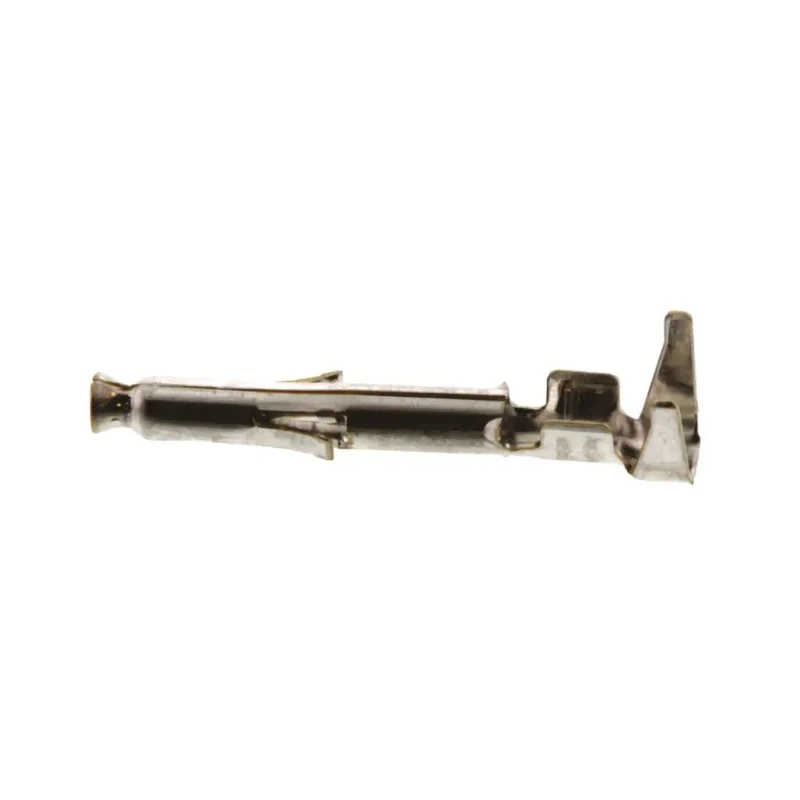

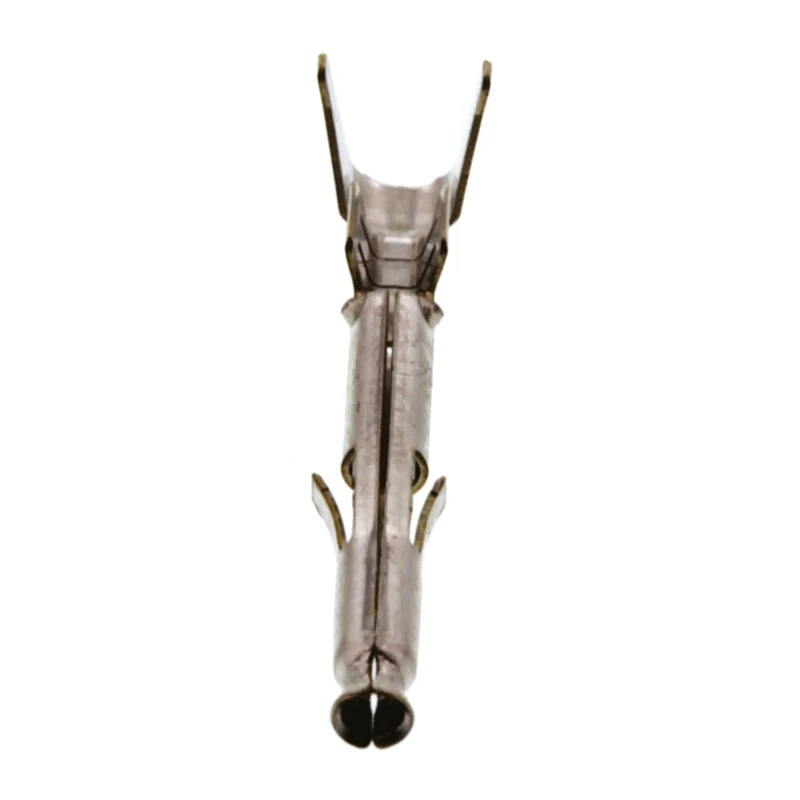

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 22-18 AWG Wire Size 105°C 170366-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 170366-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from brass contact material with tin plating for reliable electrical conductivity.
- Designed for Mini-Universal MATE-N-LOK connector housings providing secure connections.
- Suitable for crimp termination applications ensuring durable and robust contact.
- Maximum contact resistance of 10 milliohms for efficient signal transmission.
- Operating temperature range from -20°C to 105°C suitable for a wide range of environments.
- Rated for 7A current carrying capacity and 600 VAC/DC operating voltage.
- Ideal for use in consumer electronics, commercial HVAC, power supplies, lighting, medical, and security applications.
- Female contact gender designed for wire to wire connector systems.
Product Description
TE Connectivity 170366-1 Mini-Universal MATE-N-LOK Series female crimp terminal offers a robust and reliable solution for wire-to-wire electrical connections with a 7A current rating and compatibility with 22 to 18 AWG wires.
This crimp terminal is fabricated from brass with tin plating to ensure excellent conductivity and corrosion resistance. It is engineered for secure and stable connections within Mini-Universal MATE-N-LOK connector housings, commonly used in electronic components assemblies.
With a maximum contact resistance of 10 milliohms and a termination type of crimp, this terminal guarantees low resistance paths and mechanical stability in the electrical system. The terminal supports operation in temperatures ranging from -20°C to 105°C, making it suitable for challenging industrial, commercial, and consumer environments.
Applications include consumer electronics, commercial HVAC units, power supply units, portable devices, lighting installations, medical equipment, and security systems.
The Mini-Universal MATE-N-LOK connector system provides a reliable electrical and mechanical interface with consistent performance guaranteeing quality and safety standards compliance. This product is manufactured in China and designed to meet demanding operational conditions without certifications stated.
Constructed from brass contact material with pre-tin plated finish for durability. Compatible with Mini-Universal MATE-N-LOK connector housings for streamlined integration. Crimp termination ensures secure mechanical and electrical connections.
Rated current capacity of 7A allows for moderate power applications. Operating temperature range from -20°C to 105°C supports versatile environments. Maximum contact resistance limited to 10 milliohms enhances electrical performance.
Suitable for wire sizes 22 AWG minimum to 18 AWG maximum with corresponding cross-sectional areas of 0.3 to 0.9 mm². Explore EnvMart's wide selection of electronic connector solutions to find compatible components and tooling for your industrial and commercial assembly needs.
Explore more products in our Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a current rating of 7A, suitable for moderate power applications.
It is compatible with wire sizes ranging from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²).
The maximum operating temperature for this terminal is 105°C, allowing it to function in a wide range of environments.
This terminal uses a crimp termination type, ensuring secure mechanical and electrical connections.
The maximum contact resistance is limited to 10 milliohms, enhancing electrical performance.
It is constructed from brass contact material with a tin plating for reliable electrical conductivity and corrosion resistance.
This terminal is suitable for applications in consumer electronics, commercial HVAC, power supplies, lighting, medical equipment, and security systems.
This connector features a female contact gender designed for wire-to-wire connections.
This product is manufactured in China.
It is designed for use with Mini-Universal MATE-N-LOK connector housings, ensuring secure connections.
The minimum operating temperature for this terminal is -20°C, making it suitable for various environmental conditions.
The model number of this crimp terminal is 170366-1, part of the Mini-Universal MATE-N-LOK series.
