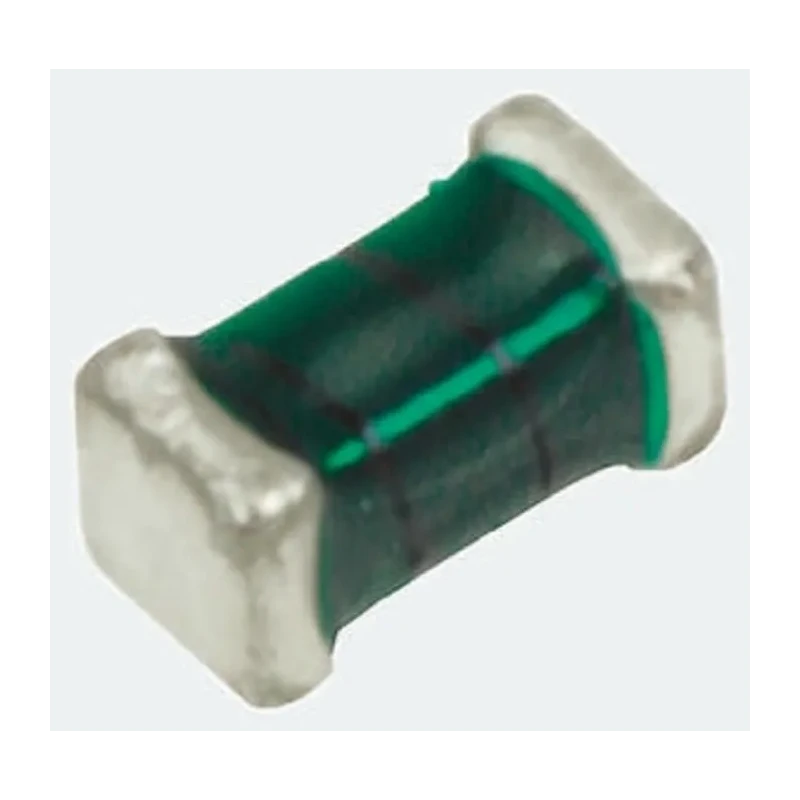

TDK SIMID 0603 Wirewound Surface Mount Inductor with Copper Plated Ceramic Core 68 nH ±5% 230 mA Idc Q:14 B82496C3680J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 1.6 x 0.8 x 0.8mm |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | B82496C3680J000 |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Copper Plated Ceramic |
| Inductance | 68nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 230mA |
| Maximum DC Resistance | 1.3Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2GHz |
| Minimum Quality Factor | 14 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a copper plated ceramic core for enhanced performance and stability.
- Offers high mechanical stability suitable for industrial applications.
- Operates reliably within temperature ranges from -55°C to 150°C.
- Has a low maximum DC resistance of 1.3 ohms ensuring minimal power loss.
- Supports a high self-resonant frequency of up to 2 GHz for high-frequency circuits.
- Complies with RoHS standards and meets automotive AEC-Q200 requirements.
- Constructed using wirewound technology for precision inductance.
- Compact dimensions of 1.6 x 0.8 x 0.8 mm fitting modern PCB designs.
Product Description
TDK B82496C3680J000 is a precision wirewound surface mount inductor designed for advanced electronic circuit applications. This inductor, part of the SIMID series, features a copper plated ceramic core providing excellent mechanical stability and high resonance frequency performance. Packaged in a standard 0603 case measuring 1.6 x 0.8 x 0.8 mm, it is ideal for compact and high-density PCB assemblies.
The inductor supports an inductance value of 68 nH with a tolerance of ±5% and can handle a maximum DC current of 230 mA while maintaining a maximum resistance of 1.3 ohms. Its high self-resonant frequency of 2 GHz and minimum quality factor of 14 make it suitable for high-frequency power and signal filtering applications.
Operating temperature ranges from -55°C to 150°C allow this component to perform reliably in demanding environments, including automotive electronic systems due to its AEC-Q200 qualification. The termination style is surface mount, facilitating automated assembly processes with tape and reel packaging provided for volume production efficiency.
Features a copper plated ceramic core for durable and stable inductance. Compact 0603 package size optimizes space savings in PCB design. Meets stringent automotive AEC-Q200 standards for reliability. High maximum DC current rating of 230 mA supports robust circuit designs.
Low DC resistance minimizes power losses and heat generation. Wide operating temperature range enables use in harsh conditions. Wirewound construction provides precision inductance and quality factor. RoHS compliant ensuring environmentally friendly manufacturing.
This TDK SIMID series wirewound surface mount inductor is well suited for industrial, electronic manufacturing, telecommunications, automotive, and high-frequency circuit applications. Explore more Surface Mount Inductors and electronic components at EnvMart to meet diverse design and production requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 68 nH with a tolerance of ±5%.
It has compact dimensions of 1.6 x 0.8 x 0.8 mm, making it suitable for modern PCB designs.
This inductor can handle a maximum DC current of 230 mA.
The maximum DC resistance is 1.3 ohms, which helps minimize power loss.
It supports a high self-resonant frequency of up to 2 GHz, suitable for high-frequency applications.
The operating temperature range is from -55°C to 150°C, allowing reliable performance in harsh conditions.
It is constructed using wirewound technology, providing precision inductance.
This model complies with RoHS standards and meets automotive AEC-Q200 requirements.
The termination style is surface mount, which facilitates automated assembly processes.
It is packaged in tape and reel format, which is efficient for volume production.
This inductor is suitable for industrial, telecommunications, automotive, and high-frequency circuit applications.
The minimum quality factor is 14, indicating its effectiveness in filtering applications.
