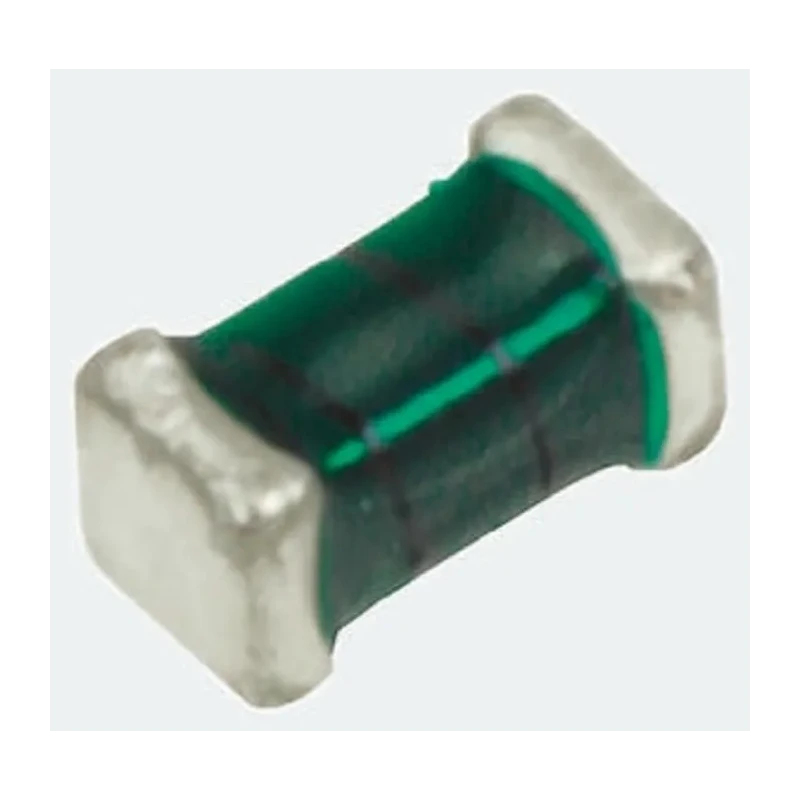

TDK SIMID 0603 Wirewound Surface Mount Inductor Copper Plated Ceramic Core 47 nH ±5% 270 mA Idc Q14 B82496C3470J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 1.6 x 0.8 x 0.8mm |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | B82496C3470J000 |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Copper Plated Ceramic |
| Inductance | 47nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 270mA |
| Maximum DC Resistance | 950mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.5GHz |
| Minimum Quality Factor | 14 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- This inductor has a compact 0603 surface mount package measuring 1.6 mm by 0.8 mm by 0.8 mm.
- Constructed with a copper-plated ceramic core for high mechanical stability and high resonance frequency.
- Capable of operating across a temperature range from -55°C up to 150°C.
- Designed according to automotive standard AEC-Q200, ensuring reliability in automotive applications.
- Offers a maximum DC resistance of 950 milliohms and a minimum quality factor (Q) of 14.
- Supplied in tape and reel packaging optimized for automated placement and manufacturing efficiency.
Product Description
TDK B82496C3470J000 SIMID Series Wirewound Surface Mount Inductor is engineered with a copper-plated ceramic core that delivers high resonance frequency and excellent mechanical stability. Its 0603 package dimensions of 1.6 x 0.8 x 0.8 mm make it suitable for compact electronic assemblies.
Offering an inductance of 47 nH with a tight tolerance of ±5%, this inductor supports a maximum DC current of 270 mA and maintains performance with a low maximum DC resistance of 950 mΩ. Its quality factor of 14 underscores efficient energy storage and low losses.
This surface mount component conforms to the automotive standard AEC-Q200, guaranteeing robust performance in demanding automotive environments with operating temperatures ranging from -55°C to 150°C.
The inductor is supplied in tape and reel packaging, facilitating seamless integration into automated production lines and enhancing manufacturing efficiency. This product features a copper-plated ceramic core for durability and stable performance.
The compact 0603 package size enables use in high-density PCB layouts. It withstands a broad temperature range suitable for industrial and automotive use. High mechanical stability and high resonance frequency ensure reliable operation.
RoHS compliant, making it environmentally friendly.
This wirewound surface mount inductor is ideal for applications in automotive electronics, power management, signal filtering, and other industrial electronics requiring reliable inductive components.
Explore the extensive range of Surface Mount Inductors at EnvMart for all your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 47 nH with a tolerance of ±5%.
The inductor has dimensions of 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height.
It can handle a maximum DC current of 270 mA.
The maximum DC resistance is 950 milliohms.
The inductor operates within a temperature range of -55°C to 150°C.
It has a minimum quality factor (Q) of 14, indicating efficient energy storage.
The core material is copper-plated ceramic, providing high mechanical stability.
Yes, it is RoHS compliant and designed according to the automotive standard AEC-Q200.
It is supplied in tape and reel packaging, which is optimized for automated placement.
The maximum self-resonant frequency is 2.5 GHz.
It is suitable for automotive electronics, power management, and signal filtering applications.
This inductor features a surface mount termination style.
