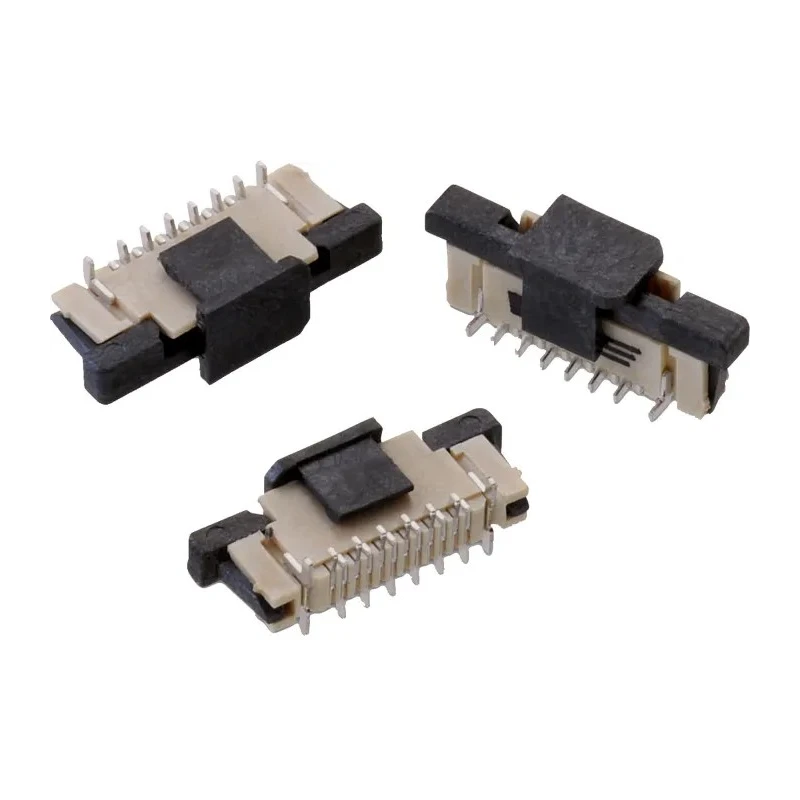

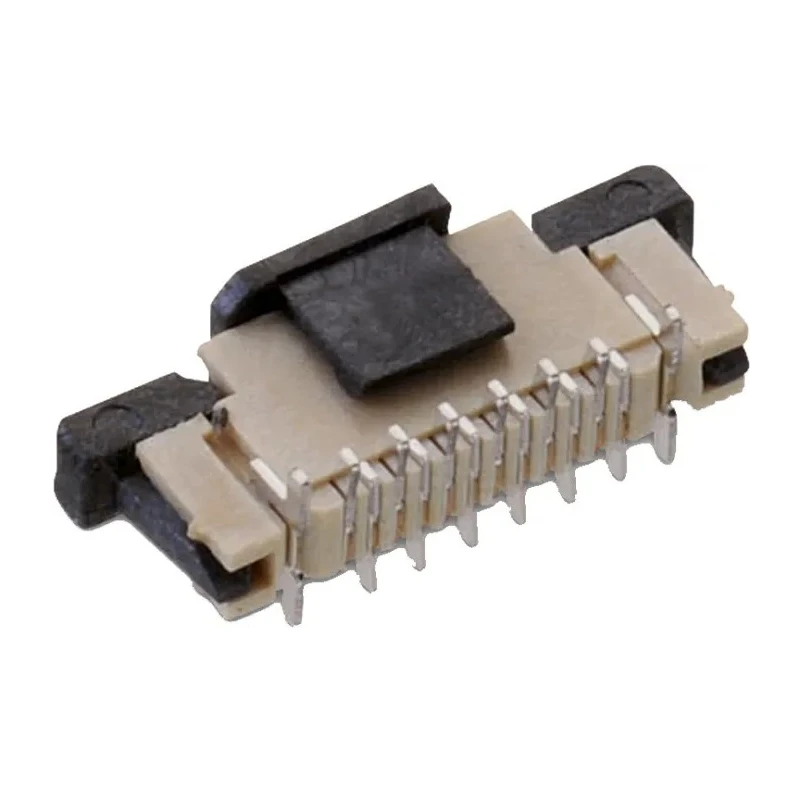

Wurth Elektronik WR-FPC 0.5 mm Pitch 22 Way Vertical Female FPC Connector ZIF Vertical Contact 50V 500mA 687322124422
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Vertical Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Solder Tabs | Brass |
| Insulator Material | LCP |
Key Features
- Features 22 contacts made of phosphor bronze for reliable electrical connection.
- Supports a current rating of 500mA and voltage rating of 50V.
- Uses a liquid crystal polymer housing for durability and insulation.
- Includes a locking mechanism with zero insertion force vertical contact type.
- Operates reliably between -25°C and 85°C temperature range.
- Surface mountable type designed for vertical orientation on PCB boards.
- Connector gender and contact gender are female for compatibility with corresponding male parts.
- Contact plating consists of tin over nickel to prevent corrosion and ensure good conductivity.
Product Description
Wurth Elektronik 687322124422 is a 22 Way Vertical Female FPC Connector featuring a 0.5 mm pitch and zero insertion force (ZIF) vertical contact termination type. This connector is designed for surface mount applications on PCBs, making it ideal for compact and high-density electronic designs.
The connector housing is made from liquid crystal polymer (LCP) which provides excellent mechanical strength, thermal stability, and electrical insulation. The phosphor bronze contacts ensure reliable electrical connections while the tin over nickel plating offers corrosion resistance and durability for long service life.
Rated for a maximum current of 500mA and voltage of 50V, this component supports a broad operating temperature range from -25°C to 85°C, suitable for various environmental conditions encountered in industrial, commercial, or consumer electronics manufacturing.
The zero insertion force (ZIF) design reduces mechanical stress during cable insertion, enhancing connector longevity and reliability. The connector also includes a locking mechanism to ensure firmness of connection once mated.
This product supports vertical orientation and female connector gender and contact gender, making it compatible with complementary male connectors and flat flexible cables in numerous electronics assembly use cases.
22 phosphor bronze contacts with tin over nickel plating for durability. Surface mount, vertical orientation for PCB integration. Zero insertion force vertical contact type with locking mechanism. Liquid crystal polymer housing for mechanical and electrical reliability.
Operating range: -25°C to 85°C, current rating 500mA, voltage 50V.
Manufactured in China, the Wurth Elektronik WR-FPC 687322124422 is widely used in electronic component assemblies, industrial equipment, telecommunications, and consumer electronics. It is suited for applications requiring compact, reliable, and high-density connector solutions.
Explore other FPC Connectors and electronics components on EnvMart for comprehensive procurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a current rating of 500mA and a voltage rating of 50V.
It operates reliably between -25°C and 85°C.
The housing is made from liquid crystal polymer (LCP), and the contacts are made of phosphor bronze with tin over nickel plating.
This model features 22 contacts.
It uses a zero insertion force (ZIF) vertical contact termination type.
Yes, it is designed for surface mount applications on PCB boards.
This connector is designed for vertical orientation.
It includes a locking mechanism that ensures a firm connection once mated.
The pitch size is 0.5 mm.
Both the connector gender and contact gender are female, making it compatible with corresponding male parts.
It is manufactured in China.
It is suitable for electronic component assemblies, industrial equipment, telecommunications, and consumer electronics.
