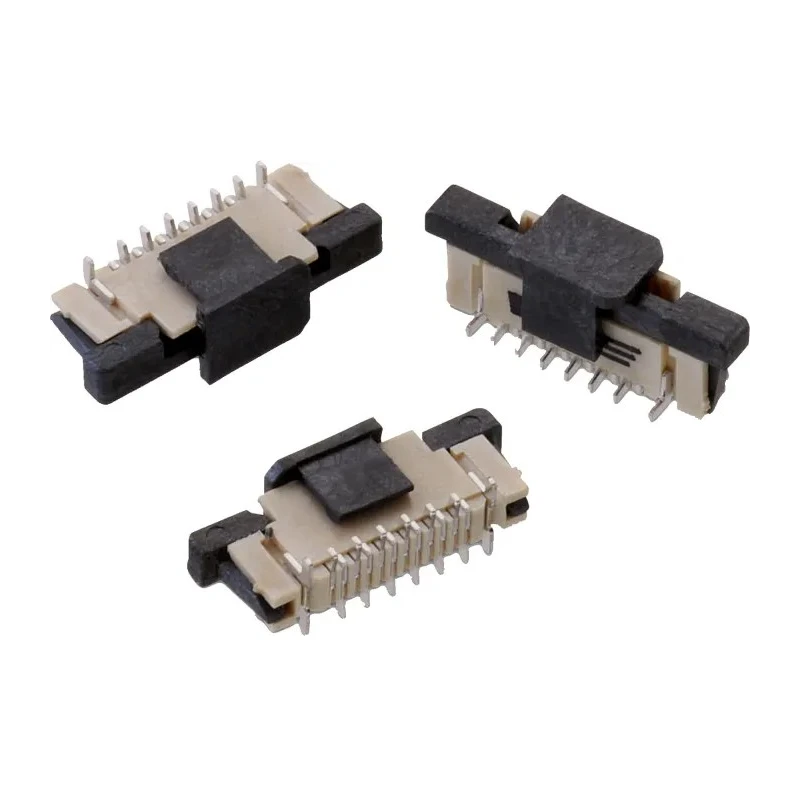

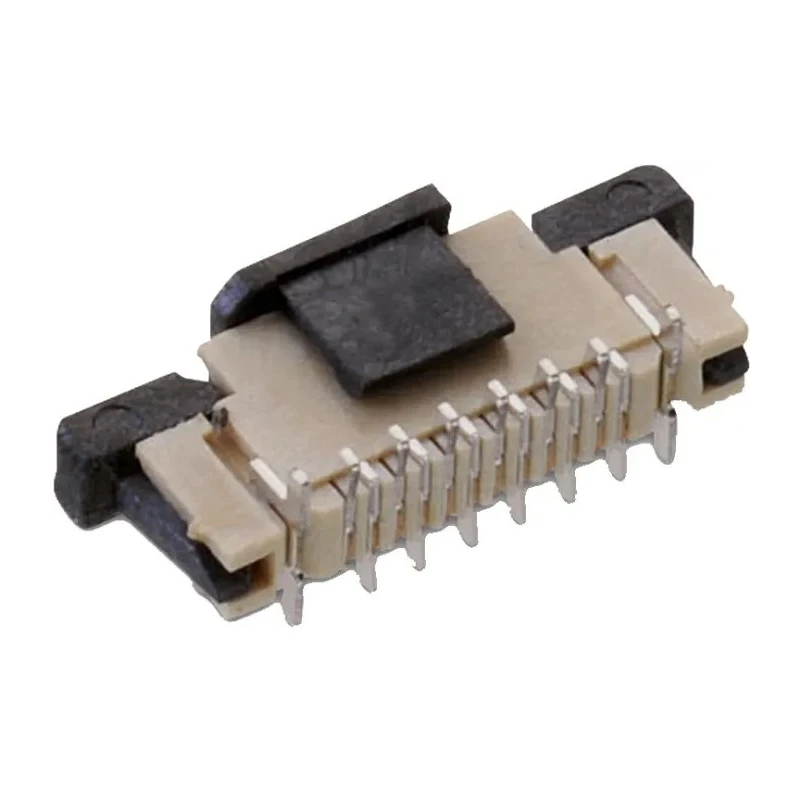

Wurth Elektronik WR-FPC 0.5 mm Pitch 34 Way Vertical Female FPC Connector ZIF Vertical Contact 50V 500mA 687334124422

Wurth Elektronik 687334124422 34 Way Vertical Female FPC Connector is an industrial-grade FPC Connector designed for reliable low-voltage electronic connections in various applications including electronics components, power connectors, and PCB assemblies. Featuring a 0.5 mm pitch and phosphor bronze contacts with tin over nickel plating, this connector supports currents up to 500mA and voltage up to 50V, making it suitable for medium-speed data and signal transmission.

The Zero Insertion Force (ZIF) vertical contact termination ensures minimal wear on contacts when inserting or removing flexible printed circuits (FPCs), enhancing connector longevity. The housing material is constructed from liquid crystal polymer, which provides excellent mechanical strength and resistance to high operating temperatures ranging from -25°C to 85°C, suitable for demanding industrial environments.

The connector features a locking mechanism that securely holds the FPC in place, preventing accidental disconnections during operation or maintenance. This surface mount type connector is compatible with standard SMT PCB assembly techniques, easing integration into mass production processes.

Applications of this connector include consumer electronics, telecommunications equipment, instrumentation, medical devices, and automotive electronics where compact, reliable, and durable cable connections are essential. The component is RoHS compliant and sourced from China, maintaining high manufacturing standards.

The connector has 34 female contacts spaced at 0.5 mm pitch ensuring reliable signal transmission. Phosphor bronze contact material with tin over nickel plating provides durability and corrosion resistance. Zero Insertion Force (ZIF) vertical contact termination minimizes wear and ensures easy cable insertion.

Supports currents up to 500mA and voltages up to 50V for low power electronic applications. Housing is made of liquid crystal polymer for high temperature resistance and mechanical strength. Operational temperature range from -25°C to 85°C suitable for various environmental conditions.

Includes a locking mechanism providing secure mating and preventing accidental disconnection. Surface mount type allows for easy PCB assembly using standard SMT processes. Manufactured in China ensuring consistent quality standards and performance.
