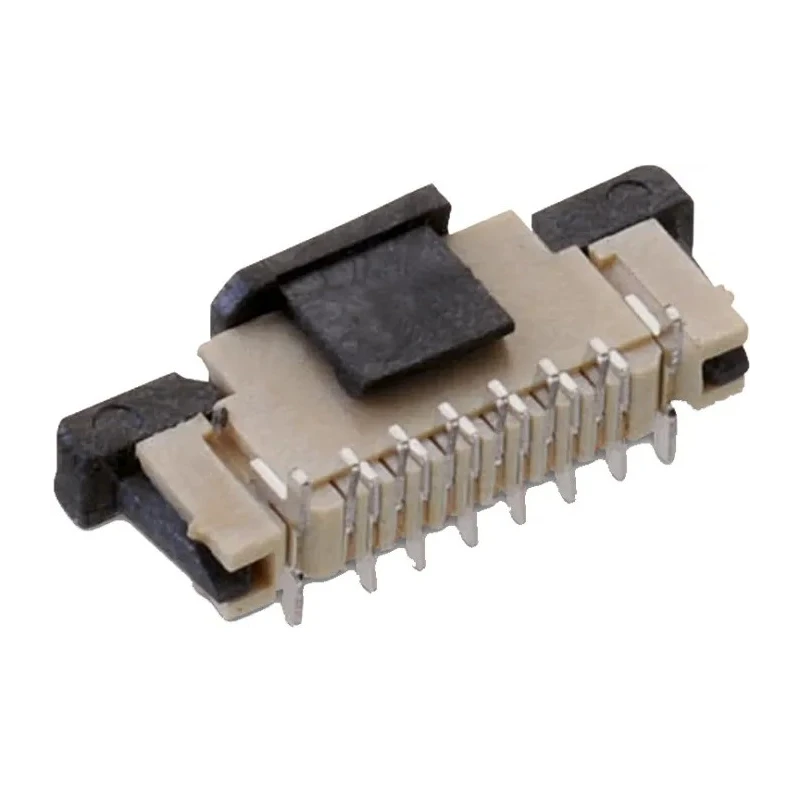

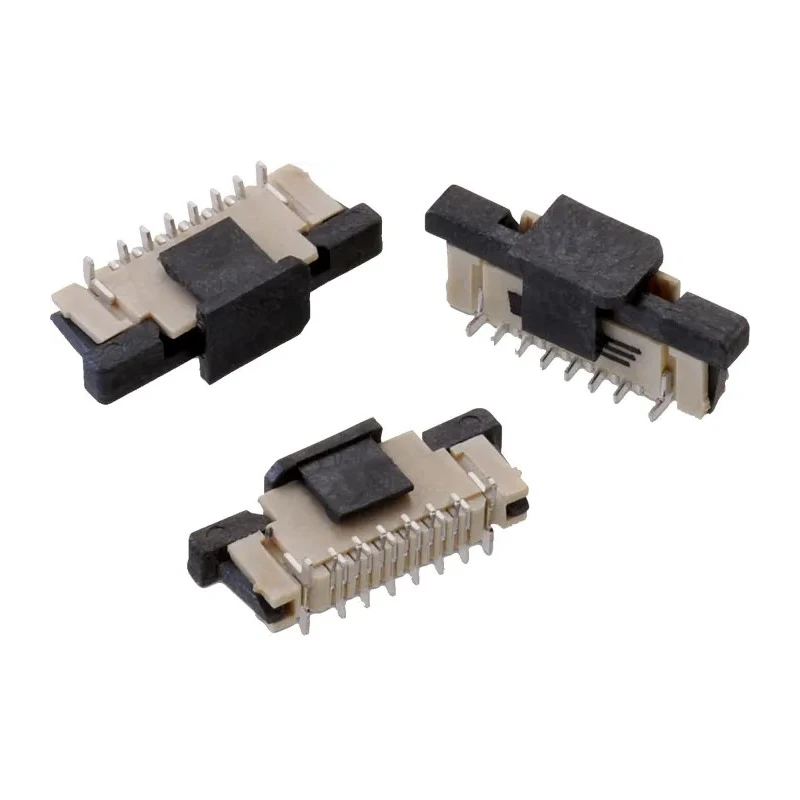

Wurth Elektronik WR-FPC 0.5 mm Pitch 28 Way Vertical Female FPC Connector ZIF Vertical Contact 50V 500mA 687328124422
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Vertical Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 28 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Solder Tabs | Brass |
| Insulator Material | LCP |
Key Features
- 0.5 mm pitch ensures precise contact spacing for FPC applications.
- Contains 28 contacts made from phosphor bronze material.
- Features zero insertion force (ZIF) vertical contact termination type.
- Surface mount type with locking mechanism and vertical orientation.
- Rated for 50 V voltage and 500 mA current capacity.
- Contact plating with tin over nickel for corrosion resistance.
- Operating temperature range from -25°C to 85°C.
- Housing made of durable liquid crystal polymer (LCP) material.
Product Description
Wurth Elektronik 687328124422 is a precision 28-way female FPC Connector featuring a 0.5 mm pitch and ZIF vertical contacts. It is specifically engineered to provide reliable connections in electronic assemblies with tight pitch requirements. The connector is designed with a vertical orientation and surface mount type, facilitating compact PCB layouts and ease of assembly.
Constructed with phosphor bronze contacts plated with tin over nickel, this connector offers excellent electrical conductivity and resistance to corrosion. The housing is made from liquid crystal polymer (LCP), providing high mechanical stability and heat resistance. Its brass solder tabs secure the connector firmly to the PCB, ensuring long-term durability under vibration and thermal cycling.
Operating safely at voltages up to 50 V and currents up to 500 mA, the connector includes a locking mechanism to prevent accidental disconnection, enhancing signal integrity. It reliably operates across a temperature range from -25°C to 85°C, making it suitable for a wide variety of industrial, manufacturing, and electronics applications.
This component is essential in fields such as consumer electronics, industrial automation, telecommunications, and automotive electronics where compact and robust connections are needed.
0.5 mm pitch ensures precise contact spacing for FPC applications. Contains 28 contacts made from phosphor bronze material. Features zero insertion force (ZIF) vertical contact termination type. Surface mount type with locking mechanism and vertical orientation.
Rated for 50 V voltage and 500 mA current capacity. Contact plating with tin over nickel for corrosion resistance. Operating temperature range from -25°C to 85°C. Housing made of durable liquid crystal polymer (LCP) material.
Includes brass solder tabs for secure PCB mounting. Explore other connector solutions and electronic components at EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a maximum voltage of 50V and a current capacity of 500mA.
It features a zero insertion force (ZIF) vertical contact termination type, which facilitates easy and reliable connections.
The pitch of this connector is 0.5 mm, ensuring precise contact spacing for FPC applications.
The contacts are made from phosphor bronze, while the housing is constructed from liquid crystal polymer (LCP).
It operates within a temperature range of -25°C to 85°C, making it suitable for various environments.
This connector contains 28 contacts, designed for efficient connectivity in electronic assemblies.
It supports surface mount type installation, which is ideal for compact PCB layouts.
Yes, it includes a locking mechanism to prevent accidental disconnection and enhance signal integrity.
The contact plating is tin over nickel, providing corrosion resistance and improved conductivity.
It is suitable for applications in consumer electronics, industrial automation, telecommunications, and automotive electronics.
The insulator material is liquid crystal polymer (LCP), which offers high mechanical stability and heat resistance.
This connector is manufactured in China.
