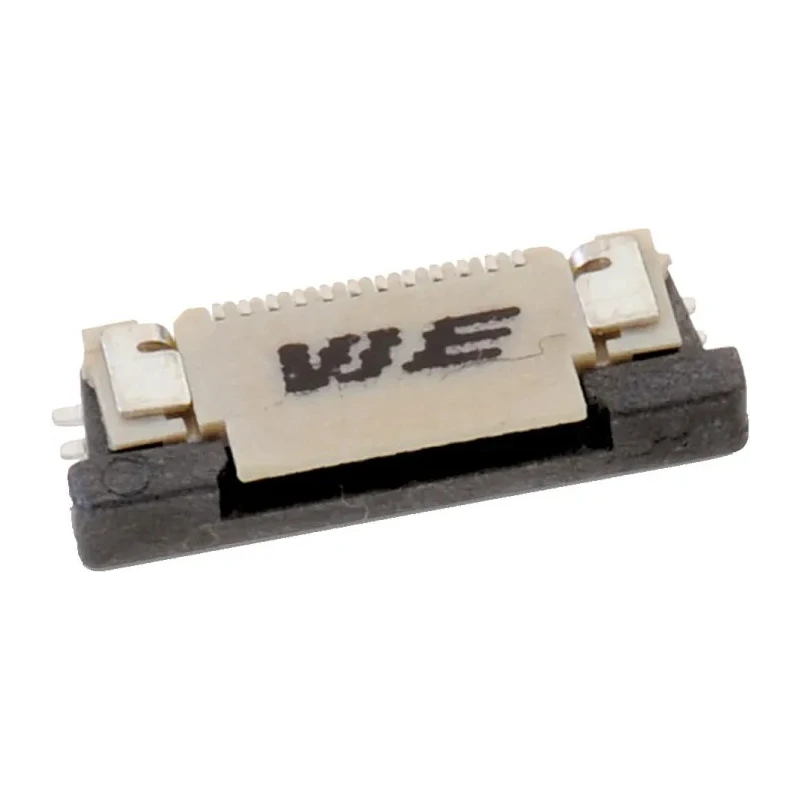

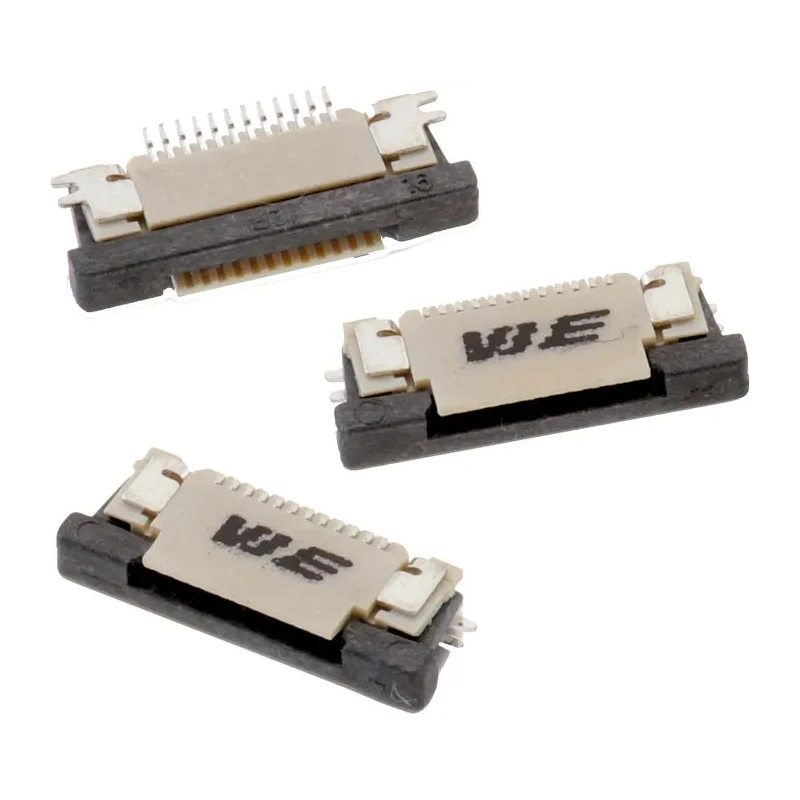

Wurth Elektronik WR-FPC 0.5 mm Pitch 33 Way Horizontal Female FPC Connector ZIF Top Contact 68713314022

Wurth Elektronik 68713314022 FPC Connector is a 0.5 mm pitch, 33 way horizontal female connector designed for surface mounting on PCBs. It features a zero insertion force (ZIF) top contact termination that minimizes wear on the connector contacts, making it ideal for repeated connections and disconnections in electronic assemblies.

The contacts are made from phosphor bronze, which provides excellent electrical conductivity and mechanical strength, and are plated with tin over nickel for additional corrosion protection. The housing is constructed from liquid crystal polymer (LCP), an engineering thermoplastic known for its high mechanical stability, heat resistance, and electrical insulating properties.

This connector operates reliably within a temperature range of -25°C to 85°C and is rated for a maximum voltage of 50V. It also includes a locking mechanism to secure the connection during use, ensuring signal integrity and preventing accidental disconnection.

The WR-FPC series connectors by Wurth Elektronik are widely used in electronic components assemblies, power connectors, and compact electronic devices requiring robust and low-profile interfacing. The 33 way configuration allows multiple signal lines or power connections within a compact footprint, facilitating high-density PCB designs and flexible layouts.

Manufactured to international standards, this connector is a reliable choice for industrial, laboratory, manufacturing, and electronics applications requiring precise, durable, and easy-to-mate FPC Connectors.

Constructed with phosphor bronze contact material ensuring durability. Surface mount type suitable for modern PCB assembly. Features a locking mechanism for secure connections. Contact plating uses tin over nickel for enhanced conductivity and corrosion resistance.

Housing made of liquid crystal polymer (LCP) providing excellent insulation and mechanical stability. Operating voltage rated at 50V with a temperature range from -25°C to 85°C. Designed with a top contact position and horizontal orientation for optimal layout.

Insertion force is zero insertion force (ZIF) type, minimizing wear during insertion/removal cycles. Suitable for use in electronic components, power and connectors applications. Manufactured in China maintaining consistent quality standards.
