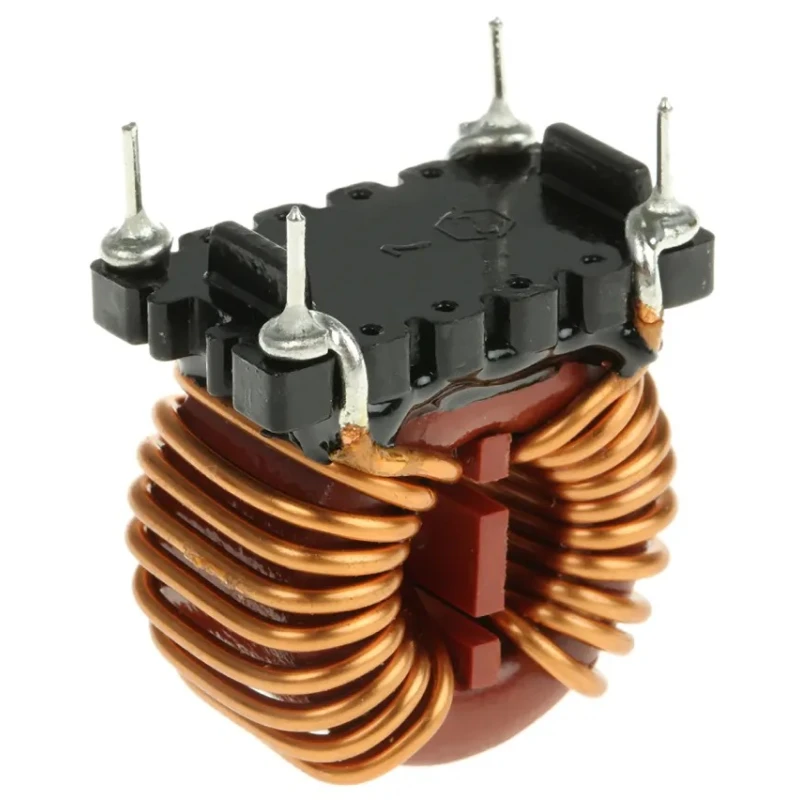

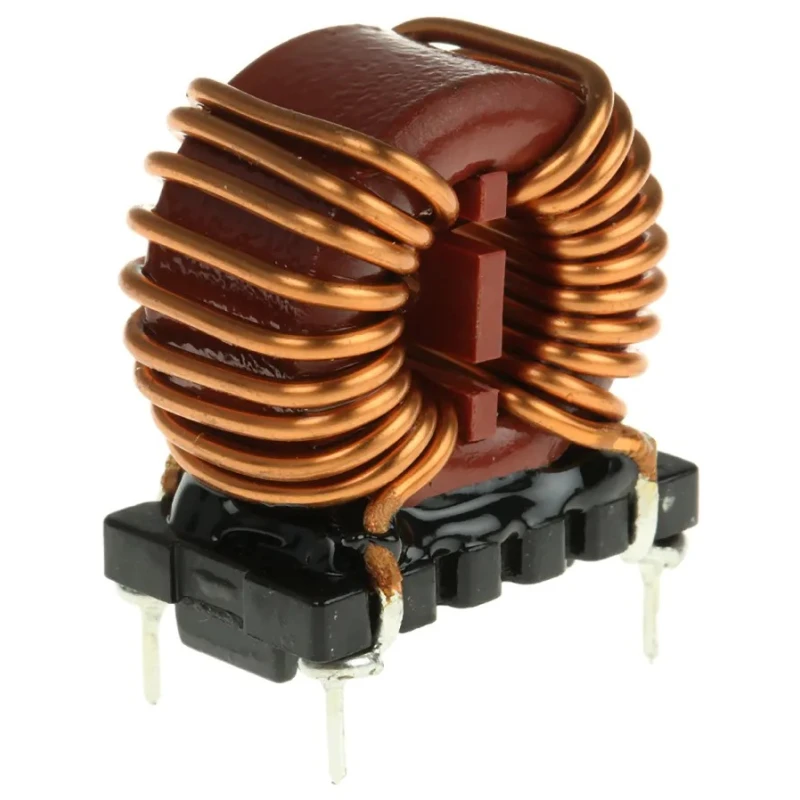

Wurth Elektronik 1 mH Manganese Zinc Leaded Inductor Radial 12 A IDC 9 mΩ RDC 1500V WE-CMB HC 7448251201

Wurth Elektronik 7448251201 is a 1 mH manganese zinc leaded inductor in a radial mount style designed to deliver reliable electrical performance in power filtering and noise suppression applications. It features a maximum DC current rating of 12 A and a low DC resistance of 9 mΩ, resulting in efficient operation with minimal energy loss.

The inductor has a compact form factor with dimensions including diameter 30 mm, height 35 mm, length 30.5 mm, width 22 mm and a lead pitch of 25 mm. The core material is manganese zinc, selected for its superior magnetic properties, enabling effective inductance and suppression of electromagnetic interference.

This component is suited for industrial and electronic applications such as power electronics filters, motor noise suppression, and devices lacking ground connections. Operating from -40°C to 125°C, it accommodates a wide range of environmental conditions. The device meets UL-94V-0 and UL-94V-2 flammability standards, ensuring compliance with industry safety requirements.

With solder termination style and 12 pins, the WE-CMB HC series inductor offers easy integration into PCB layouts. The high voltage tolerance of 1500 V allows use in elevated voltage circuits. The standard test frequency for quality control is 10 kHz, confirming reliable performance specifications.

Wurth Elektronik’s WE-CMB HC series common mode chokes are engineered for compact size with high suppression efficiency of asymmetrical interferences. The anti-capacitance coiling technique enhances broadband screening, suitable for power line input/output filters and other power electronics applications.

Inductance of 1 mH enhances filtering capabilities in power circuits. Maximum DC current of 12 A supports high current demands. Low DC resistance of 9 mΩ reduces energy loss and heating. Radial mount with 12 pins and 25 mm lead pitch allows reliable PCB mounting.

Wide temperature range from -40°C to 125°C ensures operation in harsh conditions. Manganese zinc core provides optimum magnetic performance. Flammability standards UL-94V-0 and UL-94V-2 ensure safety compliance. Maximum operating voltage of 1500 V suited for power electronics applications.

Solder termination style integrates with standard assembly methods. Test frequency at 10 kHz for assured quality control.

This product is ideal for industrial, manufacturing, and electronic equipment applications requiring noise suppression and electromagnetic compatibility. Explore the Wurth Elektronik range on EnvMart for precision components tailored to your design needs.
