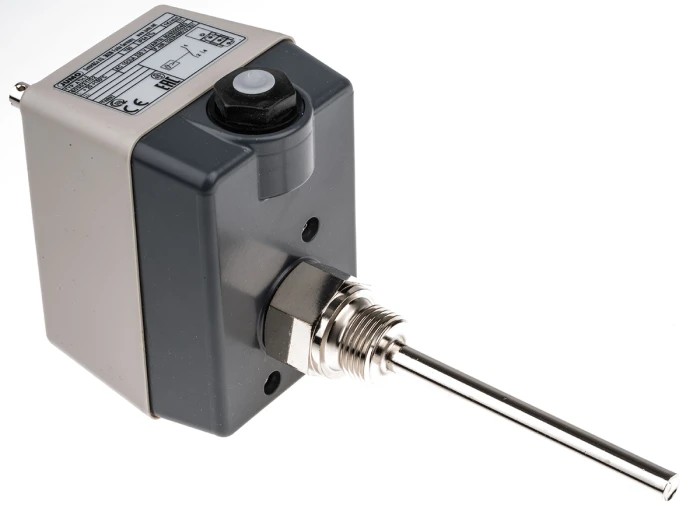

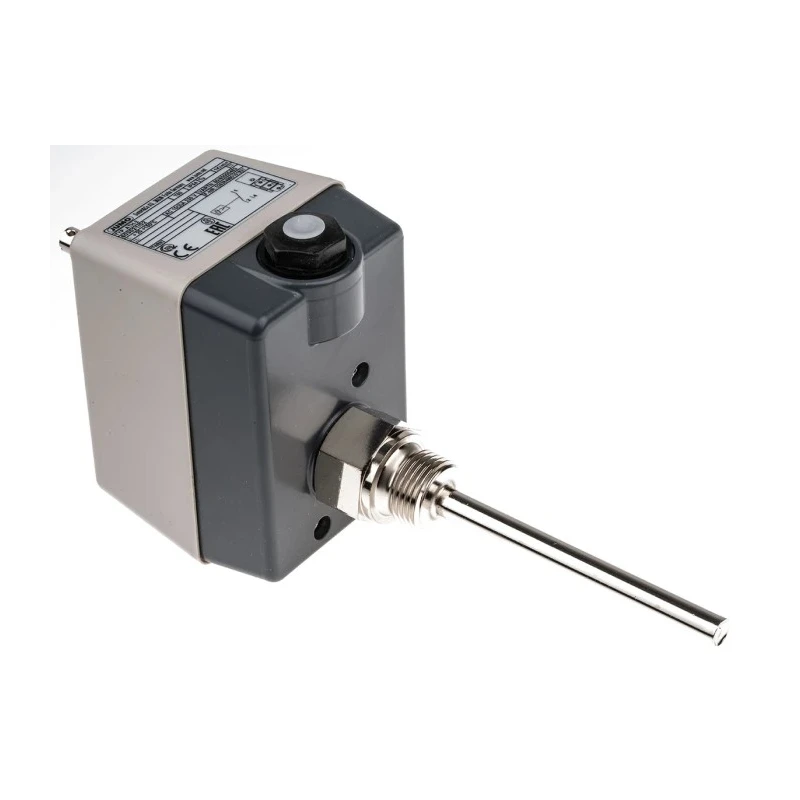

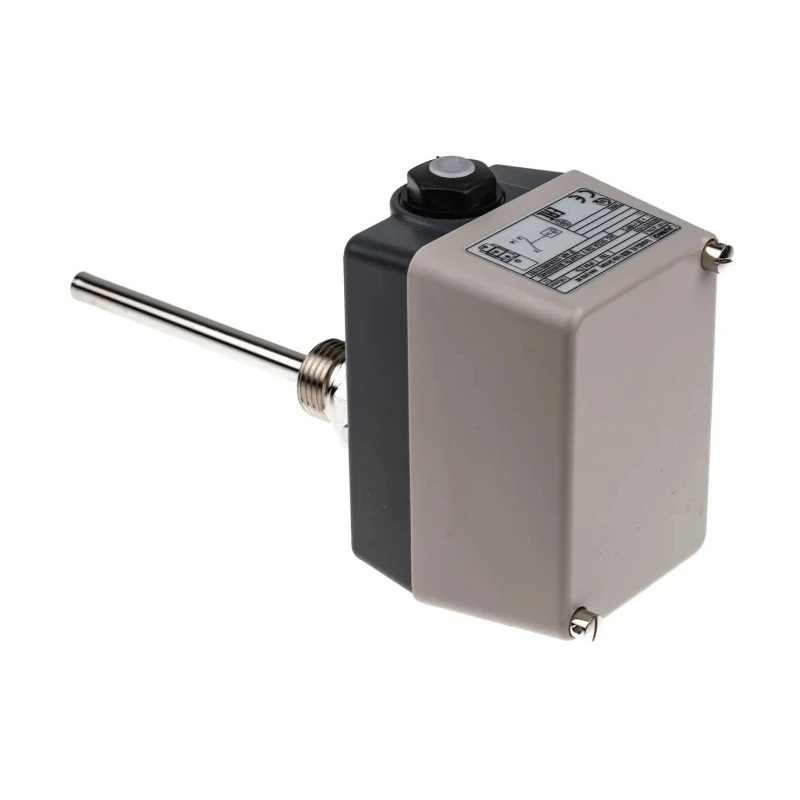

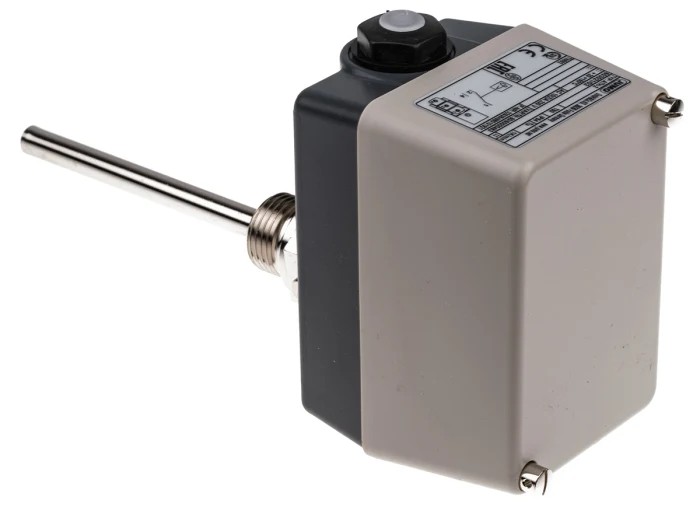

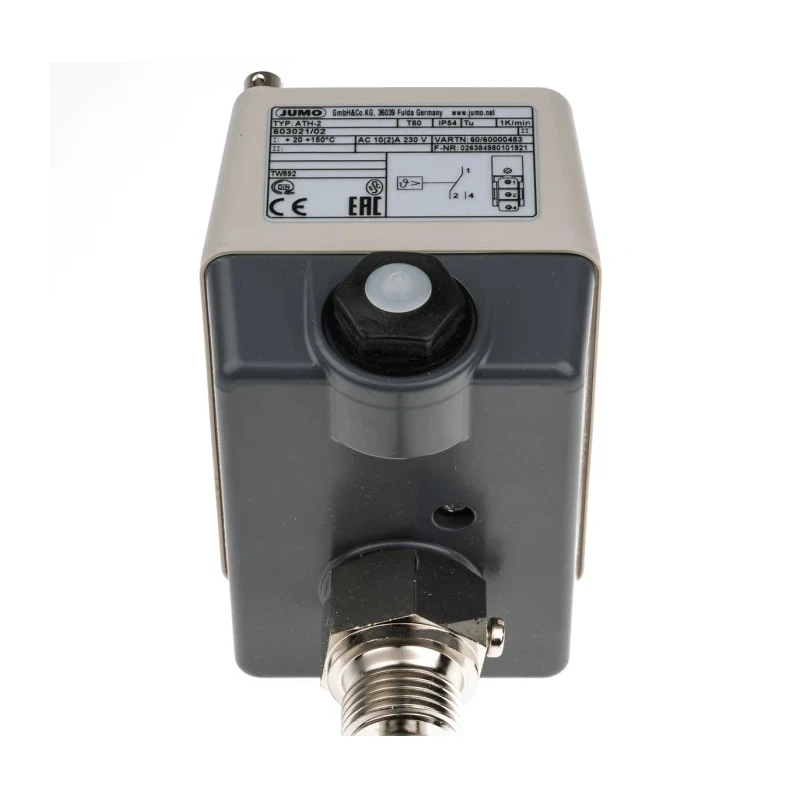

Jumo Capillary Surface Mount Thermostat, Safety Temperature Monitor and 603021/02-1-043-30-0-00-20-13-46-100-8-6/000

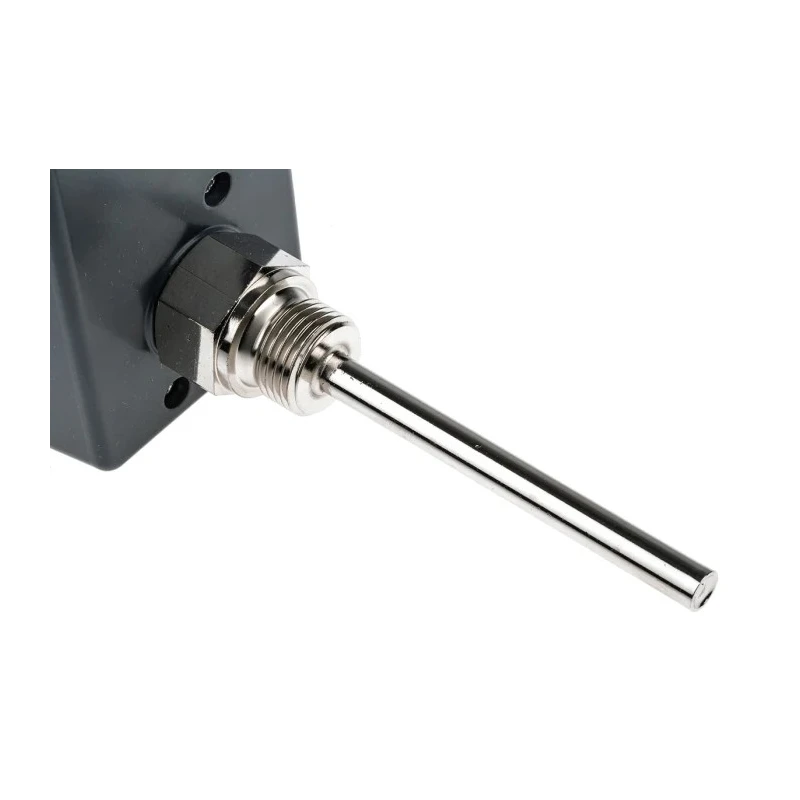

Jumo 603021/02-1-043-30-0-00-20-13-46-100-8-6/000 is a high-quality capillary surface mount thermostat designed for safety temperature monitoring and limiting in electrical and industrial heating systems. It operates on the principle of volume expansion of the filling medium inside a rigid capillary probe, which triggers a microswitch to perform precise temperature regulation.

The device covers a temperature range from +20°C minimum to a maximum of +150°C, making it suitable for various applications requiring reliable temperature control. Its manual reset feature enhances safety by requiring human intervention to resume operation after activation.

Featuring a single pole double throw (SPDT) contact configuration with 1 normally open (NO) and 1 normally closed (NC) contact, it supports a contact current rating of 10A at both 230V AC and 230V DC, ensuring broad compatibility with industrial control circuits. The solder tab terminal type enables secure electrical connections.

Constructed with an IP54 rated enclosure, the thermostat is protected against dust ingress and water splashes, extending its durability in challenging industrial environments. Compliance with EN 60529-IP54, DIN EN 14597, and 2014/68/EU standards ensures adherence to recognized European and international safety and performance requirements.

The thermostat is part of Jumo's ATH series and may feature externally or internally adjustable switching points, providing flexibility to suit different installation and operational preferences. It is engineered for surface mounting, ideal for integration into heating devices and electrical panels requiring safety temperature monitors or limiters.

Operates on volume expansion principle with rigid capillary probe. Manual reset mechanism enhances safety control. 1 NO/1 NC SPDT contact rating of 10A at 230V AC/DC. Protected by IP54 enclosure for dust and water resistance.

Switching points adjustable externally or internally (ATHs-1, ATHs-2 versions). Complies with EN 60529-IP54, DIN EN 14597, 2014/68/EU standards. Surface mount design with solder tab terminals. Suitable for industrial temperature monitoring and limiting applications.

This Jumo capillary thermostat is fit for deployment across industrial, laboratory, HVAC, and manufacturing sectors requiring precise temperature safety control. For further exploration, browse related Thermostat devices and heating control equipment in EnvMart’s Electronics & Electricals category.
