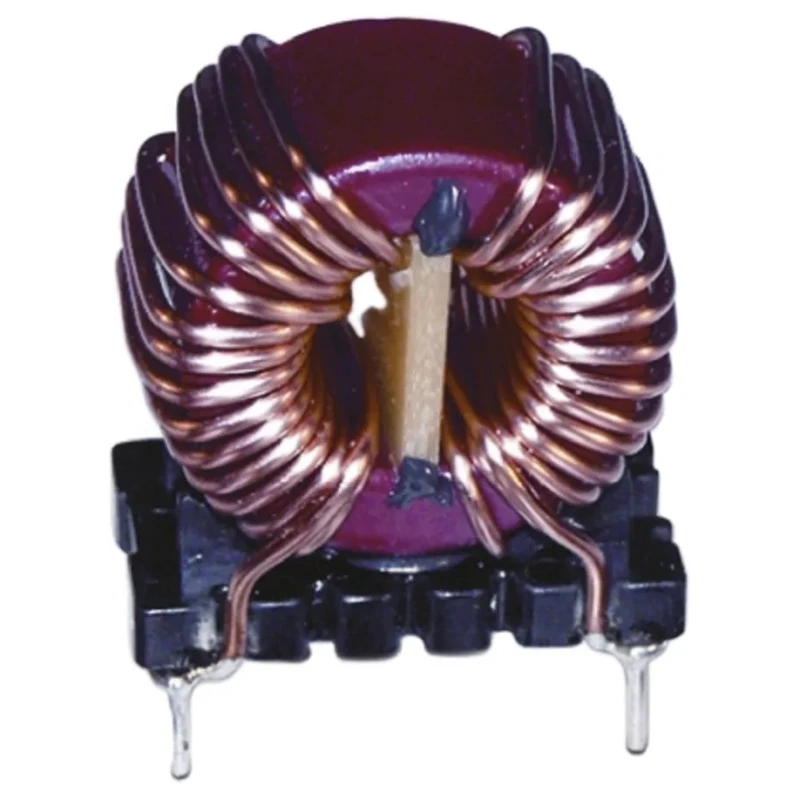

Wurth Elektronik 3.3 mH Manganese Zinc Leaded Inductor Radial Mount 4 A Idc 35 mΩ Rdc 1500V 125°C WE-CMB 744824433
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 27.5mm |
| Brand | Wurth Elektronik |
| Height | 33mm |
| Length | 27.5mm |
| Depth | 18.5mm |
| Mount Type | Radial |
| Series | WE-CMB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 10kHz |
| Core Material | Manganese Zinc |
| Maximum Voltage | 1500V |
| Inductance | 3.3mH |
| Standards/Approvals | UL-94V-2, UL-94V-0 |
| Maximum DC Current | 4A |
| Pin Count | 4 |
| Maximum DC Resistance | 35mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Lead Pitch | 10mm |
Key Features
- Compact radial mount design for efficient PCB integration.
- Core material composed of manganese zinc for stable inductance.
- Wide operating temperature range from -40°C to 125°C.
- Maximum operating voltage of 1500 V for high reliability.
- Designed with 4 pins and a 10 mm lead pitch for easy soldering.
- Certified to UL-94V-2 and UL-94V-0 flammability standards.
- Suitable for suppressing common mode noise in power electronics and motor applications.
- Diameter and length both 27.5 mm, height 33 mm for a compact footprint.
Product Description
Wurth Elektronik 744824433 is a high-quality 3.3 millihenry manganese zinc leaded inductor designed for radial mounting on printed circuit boards. It supports a maximum DC current of 4 A and has a DC resistance of 35 milliohms, providing reliable inductive performance in compact form.
Constructed with a manganese zinc core, this inductor maintains stable inductance with a tolerance of ±30%. Its physical dimensions of 27.5 mm diameter, 27.5 mm length, and 33 mm height alongside a 10 mm lead pitch allow for efficient installation with 4 solder termination pins.
The Wurth WE-CMB series component operates reliably across a broad temperature range from -40°C up to 125°C and withstands voltages up to 1500 V. It complies with UL-94V-2 and UL-94V-0 flammability ratings, ensuring safety for industrial and electronic applications.
Ideal for use in power electronics and filtering of common mode noise in motors, this component contributes to enhanced EMI suppression and device performance. Its radial mount style and compact size cater to space-constrained designs in automotive, industrial and consumer electronic devices.
Compact radial mount leads facilitate PCB assembly. High temperature and voltage ratings provide durability. Effective noise suppression in power lines and motor drives. Meets safety standards for flammability resistance.
Manganese zinc core ensures stable inductance properties. Low DC resistance minimizes power losses. Wide temperature range supports diverse operating conditions. Robust solder termination provides mechanical reliability.
Explore the extensive range of Wurth Elektronik inductors and other passive components on EnvMart for reliable electronic design solutions.
Explore more products in our Leaded Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 3.3 mH, providing reliable inductive performance for various applications.
It can handle a maximum DC current of 4 A, making it suitable for various power electronics applications.
The maximum operating voltage is 1500 V, ensuring high reliability in demanding applications.
This unit operates reliably within a temperature range of -40°C to 125°C, accommodating various environmental conditions.
The inductor has a diameter and length of 27.5 mm, and a height of 33 mm, allowing for efficient PCB integration.
The DC resistance is 35 mΩ, which helps minimize power losses during operation.
It is constructed with a manganese zinc core, which helps maintain stable inductance properties.
This model features 4 pins for solder termination, with a lead pitch of 10 mm for easy installation.
It is certified to UL-94V-2 and UL-94V-0 flammability standards, ensuring safety in industrial applications.
It is suitable for suppressing common mode noise in power electronics and motor applications, enhancing EMI suppression.
The termination style is solder, which provides a robust mechanical connection for PCB assembly.
The test frequency for this inductor is 10 kHz, which is relevant for its performance evaluation.
