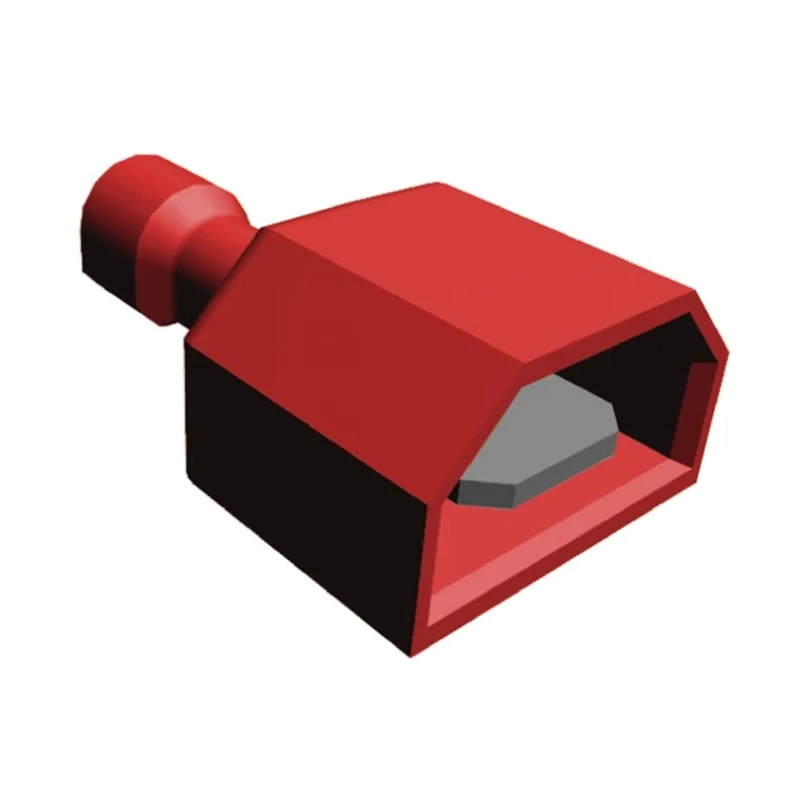

TE Connectivity Ultra-Fast .250 Red Insulated Male Spade Connector, Crimp, 6.3 x 0.8 mm Tab Size, 22 AWG to 18 AWG 2-520102-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Straight |
| Gender | Male |
| Insulation | Insulated |
| Overall Length | 21.71mm |
| Contact Material | Brass |
| Series | Ultra-Fast .250 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.3 x 0.8 mm |
Key Features
- Features a nickel-plated brass contact ensuring excellent conductivity.
- Insulation is made of UL 94 V-2 nylon providing electrical safety.
- Designed with a straight orientation for ease of use in various assemblies.
- Suitable for crimp termination applications requiring quick connect and disconnect.
- Overall length is 21.71 mm making it compact for tight installations.
- Red colour coding allows easy wire gauge identification.
- Compatible with stranded, fused and solid wires between 0.3 mm² and 0.8 mm².
- Meets electrical insulation needs for 600V applications.
Product Description
TE Connectivity 2-520102-2 Ultra-Fast .250 Red Insulated Male Spade Connector is designed for high-quality crimp connections in industrial and commercial electrical wiring applications. The connector features a fully insulated housing constructed from UL 94 V-2 nylon that protects against electrical shock and short circuits, ensuring safety and reliability in use.
The brass contact is tin-plated for corrosion resistance and excellent electrical conductivity, recessed within the housing for additional protection. Its 6.3 x 0.8 mm tab size fits standard terminals, enabling fast and secure connections for wires ranging from 22 AWG to 18 AWG (0.3 mm² to 0.8 mm²).
This straight male Spade Connector has an overall length of 21.71 mm and is easily identifiable by its red insulation colour, which corresponds to wire gauge standards for quick and accurate wiring processes.
Ideal for use in automotive, aerospace, HVAC, laboratory, manufacturing, and general electrical applications, this connector supports reliable, safe, and efficient wire termination in heavy-duty and precision circuits.
Nickel-plated brass contact provides excellent conductivity and durability. Red nylon insulation prevents electrical shorts and enhances wire gauge identification. Designed for high voltage up to 600V applications with insulation meeting UL 94 V-2 specifications.
Straight orientation allows ease of installation and maintenance. Crimp termination method ensures strong and stable wire connection. Compatible with solid, stranded, and fused wires within 22 to 18 AWG range. Compact size suitable for tight spaces in control panels and junction boxes.
Set your projects up with a high standard of electrical connection quality with TE Connectivity's Ultra-Fast .250 series connectors. Explore further in the Electronics & Electricals category at EnvMart for compatible wire terminals and connectors tailored to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 22 AWG to 18 AWG, which corresponds to a cross-sectional area of 0.3 mm² to 0.8 mm².
The connector features a brass contact that is tin-plated for corrosion resistance and excellent conductivity, while the insulation is made of UL 94 V-2 nylon for electrical safety.
The overall length of this spade connector is 21.71 mm, making it compact for installation in tight spaces.
The tab size of this connector is 6.3 x 0.8 mm, which fits standard terminals for secure connections.
It uses a crimp termination method, ensuring a strong and stable wire connection suitable for various applications.
This model is rated for high voltage applications up to 600V, ensuring safety in various electrical installations.
The connector is designed with a straight orientation, facilitating ease of installation and maintenance in various assemblies.
It features red insulation, which allows for easy identification of the wire gauge during installation.
Yes, this model is compatible with solid, stranded, and fused wires within the specified wire size range.
The country of origin for this connector is the United States.
This connector is ideal for use in automotive, aerospace, HVAC, laboratory, manufacturing, and general electrical applications.
The connector's nylon insulation provides protection against electrical shock and short circuits, enhancing safety during use.
