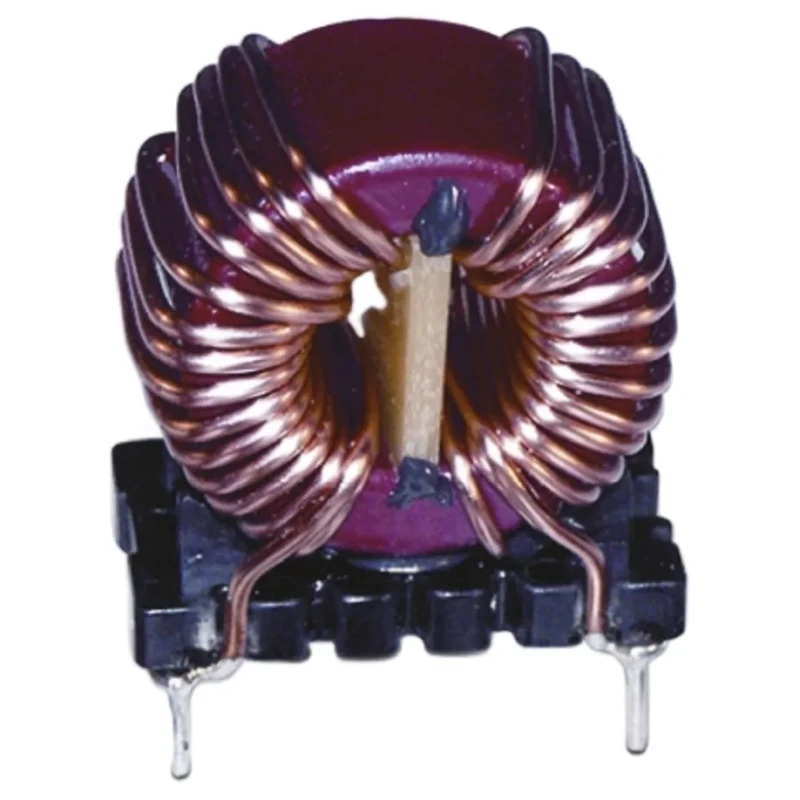

Wurth Elektronik 3.3 mH Manganese Zinc Leaded Inductor Radial Mount, 1.5 A IDC, 120 mΩ RDC, 250 V AC WE-CMB 744822233
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.5mm |
| Brand | Wurth Elektronik |
| Height | 22mm |
| Length | 17.5mm |
| Depth | 13mm |
| Mount Type | Radial |
| Series | WE-CMB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 50Hz |
| Core Material | Manganese Zinc |
| Maximum Voltage | 250V ac |
| Inductance | 3.3mH |
| Standards/Approvals | ENEC 10, REACH, RoHS, VDE |
| Maximum DC Current | 1.5A |
| Maximum DC Resistance | 120mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Lead Pitch | 7.7mm |
| Lead Diameter | 0.7mm |
Key Features
- This leaded inductor has a maximum DC current rating of 1.5 A.
- The inductance tolerance is ±30%, suitable for various electronic applications.
- Its maximum DC resistance is 120 milliohms, ensuring efficiency.
- Rated for a maximum operating voltage of 250 V AC and temperature range -40°C to 125°C.
- Compact dimensions include 17.5 mm diameter and 22 mm height for easy PCB integration.
- Features manganese zinc core material for stable inductance performance.
- Radial mount with 0.7 mm lead diameter and 7.7 mm lead pitch for secure soldering.
- Complies with standards such as ENEC 10, REACH, RoHS, and VDE for reliability.
Product Description
Wurth Elektronik 744822233 is a 3.3 mH manganese zinc leaded inductor featuring a radial mount type designed to provide effective noise suppression and stable inductance in compact electronic circuits.
Rated at 1.5 A maximum DC current with a maximum DC resistance of 120 mΩ, this inductor supports operating voltages up to 250 V AC.
The component offers a wide operating temperature range from -40°C to +125°C, making it suitable for robust industrial and electrical applications. Its manganese zinc core material ensures dependable performance and inductance stability.
Physical specifications include a diameter of 17.5 mm, length of 17.5 mm, height of 22 mm, and depth of 13 mm, providing a compact solution for power electronics and filtering circuits.
Lead diameter is 0.7 mm with a lead pitch spacing of 7.7 mm, terminated with soldering style, facilitating easy PCB mounting. This leaded inductor is compliant with important industry standards such as ENEC 10, REACH, RoHS, and VDE, underscoring quality and environmental safety.
Ideal for suppression of common mode noise and radio interference in motor and power line applications, the WE-CMB series by Wurth Elektronik, including this model, excels in providing high suppression across a broad frequency range with compact size advantages.
This leaded inductor has a maximum DC current rating of 1.5 A. The inductance tolerance is ±30%, suitable for various electronic applications. Its maximum DC resistance is 120 milliohms, ensuring efficiency. Rated for a maximum operating voltage of 250 V AC and temperature range -40°C to 125°C.
Compact dimensions include 17.5 mm diameter and 22 mm height for easy PCB integration. Features manganese zinc core material for stable inductance performance. Radial mount with 0.7 mm lead diameter and 7.7 mm lead pitch for secure soldering.
Complies with standards such as ENEC 10, REACH, RoHS, and VDE for reliability. Explore more Wurth Elektronik inductors and components on EnvMart for reliable electrical and industrial applications.
Explore more products in our Leaded Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 3.3 mH, with an inductance tolerance of ±30%.
It has a maximum DC current rating of 1.5 A, ensuring it can handle moderate power applications.
The inductor is rated for a maximum operating voltage of 250 V AC, suitable for various electronic applications.
The dimensions include a diameter of 17.5 mm, height of 22 mm, length of 17.5 mm, and depth of 13 mm.
The lead diameter is 0.7 mm with a lead pitch of 7.7 mm, facilitating secure soldering during PCB integration.
This model features a manganese zinc core material, which provides stable inductance performance.
It can operate within a temperature range of -40°C to +125°C, making it suitable for various environments.
The inductor complies with standards such as ENEC 10, REACH, RoHS, and VDE, ensuring quality and environmental safety.
This model uses a solder termination style, which is common for PCB mounting.
It is suitable for applications involving noise suppression and filtering in electronic circuits, particularly in motor and power line applications.
The maximum DC resistance is 120 mΩ, contributing to its efficiency in electronic circuits.
This model belongs to the WE-CMB series, which is designed for effective noise suppression and stable inductance in compact circuits.
