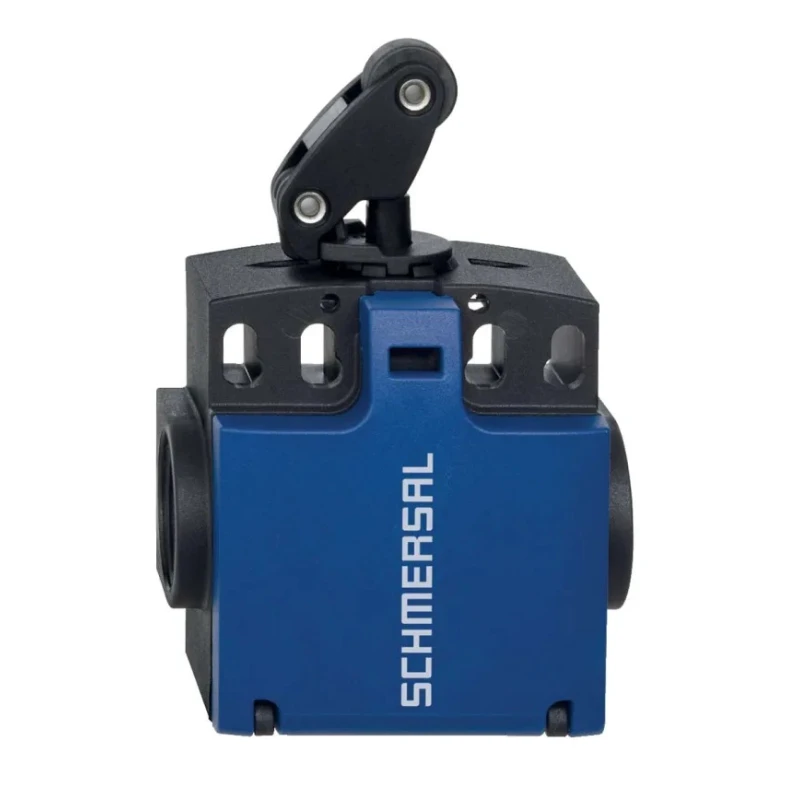

Schmersal PS226-T12-K200 Series DIN Rail Limit Switch 1 NO/2 NC, IP67, IP66, Plastic Fibreglass Reinforced Housing 103015080
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 33mm |
| IP Rating | IP67, IP66 |
| Width | 59mm |
| Housing Material | Plastic, Fibreglass Reinforced |
| Protection Class | IP66, IP67 |
| Standards | ISO 13849-1 |
| Series | PS226-T12-K200 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 1 NO/2 NC |
| Actuator Type | DIN Rail |
| Contact Type | Silver |
| Minimum Operating Temperature | -30°C |
| Switching Current | 15.3A |
| Terminal type | Screw |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 2 x (M20 x 1.5) |
| Mechanical life, minimum | 10,000,000 Operations |
| B10d Normally-closed contact (NC) | 20,000,000 Operations |
Key Features
- The switch features a durable plastic and fibreglass reinforced housing ensuring robustness.
- It operates within a temperature range from -30°C to 80°C suitable for industrial applications.
- Equipped with silver contacts, it supports a switching current of 15.3A for reliable electrical performance.
- Screw terminal connections allow secure and easy installation.
- The compact design has dimensions of 33mm length and 59mm width to fit tight mounting spaces.
- Mechanical life exceeds 10,000,000 operations ensuring long-term durability.
- Rated switching voltage supports 24V DC and 240V AC use cases.
- Includes dual M20 x 1.5 conduit entries for flexible wiring options.
Product Description
Schmersal 103015080 PS226-T12-K200 Series DIN Rail Limit Switch is designed for advanced industrial and automation control systems requiring reliable position sensing.
The device features a durable plastic housing reinforced with fibreglass to withstand mechanical and environmental stresses. It offers a contact configuration of 1 normally open (NO) and 2 normally closed (NC) contacts with silver contact material for excellent conductivity and resistance to wear.
With IP67 and IP66 ingress protection, this limit switch is suitable for use in harsh and wet environments, making it ideal for electrical, manufacturing, water treatment, and HVAC industries.
The switch supports a wide operating temperature range from -30°C to 80°C, accommodating diverse industrial climate conditions. It accepts switching voltages of 24V DC and 240V AC and a switching current rating of 15.3A, ensuring compatibility with common control circuits.
The terminal connections utilize screw type for secure electrical contacts, and the mechanical life expectancy is over 10 million operations, signifying high durability and reduced maintenance needs. Conduit entry options (2 x M20 x 1.5) provide flexible installation adaptability in electrical panels.
This product meets international standards ISO 13849-1 and IEC 60947-5-1, highlighting its adherence to global quality and safety benchmarks. The switch features a durable plastic and fibreglass reinforced housing ensuring robustness.
It operates within a temperature range from -30°C to 80°C suitable for industrial applications. Equipped with silver contacts, it supports a switching current of 15.3A for reliable electrical performance. Screw terminal connections allow secure and easy installation.
The compact design has dimensions of 33mm length and 59mm width to fit tight mounting spaces. Mechanical life exceeds 10,000,000 operations ensuring long-term durability. Rated switching voltage supports 24V DC and 240V AC use cases.
Includes dual M20 x 1.5 conduit entries for flexible wiring options. Compliant with ISO 13849-1 and IEC 60947-5-1 standards for safety and quality.
This limit switch serves various industrial sectors including automation, manufacturing, electrical control panels, HVAC systems, water treatment plants, and safety equipment installations. It offers reliable switching performance in critical applications requiring precision and endurance.
Explore other Limit Switches and electrical automation components on EnvMart for complete industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 1 normally open (NO) and 2 normally closed (NC) contacts.
The maximum operating temperature for this limit switch is 80°C.
It supports a switching current rating of 15.3A.
The dimensions are 33mm in length and 59mm in width, making it suitable for tight mounting spaces.
It utilizes screw terminal connections for secure and easy installation.
The mechanical life exceeds 10,000,000 operations, indicating high durability.
This limit switch has an IP67 and IP66 rating, making it suitable for harsh and wet environments.
The minimum operating temperature is -30°C.
It complies with ISO 13849-1 and IEC 60947-5-1 standards for safety and quality.
It supports switching voltages of 24V DC and 240V AC.
It includes dual M20 x 1.5 conduit entries for flexible wiring options.
This model uses a DIN rail actuator type for mounting.
