STMicroelectronics 45 V 7.5 A Schottky Diode 2-Pin TO-220AC STPS745D

Free Delivery in India | Lowest Global Shipping Charges

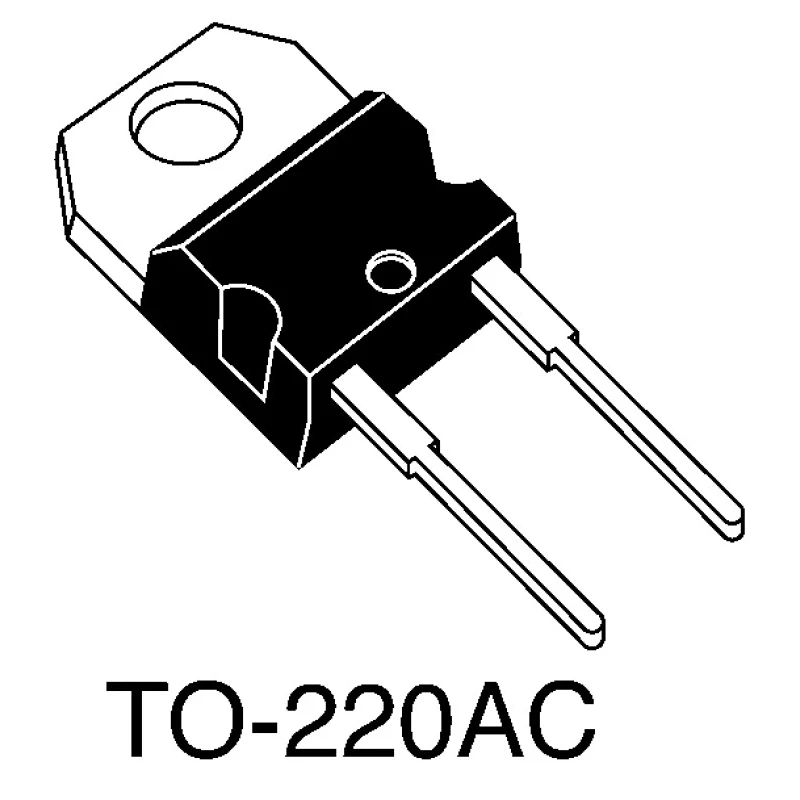

STMicroelectronics 45 V 7.5 A Schottky Diode 2-Pin TO-220AC STPS745D

Name: STMicroelectronics 45 V 7.5 A Schottky Diode 2-Pin TO-220AC STPS745D
Brand: STMicroelectronics
SKU: 190153
Price: 0.65 USD
Availability: InStock



Category Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	9.15mm
Length	10.4mm
Model	STPS745D
Width	4.6mm
Mount Type	Through Hole
Maximum Operating Temperature	175°C
Package Type	TO-220AC
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	7.5A
Peak Reverse Repetitive Voltage Vrrm	45V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	0.5V

Key Features

High efficiency Schottky barrier diode with low forward voltage drop.
TO-220AC package with through-hole mount for easy PCB installation.
Operates reliably from -65°C to 175°C for wide temperature range applications.
Peak non-repetitive forward surge current of 150 A supports transient events.
Low peak reverse current of 100 μA minimizes leakage and power loss.
Compact dimensions of 10.4 mm length, 4.6 mm width, and 9.15 mm height.
Single diode configuration suitable for power rectification and protection circuits.
Designed for industrial and electronic power applications requiring fast switching.

Product Description

STMicroelectronics STPS745D is a reliable and efficient 2-pin Schottky diode rated for 45 V peak reverse voltage and 7.5 A continuous forward current. Housed in a TO-220AC package with through-hole mounting, this diode offers a low forward voltage drop of 0.5 V, enhancing power efficiency in circuits.

It operates safely across a broad temperature range from -65°C minimum to 175°C maximum, making it suitable for harsh industrial and electronic environments. The diode supports a peak non-repetitive forward surge current of 150 A, ensuring durability during transient power surges and spikes.

Low peak reverse current of just 100 μA reduces leakage current for power-sensitive applications. The diode's compact package dimensions (length 10.4 mm, width 4.6 mm, height 9.15 mm) make it versatile for various PCB layouts.

This Schottky diode is ideal for rectification, power supply circuits, and protective functionality in industrial automation, electronic controls, and power conversion applications. It delivers fast switching speed and low forward voltage, contributing to improved energy efficiency and thermal performance.

High efficiency Schottky barrier diode with low forward voltage drop. Through-hole mounting in TO-220AC package. Wide temperature operation from -65°C to 175°C. 150 A peak surge current capability. Low leak current with 100 μA peak reverse current.

Compact size fits diverse electronic assemblies. Single diode configuration for power rectifiers. Reliable performance in industrial and electronic power circuits. Explore more semiconductor and Diode components in the Electronics & Electricals category at EnvMart for your industrial and electronic development needs.
