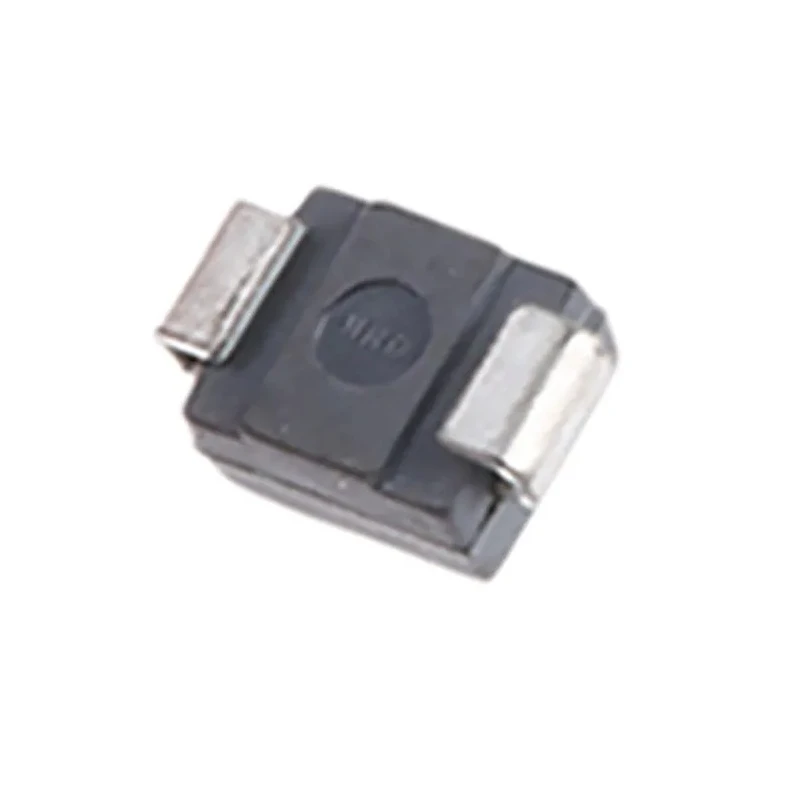

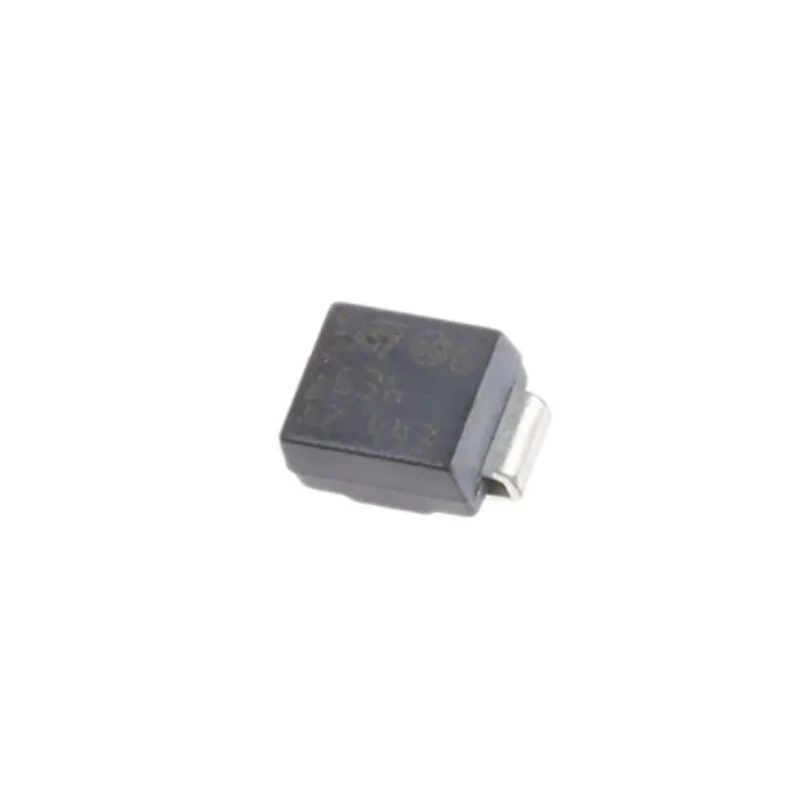

STMicroelectronics Schottky Diode 60 V 3 A Surface Mount DO-214AA Package STPS3L60U
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STPS3L60U |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | STPS3L60 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.53V |
Key Features
- This diode has a maximum forward voltage of 0.53 V ensuring low power loss.
- Designed with a 2-pin configuration suitable for efficient PCB mounting.
- Offers a high peak non-repetitive forward surge current of 100 A for transient protection.
- Operates reliably between -65°C and 150°C to suit industrial and commercial environments.
- Low peak reverse current of 150 µA enhances energy efficiency and reduces leakage losses.
- Compact dimensions with a length of 4.6 mm, width of 3.95 mm, and height of 2.45 mm.
- Single diode configuration ensures consistent rectifier performance in power management applications.
Product Description
STMicroelectronics STPS3L60U is a high-performance Schottky diode designed for surface mounting in electronic circuits requiring low forward voltage drop and fast switching capabilities. With a peak reverse voltage of 60 V and a maximum continuous forward current of 3 A, this diode provides effective rectification in power supply, automotive, and consumer electronics applications.
The diode's DO-214AA package ensures compact size making it suitable for space-constrained designs. Featuring a maximum forward voltage of just 0.53 V, it minimizes power dissipation, improving overall efficiency in power management circuits.
STPS3L60U supports peak non-repetitive forward surge currents up to 100 A, which enhances its robustness against transient conditions such as load switching and inrush currents. Its operating temperature range from -65°C to 150°C allows use in harsh industrial and automotive environments.
The 2-pin configuration facilitates easy circuit integration on printed circuit boards, promoting reliable electrical connections and mechanical stability. The diode offers low leakage with a peak reverse current of only 150 µA, thus improving energy efficiency in standby modes.
Typical industrial use cases include power supplies, solar inverters, battery chargers, voltage clamping, and motor control circuits. The device's high-speed switching characteristics support applications in DC-DC converters and high-frequency rectifiers.
This diode is essential for improving power efficiency and durability in electronic devices. Its compact footprint and robust electrical specifications meet modern electronics design requirements.
Explore a wide range of semiconductor diodes, rectifiers, and Schottky diodes in the EnvMart catalog to find the perfect components for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of the STMicroelectronics STPS3L60U is 0.53 V, which helps in minimizing power loss.
This diode has a peak reverse repetitive voltage rating of 60 V, making it suitable for various applications.
The maximum continuous forward current for this model is 3 A, allowing it to handle significant current loads in circuits.
The STPS3L60U operates reliably between -65°C and 150°C, accommodating both industrial and commercial environments.
This model features a single diode configuration with a 2-pin design, which is suitable for efficient PCB mounting.
The diode has compact dimensions: a length of 4.6 mm, width of 3.95 mm, and height of 2.45 mm.
The STPS3L60U can handle a peak non-repetitive forward surge current of up to 100 A, providing robustness against transient conditions.
The peak reverse current for the STPS3L60U is 150 µA, which contributes to its energy efficiency.
This diode comes in a DO-214AA package type, which is designed for surface mounting applications.
This Schottky diode is suitable for applications such as power supplies, solar inverters, battery chargers, and motor control circuits.
The low forward voltage of 0.53 V in this model reduces power dissipation, enhancing overall efficiency in power management circuits.
The country of origin for the STPS3L60U is India.
