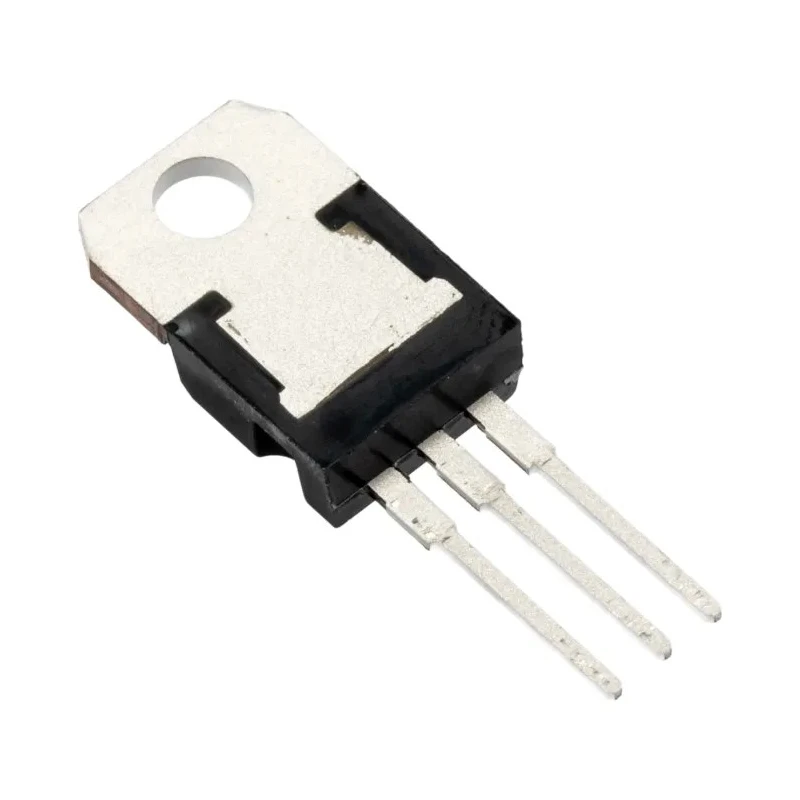

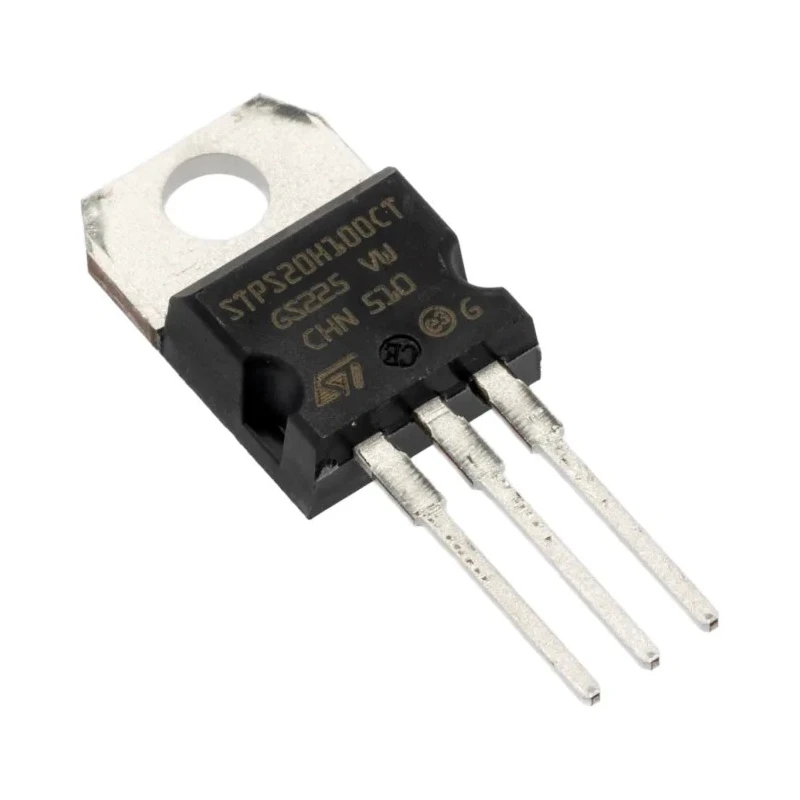

STMicroelectronics 100 V 20 A Schottky Barrier Diode Through Hole 3-Pin TO-220AB STPS20H100CT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | STPS20H100CT |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STPS20H100C |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 4.5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 250A |
| Maximum Forward Voltage Vf | 0.59V |
Key Features
- Designed for high current and low forward voltage applications.
- Peak reverse repetitive voltage of 100 V ensures reliable blocking.
- Maximum continuous forward current of 20 A supports heavy loads.
- Compact TO-220AB package with 3 pins for easy through-hole mounting.
- Low forward voltage of 0.59 V reduces power losses.
- Wide operating temperature range from -65°C to 175°C.
- Capable of withstanding peak non-repetitive forward surge current up to 250 A.
- Common cathode diode configuration for versatile circuit design.
Product Description
STMicroelectronics STPS20H100CT is a high-performance Schottky Barrier Diode designed for power electronics applications requiring efficient rectification and low forward voltage drop. Packaged in a TO-220AB through-hole 3-pin configuration, it offers a maximum continuous forward current of 20 A and can handle voltages up to 100 V. Its low forward voltage of 0.59 V minimizes conduction losses, making it ideal for power supply, industrial, and automotive circuitry.
The diode operates reliably across a wide temperature range from -65°C to 175°C, ensuring robust performance in harsh environments. Its compact dimensions of 10.4 mm length, 4.6 mm width, and 9.15 mm height enable easy integration on printed circuit boards, facilitating efficient heat dissipation. Additionally, it can withstand peak non-repetitive forward surge currents up to 250 A, providing protection against transient conditions.
The STPS20H100CT features a common cathode diode configuration, which supports various circuit designs requiring Schottky rectifiers with fast switching and low energy loss. It is RoHS compliant and does not include specific automotive certifications but is suitable for power electronics requiring high current capacity and reliability.
High 20 A continuous forward current capability. Low forward voltage to reduce power dissipation. TO-220AB package supports through-hole mounting and heat dissipation. Wide operating temperature range from -65°C to 175°C.
Peak surge current tolerance ensures transient protection. Compact physical dimensions for PCB integration. Common cathode configuration ideal for efficient rectification. Applicable in power supply units, industrial controls, and automotive electronics.
Explore more semiconductor and diode products from STMicroelectronics and similar brands in EnvMart’s extensive Electronics & Electricals category. Discover reliable components for your engineering and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STPS20H100CT is 20 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop for this diode is 0.59 V.
The dimensions of this diode are 10.4 mm in length, 4.6 mm in width, and 9.15 mm in height.
The operating temperature range for the STPS20H100CT is from -65°C to 175°C.
This model supports through-hole mounting, packaged in a TO-220AB configuration.
It can withstand a peak non-repetitive forward surge current of up to 250 A.
The diode configuration is common cathode, which allows for versatile circuit design.
The peak reverse current for this model is 4.5 μA.
This diode is suitable for applications in power supply units, industrial controls, and automotive electronics.
Yes, the STPS20H100CT is RoHS compliant.
The STPS20H100CT belongs to the STPS20H100C series.
