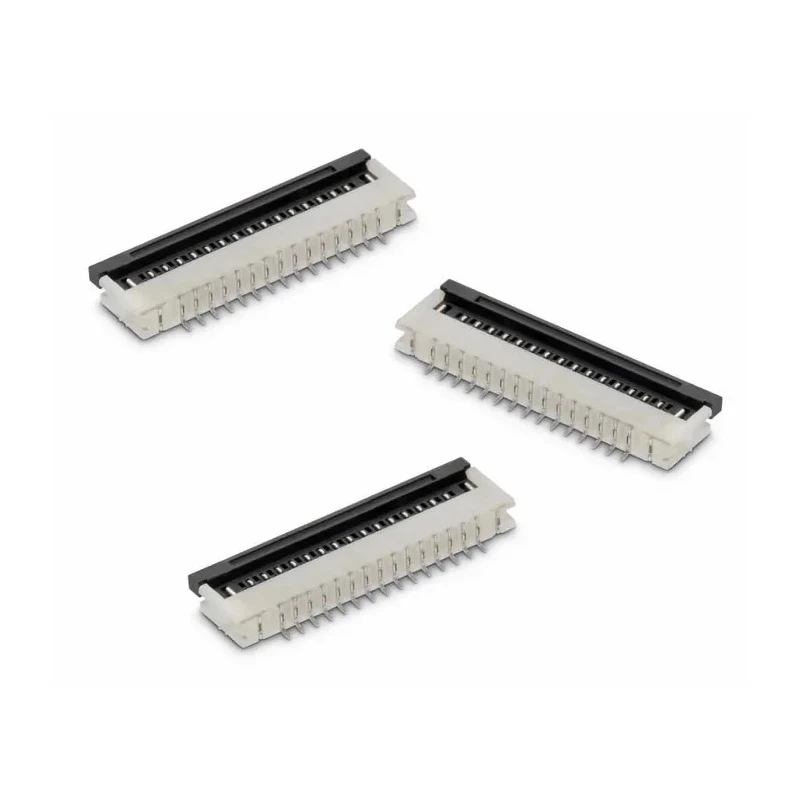

Wurth Elektronik WR-FPC 1 mm Pitch 24 Way Horizontal Female FPC Connector, Solder 686124148922

Wurth Elektronik 686124148922 WR-FPC 1 mm Pitch 24 Way Horizontal Female FPC Connector is a high-density, low-profile connector designed for miniaturized electronic applications requiring reliable and secure connections. This surface mount connector features 24 contacts arranged with a 1.0 mm pitch and includes a hinged flip-lock actuator that provides a secure mechanical connection to flexible printed circuits (FPCs).

The connector's phosphor bronze contacts plated with tin over nickel ensure stable electrical performance while resisting corrosion. Its polyamide housing offers excellent mechanical strength and electrical insulation. The zero insertion force (ZIF) mechanism minimizes stress on the contacts during cable insertion and removal, prolonging connector life.

Rated for currents up to 1A and an operating voltage of 100V AC, this connector supports applications within a broad temperature range from -40°C to 105°C, making it suitable for industrial, consumer electronics, and instrumentation environments.

The WR-FPC series connectors provide a space-saving wire-to-board solution without the need for a mating connector, offering cost and assembly advantages. The solder retention feature helps maintain connector placement during the soldering process, enhancing manufacturing reliability.

This FPC connector is ideal for use in compact electronic devices such as small displays, keyboards, and portable instrumentation where space and reliable connections are critical.

Features a 1.0 mm pitch and 24 contact positions for precise connector alignment. Utilizes phosphor bronze contacts with tin over nickel plating for durability. Low profile horizontal orientation with a hinged flip-lock actuator for secure cable retention.

Supports operation from -40°C to 105°C for reliable performance. Rated for 1A current and 100V AC voltage with surface mount termination. Constructed with a polyamide housing providing robust insulation. Zero insertion force (ZIF) design reduces wear during repeated mating cycles.

Connector does not require mating connector; cable inserts directly for cost efficiency.
