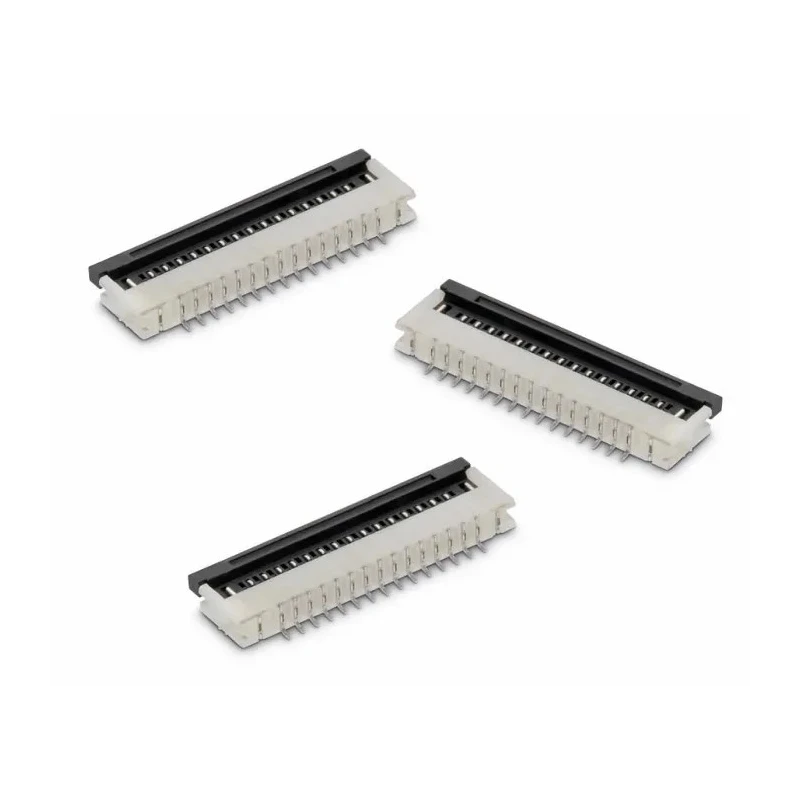

Wurth Elektronik WR-FPC 1 mm Pitch 12 Way Horizontal Female FPC Connector ZIF Bottom Contact 686112148922

Wurth Elektronik 686112148922 WR-FPC 1 mm Pitch 12 Way Horizontal Female FPC Connector with ZIF Bottom Contact is designed to provide high-density and secure cable to board connections within modern electronic devices. Featuring a zero insertion force bottom contact and a hinged flip-lock actuator, it ensures easy, cost-effective assembly and robust connection performance in compact spaces.

The connector uses phosphor bronze contact material with tin over nickel plating to guarantee optimal electrical conductivity and corrosion resistance. Rated for 1 ampere current and 100 volts AC, this connector supports a wide range of electronic applications requiring compact wiring solutions.

Its surface mount design and solder retention features facilitate secure attachment to printed circuit boards, enhancing manufacturing reliability. The low-profile, lightweight configuration suits space-saving demands in miniaturized electronics such as small displays and keyboards.

Operating temperature range from -40°C to 105°C allows durability in varying industrial and commercial environments. The product is RoHS compliant, ensuring it meets environmental safety regulations.

This connector features a phosphor bronze contact material ensuring reliable electrical connection. It supports a current rating of 1A and voltage of 100 V ac for typical electronic applications. The connector has a solder retention feature for secure PCB mounting during soldering.

A flip-lock hinge actuator provides strong locking mechanism to maintain connection integrity. It has a low profile, lightweight design ideal for miniaturized electronic devices. The connector operates reliably between temperatures of -40°C to 105°C.

It complies with RoHS standards ensuring environmental compliance. The contact plating uses tin over nickel enhancing corrosion resistance. This FPC connector is suitable for connecting small displays or keyboards in a variety of industrial electronics.

The series is WR-FPC and it has one row of contacts in a surface mount type configuration.

This product fits industrial and commercial sectors requiring secure, low profile, high density FPC Connectors for electronic assembly, including telecommunications, computer peripherals, instrumentation, and consumer electronics. Its design accommodates automated production lines, improving efficiency and reliability.
