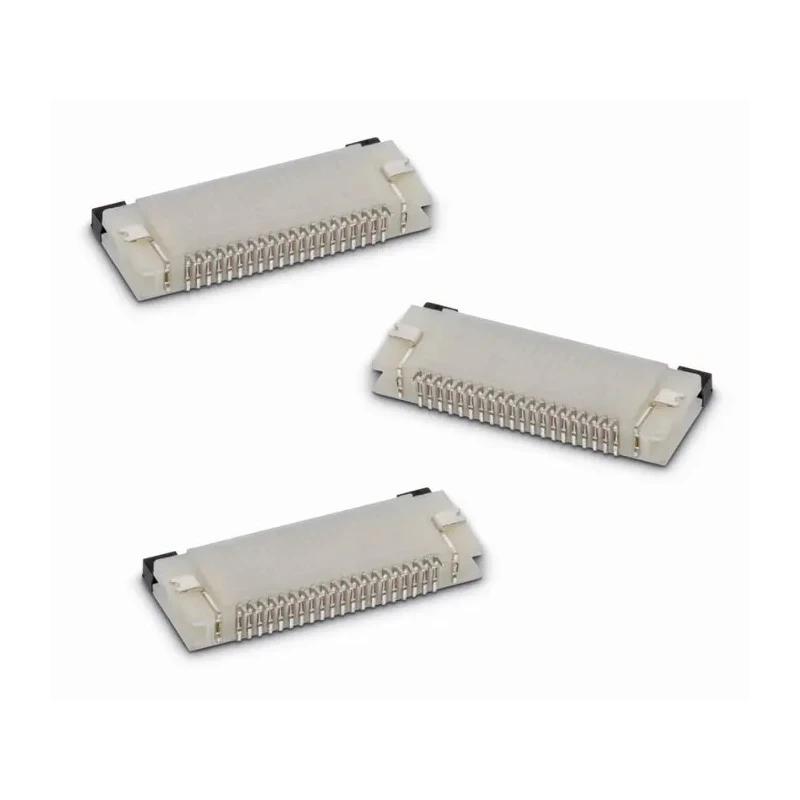

Wurth Elektronik WR-FPC 0.5 mm Pitch 26 Way Horizontal Female FPC Connector with Solder Termination 687126149022
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- The connector features 26 contacts made of phosphor bronze material.
- It has a horizontal orientation with bottom contact position.
- Operates at up to 50V AC voltage with a maximum current of 500mA.
- Equipped with a hinged flip-lock actuator and ZIF insertion force for reliable connection.
- Constructed with polyamide housing and tin over nickel contact plating for durability.
- Suitable for temperatures ranging from -40°C to 105°C for versatile use.
- Designed for surface mount applications ensuring ease of PCB assembly.
- 1 row configuration for compact, space-saving design.
Product Description
Wurth Elektronik 687126149022 is a high-quality 0.5 mm pitch FPC Connector designed for miniature electronic applications. This horizontal orientation connector features a female bottom contact configuration with solder termination, suitable for surface mount technology on printed circuit boards.
The connector includes 26 phosphor bronze contacts plated with tin over nickel, ensuring excellent conductivity and corrosion resistance. A hinged flip-lock actuator provides zero insertion force (ZIF) locking mechanism that secures flexible printed circuits firmly and reliably during use.
Operating voltage rating is 50V AC with a maximum current capacity of 500mA, making it suitable for low-power electronic assemblies. The polyamide housing material offers durability and thermal resistance within a wide temperature range from -40°C to 105°C.
This WR-FPC series connector features a one-row contact arrangement optimized for high-density, space-efficient PCB designs. The solder retention feature aids in maintaining stability during soldering processes, ensuring precision assembly on automated production lines.
Typical industrial and commercial applications include connections to small display modules, keyboards, and other miniaturized electronic devices requiring secure, space-saving flat flexible cable connections. Its reliable design supports various electronic manufacturing and repair scenarios.
The connector has 26 phosphor bronze contacts providing reliable electrical pathways. Feature hinged flip-lock ZIF actuator to minimize insertion force. Surface mount type suitable for automated PCB assembly processes. Durable polyamide housing ensures mechanical protection and stability.
Rated for 50V AC and 500mA current capacity for low-power signals. Wide operating temperature range from -40°C to 105°C allows use in various environments. Tin over nickel plating protects contacts against oxidation. Compact one-row design fits dense PCB layouts in miniature electronics.
Solder termination with retention feature aids secure assembly and reliability.
The Wurth Elektronik WR-FPC 687126149022 connector is an essential component for high-density electrical interconnections in industrial, commercial, and consumer electronics. Its design balances compactness, durability, and ease of assembly, enabling effective flat flexible cable connections in modern electronics manufacturing environments.
Explore more quality PCB connectors and components from Wurth Elektronik at EnvMart for your next electronic design or production project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current capacity of this connector is 500mA.
It operates at a voltage rating of up to 50V AC.
The housing is made of polyamide, and the contacts are constructed from phosphor bronze with tin over nickel plating.
The pitch size of this connector is 0.5 mm.
It can operate within a temperature range of -40°C to 105°C.
This model features 26 contacts.
It uses solder termination for secure connections.
The connector has a horizontal orientation with a bottom contact position.
Yes, it is designed for surface mount applications, ensuring ease of PCB assembly.
It is equipped with a hinged flip-lock actuator that provides a zero insertion force (ZIF) locking mechanism.
The connector features a one-row configuration, optimizing it for high-density PCB designs.
It is suitable for connections to small display modules, keyboards, and other miniaturized electronic devices requiring secure flat flexible cable connections.
