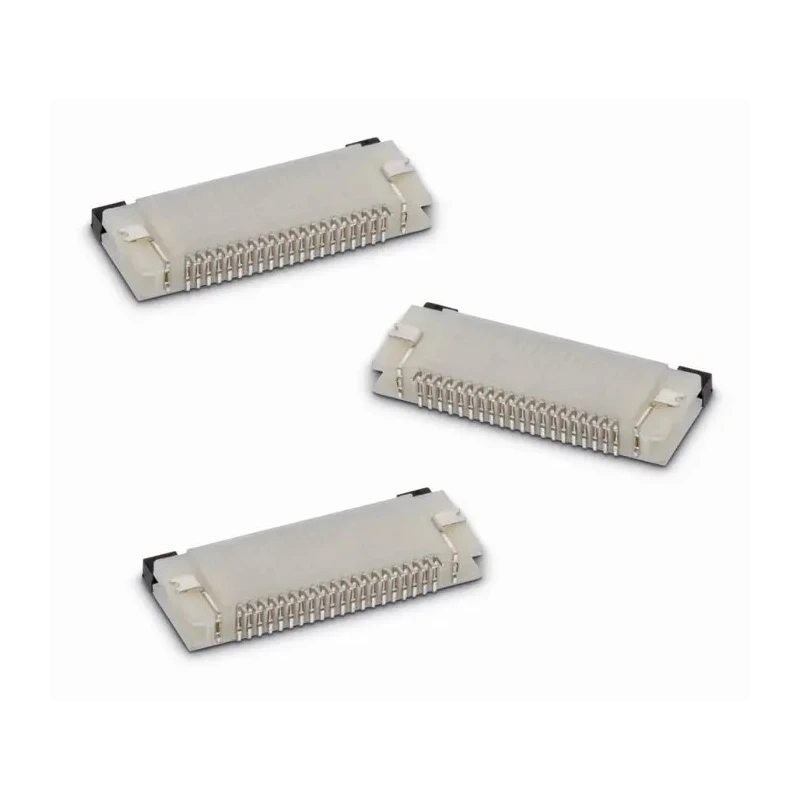

Wurth Elektronik FPC Connector WR-FPC 0.5 mm Pitch 20 Way Horizontal Female ZIF Bottom Contact 687120149022
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Bottom Contact |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- The connector features a hinged flip-lock actuator for secure cable connection.
- It supports a current rating of 500mA and voltage rating of 50V ac.
- Contact material is phosphor bronze with tin over nickel plating for reliable electrical performance.
- Housing material is polyamide, ensuring mechanical robustness and insulation.
- The connector is surface mount type suitable for flat flexible cable (FPC) terminations.
- It operates in a temperature range from -40°C to 105°C.
- Locking mechanism provides secure and vibration-resistant mounting.
- Low profile and lightweight design aim for space-sensitive electronic applications.
Product Description
Wurth Elektronik 687120149022 is a high-quality FPC connector designed for surface mount technology using a zero insertion force (ZIF) bottom contact configuration. It features a 0.5 mm pitch and 20 contact positions arranged in a single horizontal row, optimized for compact and miniaturized electronic assemblies.
The connector is constructed with phosphor bronze contacts plated with tin over nickel, ensuring excellent conductivity and corrosion resistance. The polyamide housing provides mechanical strength and electrical insulation. Its hinged flip-lock actuator securely locks the flat flexible cable (FFC) or FPC into place, eliminating the need for mating connectors and reducing assembly time and cost.
Rated for a current of 500mA and voltage up to 50V ac, this connector suits low power signal applications. It operates reliably over a wide temperature range from -40°C to 105°C, making it suitable for various industrial, consumer electronics, and communications applications.
Applications typically include connections to small displays, keyboards, and other compact devices requiring secure yet removable flexible cable connections. Its low profile and lightweight design support high-density circuit board layouts, saving board space.
The connector provides a ZIF insertion force ensuring minimal damage to FPC/FFC cables during assembly. Surface mount type allows automated PCB assembly with reliable solder joint retention. Locking mechanism improves vibration resistance and connection security.
Contact plating enhances durability against wear and corrosion. Compact and lightweight for miniaturised electronics.
It meets customer demands for a dependable connector solution in both industrial and consumer electronics sectors. This FPC Connector is part of the WR-FPC series designed to optimize performance and assembly efficiency for engineers designing flexible cable interconnects.
Explore more in our Electronics & Electricals category at EnvMart for connectors, cables, and PCB accessories tailored to professional applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this FPC connector is 0.5 mm.
This model has 20 contacts arranged in a single row.
It supports a current rating of 500mA and a voltage rating of 50V ac.
The contact material is phosphor bronze with tin over nickel plating, while the housing is made of polyamide.
This connector is designed for surface mount applications.
It operates reliably within a temperature range from -40°C to 105°C.
The termination type is ZIF (Zero Insertion Force) bottom contact.
It is suitable for connections to small displays, keyboards, and other compact devices requiring secure flexible cable connections.
The hinged flip-lock actuator securely locks the flat flexible cable (FFC or FPC) into place, enhancing connection security and vibration resistance.
The connector features a horizontal orientation.
This connector features a ZIF insertion force, which minimizes damage to FPC/FFC cables during assembly.
The country of origin for this connector is China.
