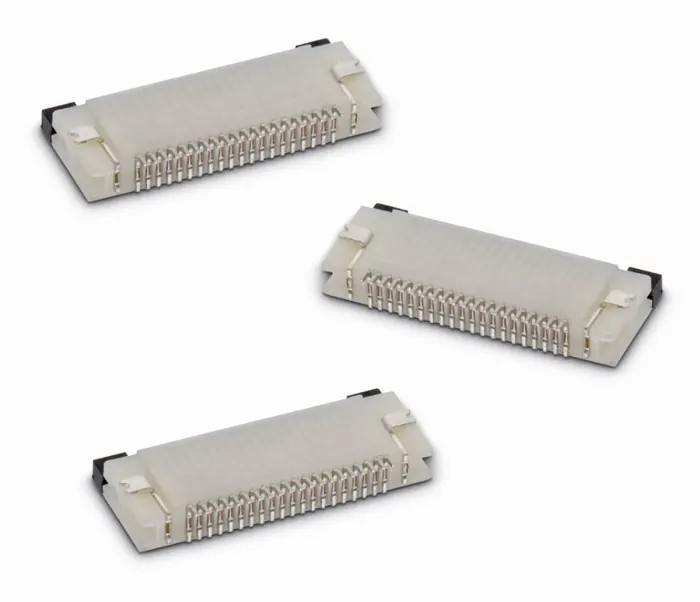

Wurth Elektronik WR-FPC 0.5 mm Pitch 14 Way Horizontal Female FPC Connector Solder 687114149022

Wurth Elektronik 687114149022 is a 0.5 mm pitch FPC (Flexible Printed Circuit) connector designed for high-density electronic assemblies. This 14 way horizontal female connector uses a bottom contact configuration with a hinged flip-lock actuator providing Zero Insertion Force (ZIF) for easy cable insertion and secure fastening.

The surface mount connector is constructed with phosphor bronze contacts plated with tin over nickel, and a durable polyamide housing, ensuring reliability and durability in demanding environments. Rated for 500mA current and 50V ac voltage, it supports electronic applications requiring sturdy electrical performance.

This connector accommodates a single row of contacts and integrates a solder retention feature to maintain position integrity during the PCB soldering process. It operates reliably within a temperature range from -40°C up to 105°C, making it suitable for industrial, telecommunications, consumer electronics, and computer interface applications.

The compact and low profile design optimizes space-saving in miniaturized circuit boards and is often used where connection to small displays, keyboards, or other compact electronic modules is required. The hinged flip-lock actuator enhances connection security between the FPC cable and the connector terminals.

This connector features a 14 contact count for flexible PCB interconnections. Phosphor bronze contact material with tin over nickel plating improves conductivity and corrosion resistance. The housing is high-grade polyamide to withstand environmental stress.

Zero Insertion Force (ZIF) flip-lock actuator reduces cable wear and insertion force. Designed for operation from -40°C to 105°C, suitable for varied industrial uses.

Wurth Elektronik's WR-FPC series caters to electronic assemblies requiring secure, reliable, and space-efficient connector solutions. This product is suitable for usage in industrial automation, telecommunications equipment, and consumer electronics requiring flexible cable connections to PCBs. Browse the full range of FPC Connectors on EnvMart to find compatible components for your electronic design needs.
