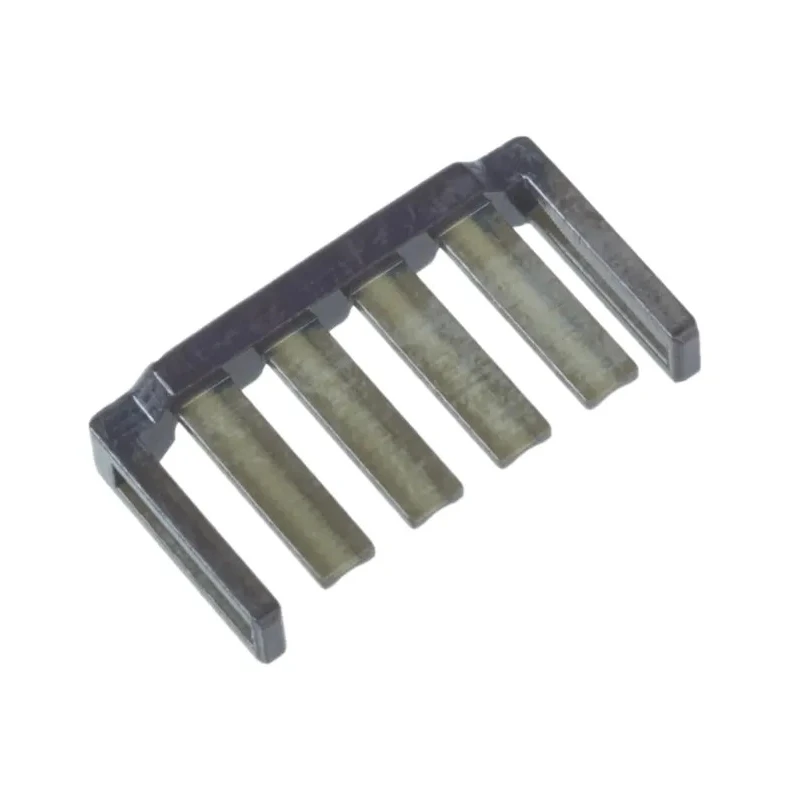

Molex Nano-Fit 2.5 mm Terminal Position Assurance Connector for Series 105307 and 105308 Receptacle 105325-2004
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Series | 105325 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Series OF 105307 AND 105308 (RECEPTACLE) |
Key Features
- Ensures full seating of crimp terminals in Nano-Fit crimp housings.
- Prevents terminal backout in electrical connections.
- Maintains contact retention even if main housing retention fails.
- Operates reliably within a temperature range of -40°C to 105°C.
- Complies with ELV Directive 2000/53/EC, RoHS Directive 2011/65/EU, and UL-94V-0 standards.
- Compact 2.5 mm Nano-Fit wire-to-board connector system.
- Suitable for use in electronic component assemblies and power connectors.
- Manufactured in China under strict quality controls.
Product Description
Molex 105325-2004 Terminal Position Assurance (TPA) Connector is specifically engineered for the Nano-Fit 2.5 mm wire-to-board connector systems. This TPA retains crimp terminals securely within the Series 105307 and 105308 receptacle housings, preventing terminal backout and ensuring a reliable and stable electrical connection.
The TPA serves as a secondary locking mechanism, maintaining the position of the terminals even if the primary housing retention feature fails, enhancing the safety and durability of your electronic assemblies.
This component is designed for industrial applications including electronics manufacturing, power connectors, and PCB connector assemblies. It supports operation within a broad temperature range from -40°C to 105°C, suitable for various environmental conditions.
Compliance with ELV Directive 2000/53/EC, RoHS Directive 2011/65/EU, and UL-94V-0 ensures environmental standards and flame retardancy, making it suitable for high-quality industrial applications and electronic component manufacturing.
Ensures full seating of crimp terminals in Nano-Fit crimp housings. Prevents terminal backout in electrical connections. Secondary locking for enhanced contact retention reliability. Wide temperature operating range from -40°C to 105°C.
RoHS compliant and flame retardant per UL-94V-0 standard. Compact and precise 2.5 mm pitch suitable for wire-to-board connectors. Manufactured under strict quality standards in China. Ideal for use in electronics, industrial automation, and power connector assemblies.
Explore the extensive Molex range of connectors and related products on EnvMart for reliable industrial and electronic solutions.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably within a temperature range of -40°C to 105°C.
It is designed for use with the Series 105307 and 105308 receptacle housings.
The Terminal Position Assurance (TPA) feature ensures full seating of crimp terminals in the Nano-Fit crimp housings and prevents terminal backout in electrical connections.
It complies with the ELV Directive 2000/53/EC, RoHS Directive 2011/65/EU, and UL-94V-0 standards.
This connector has a compact pitch size of 2.5 mm, suitable for wire-to-board applications.
The specific materials used in the construction are not detailed in the provided information.
The TPA serves as a secondary locking mechanism, maintaining terminal position even if the primary housing retention fails, thus enhancing reliability.
It is manufactured in China under strict quality controls.
This model is suitable for use in electronic component assemblies and power connectors, particularly in industrial applications.
The series designation for this connector is 105325.
The compact design allows for efficient use in space-constrained applications, particularly in PCB connector assemblies.
Key features include preventing terminal backout, maintaining contact retention, and operating within a wide temperature range.
