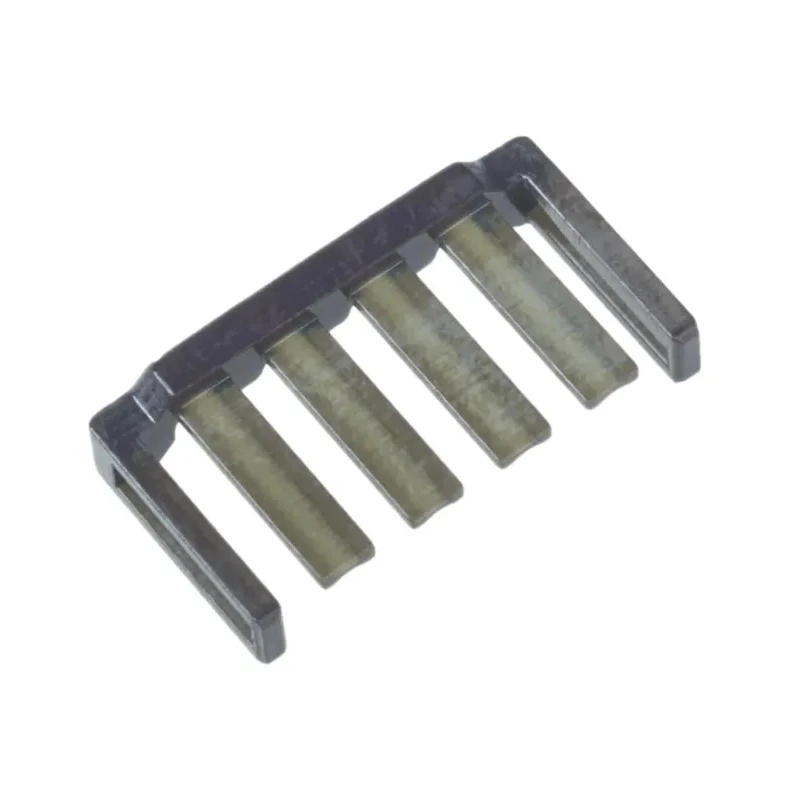

Molex Terminal Position Assurance for 105307 and 105308 Nano-Fit TPA Receptacle Housing Series 105325 105325-2003
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Series | 105325 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | 105307 Nano-Fit TPA Receptacle Housing, 105308 Nano-Fit TPA Receptacle Housing |
| Standards/Approvals | RoHS DIRECTIVE 2011/65/EU AND ELV DIRECTIVE 2000/53/EC |
Key Features
- Ensures full seating of crimp terminals in the Nano-Fit crimp housings.
- Prevents terminal backout even if main retention feature fails.
- Suitable for operating temperatures ranging from -40°C to 105°C.
- Complies with RoHS Directive 2011/65/EU and ELV Directive 2000/53/EC standards.
- Manufactured in China with high-quality materials for reliable performance.
- Compatible with Molex 2.5 mm Nano-Fit Wire to Board connector systems.
Product Description
Molex 105325-2003 Terminal Position Assurance (TPA) is engineered to enhance the reliability of Molex 2.5 mm Nano-Fit Wire to Board Connector Systems. It provides a secondary locking mechanism for crimp terminals ensuring they remain fully seated in the 105307 and 105308 Nano-Fit TPA Receptacle Housings.
Designed to prevent terminal backout, the TPA retainer continues to secure contacts even in cases where the primary retention in the housing fails, thus maintaining electrical integrity and safety.
The product supports a wide temperature operating range from a minimum of -40°C up to a maximum of 105°C, suitable for various industrial and electronic applications requiring robust terminal connections under varying environmental conditions.
Compliant with RoHS Directive 2011/65/EU and ELV Directive 2000/53/EC, the Molex 105325 Series Terminal Position Assurance meets industry standards for environmental safety and electrical performance, making it ideal for use in manufacturing, electronics assembly, and repair workflows.
Ensures full seating of terminals within Nano-Fit housings for secure connections. Maintains contact retention even when the housing's primary retention fails. Wide operating temperature range from -40°C to 105°C for versatile use.
Meets RoHS and ELV directives for compliance and safety. Manufactured in China with precision engineering for durability.
This terminal position assurance part is essential for industrial, laboratory, and commercial electronics applications where connection reliability and safety are paramount. Its integration with Molex’s Nano-Fit series connectors ensures enhancements in assembly integrity and reduces the risk of electrical failures.
Explore more products in Crimp Contacts and PCB Connectors & Wire Housings categories on EnvMart for comprehensive electronic component solutions.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a temperature range from -40°C to 105°C, making it suitable for various industrial and electronic applications.
This terminal position assurance is designed for use with the 105307 and 105308 Nano-Fit TPA Receptacle Housings.
It complies with RoHS Directive 2011/65/EU and ELV Directive 2000/53/EC, ensuring adherence to environmental safety standards.
Its primary function is to provide a secondary locking mechanism for crimp terminals, ensuring they remain fully seated in the housing and preventing terminal backout.
This terminal position assurance is manufactured in China.
It belongs to the Molex 105325 series.
It maintains contact retention even if the primary retention feature in the housing fails, thus enhancing the reliability of electrical connections.
It is suitable for industrial, laboratory, and commercial electronics applications where connection reliability and safety are crucial.
The TPA ensures full seating of crimp terminals within the Nano-Fit housings, securing connections and maintaining electrical integrity.
The product is manufactured with high-quality materials, although specific material details are not provided.
Yes, its wide operating temperature range allows it to be used in various environmental conditions, ensuring reliable performance.
The TPA provides a secondary locking mechanism that secures the contacts, preventing them from backing out even if the primary retention fails.
